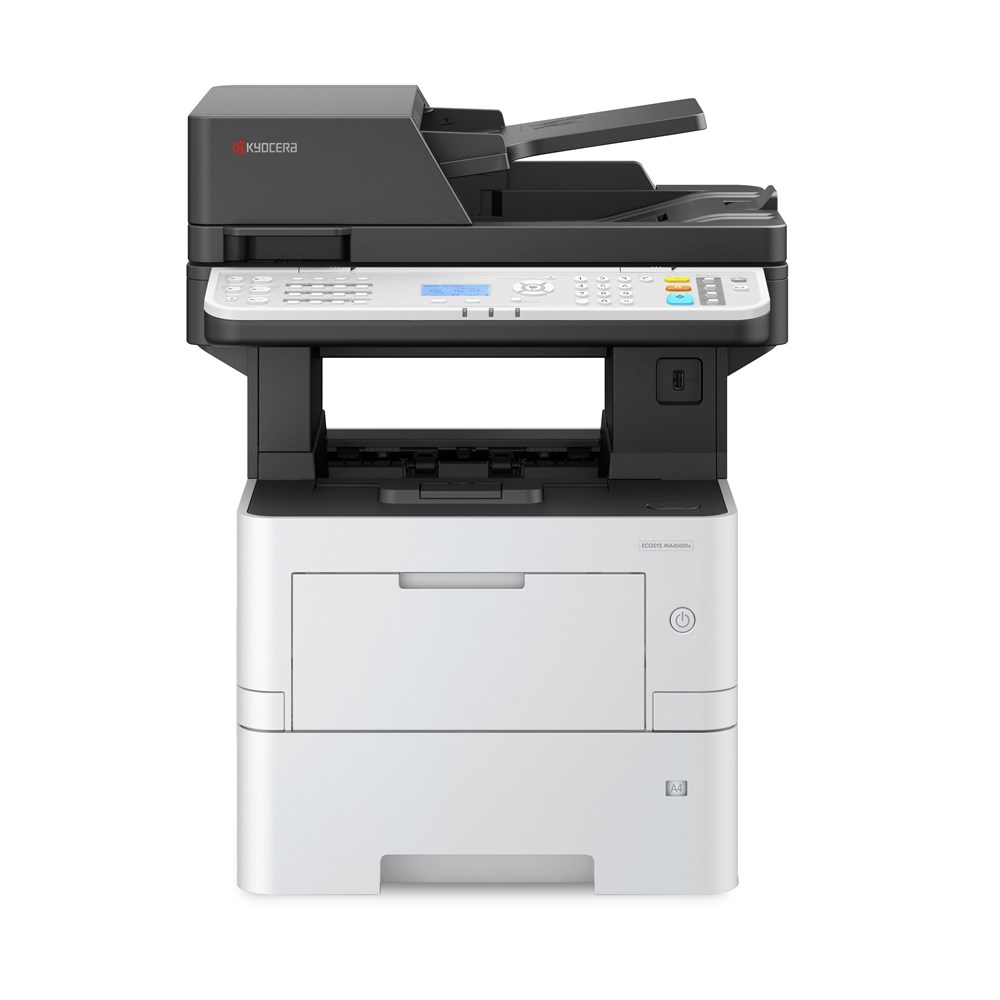

The ECOSYS MA4500fx is a powerful multifunctional device embedded with high-level security features. The rapid speed of up to 45 pages per minute contributes to the enhanced productivity of workgroups. In addition, it delivers exceptionally low running costs.
- Double sided print, copy, scan and fax
- Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3

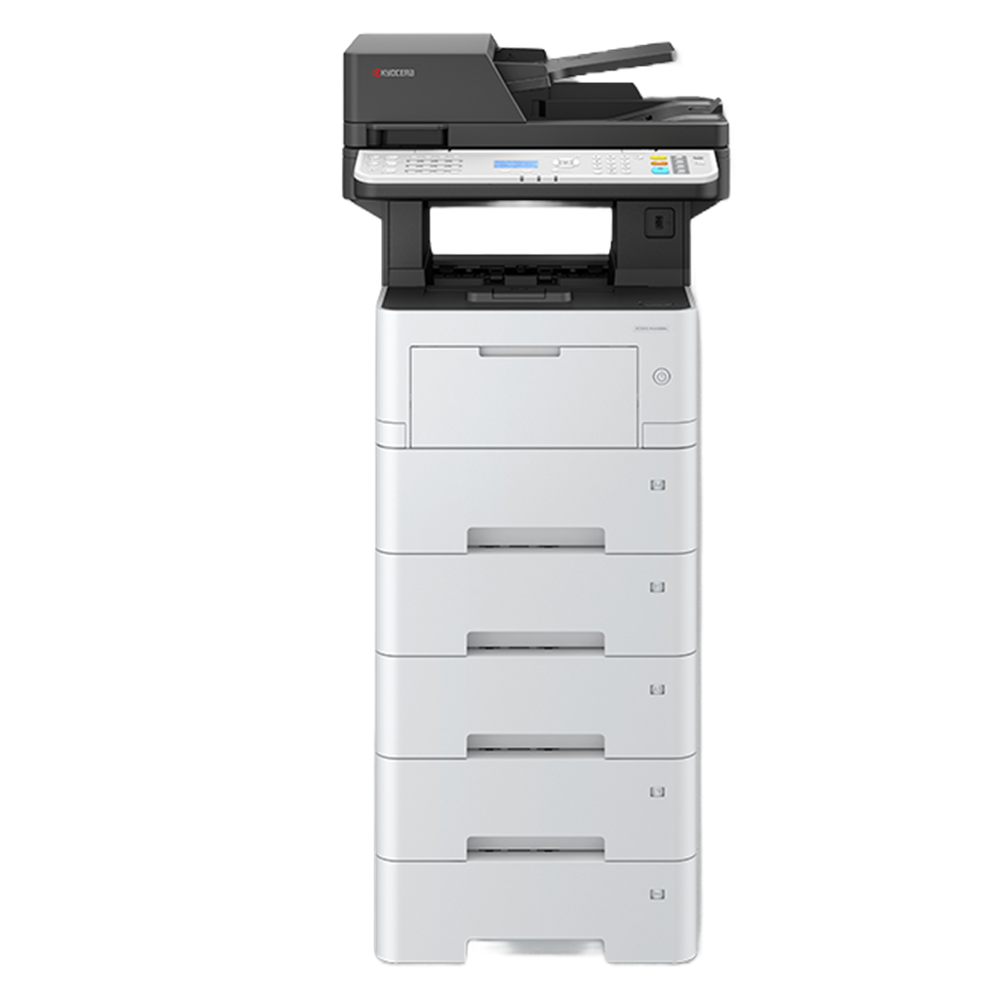

- Up to 6 ways of paper input for max. 2,600 sheet capacity
- Strengthened affinity with Microsoft Universal Print
- Optional SSD hard disk with Data Security Kit
|
|
|
|
|
|
Engine speed
|
Resolution
|
Dimensions (W x D x H)
|
Warranty
|
|
Up to 45 pages A4 per minute. Duplex print speed: 22.5 page per minute, A4. Duplex copy speed: 22.5 page per minute, A4.
|
1200 x 1200 dpi (print), 600 x 600 dpi (scan/copy)
|
475 x 476 x 575 mm
|
2 years On-Site as standard
|
ECOSYS makes your office more sustainable and efficient
Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.
Driving efficiency through sustainability
The ECOSYS range provides new meaning to sustainability & product development, focusing on the environment through its approach.
Powerful, reliable and economical
For a printer that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution
Unique to Kyocera, ECOSYS provides long-last and environmentally friendly printers at an economical cost.
Main Specifications
General type
Monochrome multifunctional for A4 format
Engine speed
Up to 45 pages A4 per minute. Duplex print speed: 22.5 page per minute, A4. Duplex copy speed: 22.5 page per minute, A4.
Warm-up time
Approx. 16 seconds or less
Power consumption
Printing: 594.1 W, Copying: 606 Ready mode: 55.9 W, Low power mode: 38.3 W, Sleep mode: 0.6 W
Warranty
2 years On-Site as standard
PAPER HANDLING
Input capacity
Multi-purpose tray: 100 sheets, 60 to 220 g/m², A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 140 to 216 x 356 mm), Banner paper up to 915 mm. Standard universal paper cassette: 500 sheet, 60–120 g/m², A4, A5, B5, Letter, Legal, Folio, Custom (140 x 210 to 216 x 356 mm).
Max. input capacity with options
2,600 sheets
Duplex unit
Standard duplex unit, 60 to 120 g/m², A4, A5, B5, Letter, Legal, Custom (140x 210 mm - 216 x 356 mm).
Output capacity
250-sheet-face-down with paper full sensor
Document processor
Reverse Auto Document Processor as standard, 75 sheets, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm).
PRINT
Processor
ARM Cortex-A53 Dual core 1.4GHz
Fonts
93 outline fonts (PCL6, KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
PDF Direct Print, Internet printing IPP 1.0, E-mail printing, WSD print, secure printing IPP over TLS, Local and network authentication, Network data encryption IPsec, HTTPS, LDAP over TLS, SNMPv3, SMTP over TLS, POP over TLS, Encrypted PDF Direct Print, TLS 1.3, Secure Boot, Run-time Integrity Check, Microsoft Universal Print, Printing for Chrome OS
Applicable OS (Print)
All current Windows operating systems, MAC OS X Version 10.9 or higher, Chrome OS, Linux, as well as other operating systems on request
COPY
Copy Max. original size
A4 / Legal
Continuous copy
1 - 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
7 Reductions/5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Chart/Map, Printed document
Digital features
Electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page, Skip Line
SCAN
Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN , WIA , WSD scan, Chrome OS (Scan), AirPrint, Mopria
Scan speed
Simplex: 60 ipm (300 dpi, A4, b/w), 40 ipm (300 dpi, A4, colour). Duplex: 26 ipm (300 dpi, A4, b/w), 17 ipm (300 dpi, A4, colour).
Scan features
Banner Scan, Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Scan resolution
600, 400, 300, 200 dpi, 256 greyscales per colour
Max. scan size
A4 / Legal
Scan File type
File type TIFF, JPEG, XPS, Open XPS, PDF, PDF/A, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF, High compression PDF, MS Office file and Searchable PDF (optional Scan Extension Kit(A) is required)
Original recognition
Text, photo, text + photo, light text, optimised for OCR
FAX
Compatibility
Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.0 seconds/sheet or less
Scanning density
Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi), Halftone: 256 grey scales
Fax Max. Original size
A4 / Legal
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast
CONSUMABLES
TK-3404
Microfine toner for 12,500 pages A4. Average continuous toner yield in accordance with ISO/IEC 19752
