Bright, Efficient, and Flexible Performance

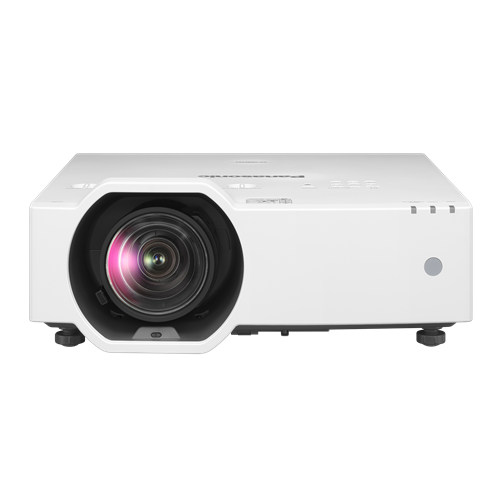

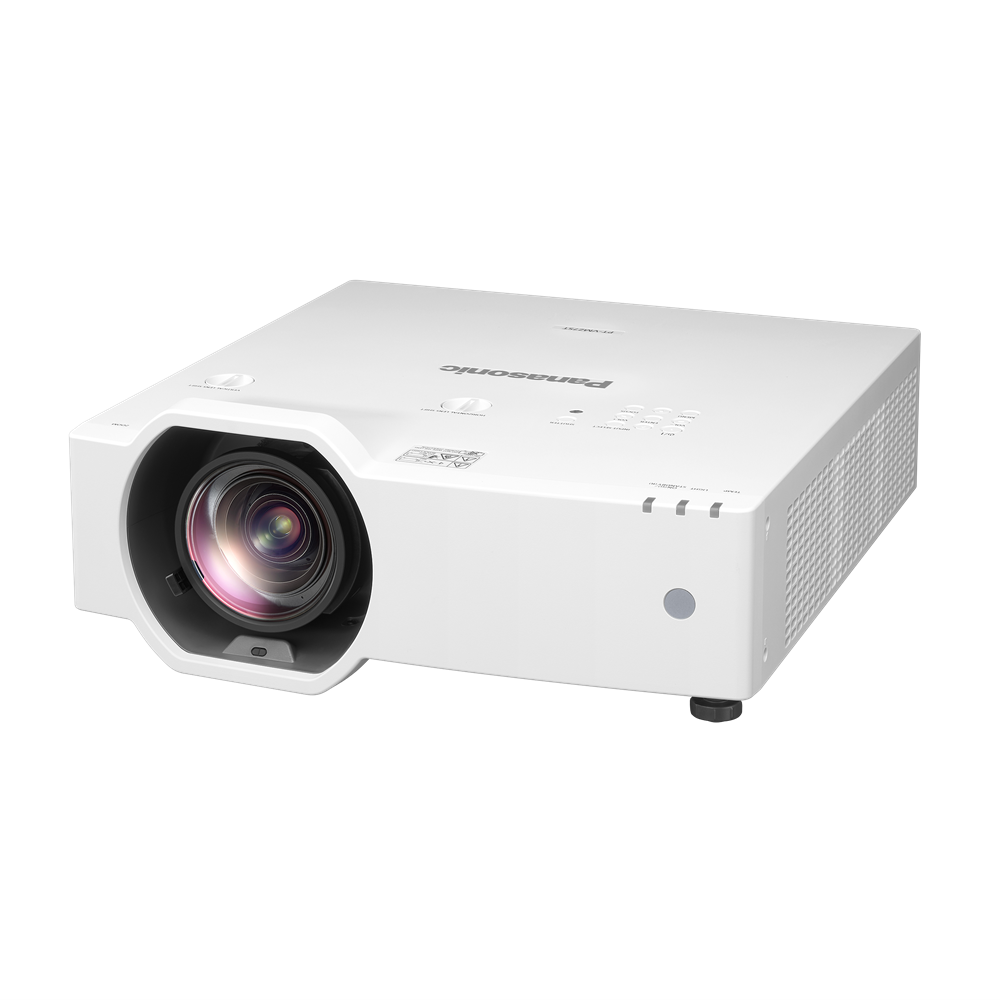

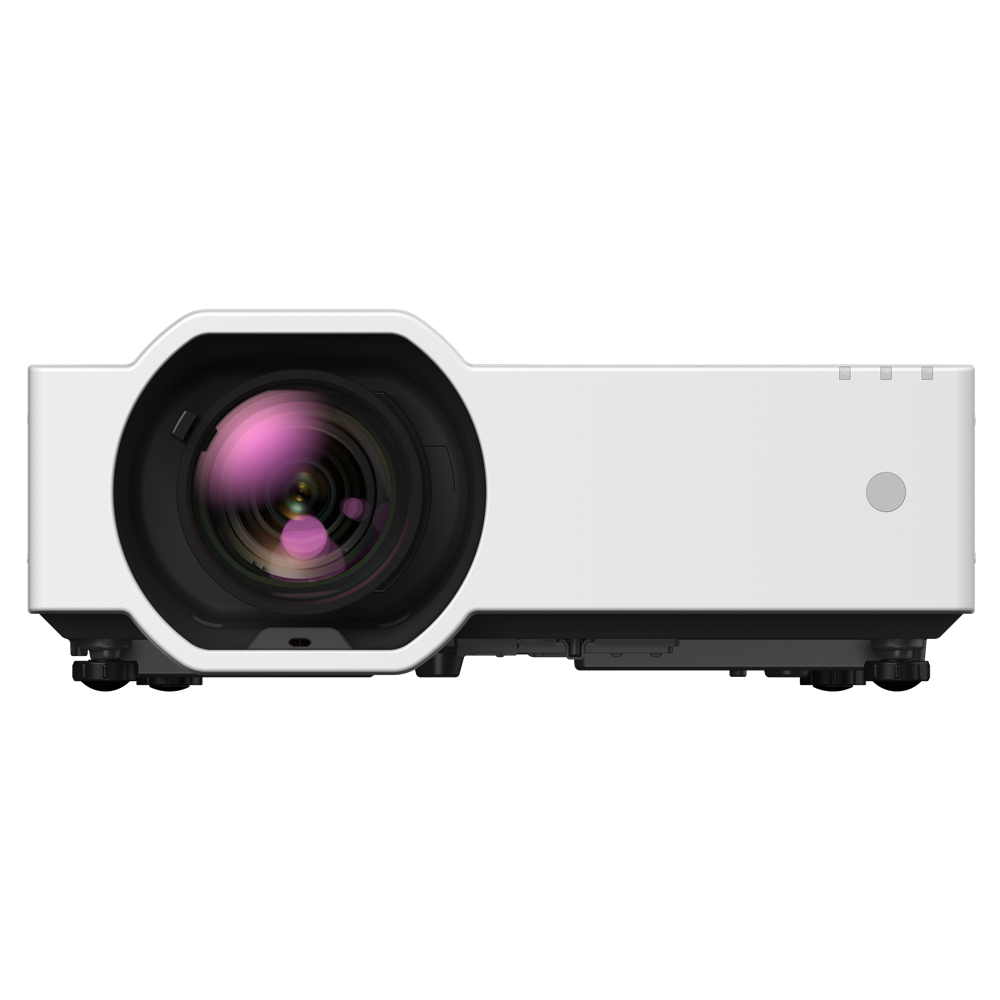

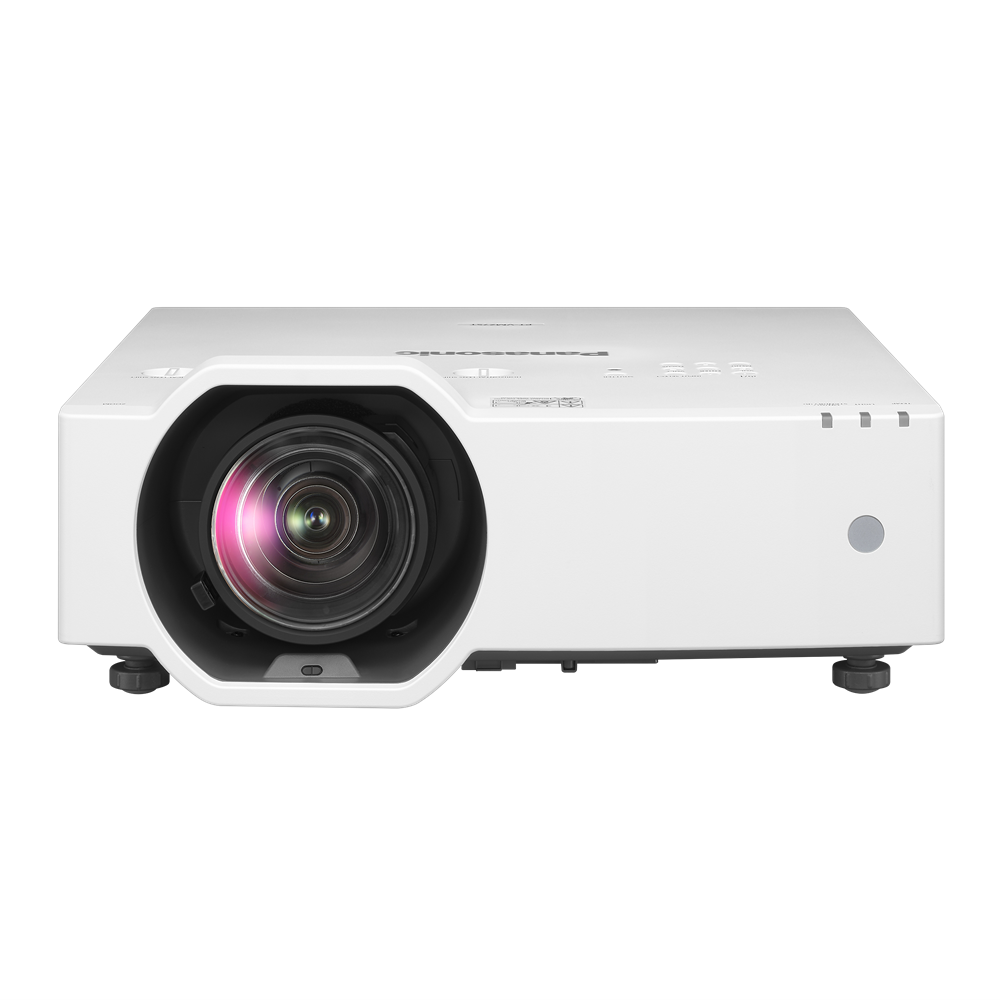

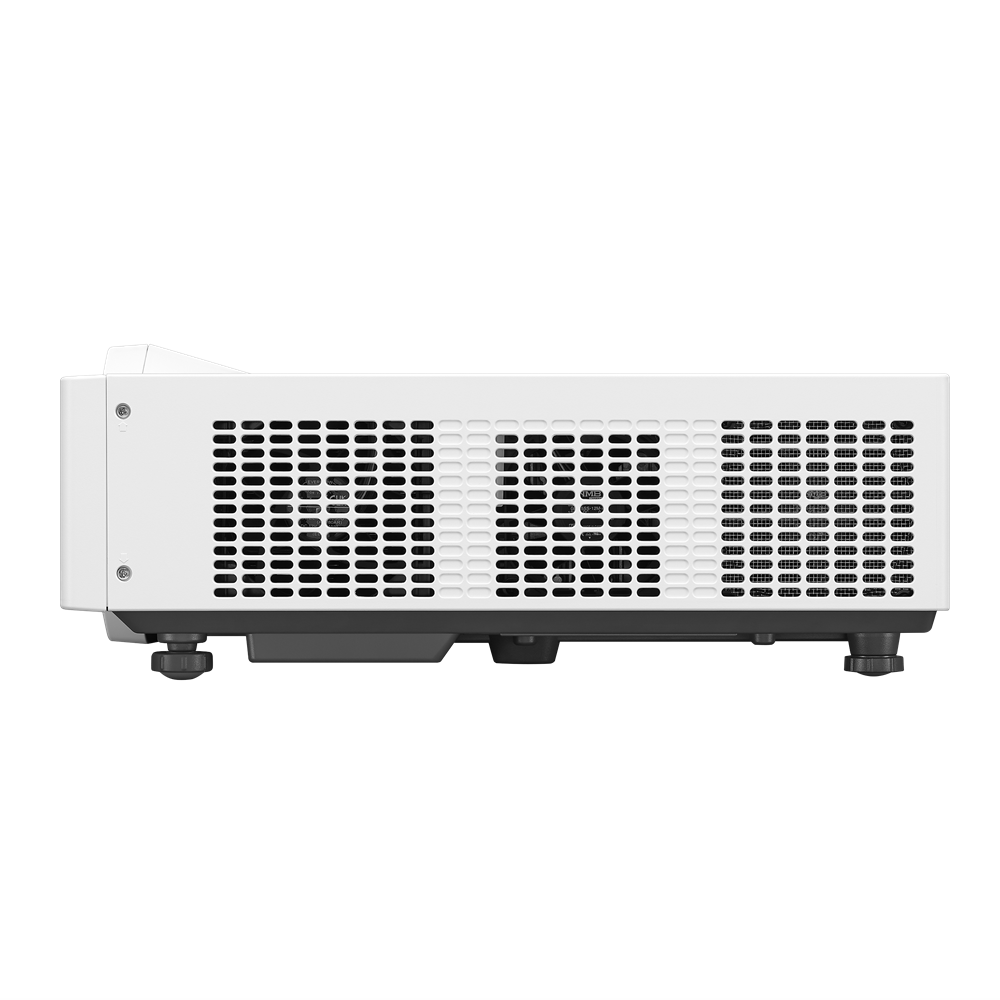

Discover the VMZ7ST Series: compact, eco-friendly short-throw projectors to fit diverse applications, from offices and classrooms to golf simulators and digital museums. Delivering vivid, shadow-free visuals up to 300 inches, its high brightness and brilliant colors bring content to life. With resource-friendly features, the series integrates into any layout, exceeding your expectations for stable, efficient, and reliable long-term operation.
Stress-free Installation Adapts to Various Layouts
Short-Throw Lens with Powered Focus via Remote Control
Unlock stunning visuals in compact spaces. The VMZ7ST Series’ 0.797–1.01:1 throw ratio projects large images up to 300 inches (16:10) while minimizing shadows from presenters or guests. Powered focus offers swift adjustment via remote control without the hassle of manual adjustment in hard-to-reach locations.
Installation Freedom: 1.2x Optical Zoom and Wide-Range Shift
Enjoy greater installation flexibility with the built-in 1.2x optical zoom, which makes it easier to avoid ceiling obstructions. The projector offers +50% vertical and ±20% horizontal lens shift, accommodating off-axis or high mounting positions while maintaining image geometry. This adaptability is ideal for challenging layouts where the optimal projector position isn’t available.
Digital Zoom Extender: Installation Freedom for Any Layout
Aligning the projection angle with the design simulation can be challenging and usually requires two people. The VMZ7ST Series features a built-in gyro sensor that detects changes in the projector’s pitch and roll angles, which are graphically displayed in the OSD menu. Installers can adjust the projection angle without needing assistance.
Note: The displayed values are based on the results of angle sensor detection and may differ from the actual projection angle. They are for reference only, and accuracy is not guaranteed.
Quickly Find the Projection Angle with Angle Monitor
Aligning the projection angle with the design simulation can be challenging and usually requires two people. The VMZ7ST Series features a built-in angle sensor that detects changes in the projector’s pitch and roll angles, which are graphically displayed in the OSD settings menu. Installers can adjust the projection angle without needing assistance.
Upgraded Screen Adjustment with New GUI
The VMZ7ST Series introduces an upgraded Screen Adjustment suite with an intuitive new Graphical User Interface (GUI). Designed to simplify setup in various spaces—including curved screens—the GUI streamlines adjustments via remote control without the need for a connected PC, making installation faster, easier, and more flexible than ever.
Precise Line Adjustment via Grid Function
Grid function enables correction of minor distortion by adjusting horizontal or vertical lines on a fixed 11 x 17 grid. Correction is easily performed via remote control.
Note: Remote control pictured is for illustrative purposes only.
Enhanced Curved Screen Correction
Curved Correction now allows each side of the image to be adjusted independently—unlike previous models, where opposite sides moved in tandem. This added flexibility supports more accurate correction on curved surfaces, ideal for sports simulators, museum exhibits, and corporate displays.
6-Point Screen Adjustment System for Corner Projection
For corner-based or column projections, the 6-Point Screen Adjustment system enables fine-tuned control over image geometry. It’s ideal for maximizing screen use in compact meeting spaces or creating striking visual installations in galleries and showrooms.
Independent 4-Corner Adjustment
Correct trapezoidal distortion from off-center or angled projector placement. 4-Corner Adjustment lets users independently control each image corner via remote control. Settings can be saved and reapplied, streamlining setup across multiple rooms or sessions.
Maintain Aspect Ratio for Natural Scaling
Maintain Aspect Ratio preserves the image’s proportions during adjustment, preventing warping or stretching. It ensures content looks natural while still allowing for edge-to-edge alignment, providing a clean, professional finish in any space.
Single-Cable 4K DIGITAL LINK Solution
4K DIGITAL LINK is a connection based on HDBaseT™ that supports long-distance video, audio, andcontrol-signal transmission via a single CAT 5e LAN cable, reducing installation complexity in schools, offices, and entertainment spaces.
Note: 4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YPBPR 4:2:0 format only for 4K/30p input via DIGITAL LINK.
Accepts 4K Signals via HDMI™ and DIGITAL LINK
The VMZ7ST Series accepts 4K1 video signals via DIGITAL LINK and HDMI™ terminals, simplifying projector integration into your existing infrastructure. This capability enables 4K1 signal transmission to display endpoints with varying screen resolutions, eliminating the need for external converters or content re-encoding.
1 4K input signals are converted to the projector’s resolution (1920 x 1200 pixels) upon projection. YPBPR 4:2:0 format only for 4K/30p signals input via DIGITAL LINK.
Supports Next-Generation Control Protocols
Dedicated LAN terminal and DIGITAL LINK connections support the latest protocols, including IPv6, Art-Net DMX, PJLink™ (Class 2), Crestron Connected® V2, Crestron® XiO Cloud, and Extron XTP®. The projector also includes an emulation function to ensure compatibility with legacy management software.
Note: The optional AJ-WM50 Series Wireless Module does not support IPv6.
Data Cloning Function via LAN or USB Memory Devices
Adjusting each projector in your fleet can be time-consuming. To expedite this task, the VMZ7ST Series features a data cloning function that allows main projector settings, including saved adjustment data, to be copied to sub-projectors via LAN or USB flash memory device.
Note: Supported on identical models only. Excludes passwords, projector name/ID, time, date, time zone, and network settings. Data can be copied to a maximum of 99 sub-projectors via LAN.
Project Wirelessly from Your Smartphone or Laptop
Share content wirelessly1 from your laptop or smartphone. Just scan the QR code shown in the on-screen display menu using your smartphone’s camera, and your device will connect to the projector automatically over wireless LAN, with no SSID or passwords required. Use free Panasonic wireless apps2 to beam your media to the big screen.
1 Requires the optional AJ-WM50 Series Wireless Module (sold separately). Product availability may vary by country or region.
2 Free software is available for Windows® PC here. Wireless Projector app is available from the App Store or the Google Play store. Please check the compatibility of your device before installation.
Share Seamlessly with PressIT
Share your device screen wirelessly and switch presenters freely. PressIT, Panasonic’s optional Wireless Presentation System, supports screen-sharing at the press of a button. PressIT comprises transmitters connected to your devices1 and a receiver connected to the projector. For neat installation, power is supplied via the projector’s DC 5 V/2 A USB port. Learn more about PressIT here or visit our Wireless Solutions webpage.
Note: Wireless Presentation System PressIT is sold separately. Availability may vary by country or region.
1 USB Type-C terminal of the video output device requires support for DisplayPort™ ALT Mode (video output function) and power supply function (5 V/0.9 A). PressIT app (available free from the App Store or the Google Play store) is required when using Android™ or iOS/iPadOS devices. For more details, please refer to the operating manual.
Clear Projection in Bright Spaces
Enhance Visual Impact with Striking Graphics
The VMZ7ST Series features a high-efficiency optical engine that delivers up to 7,000 lm1 brightness, ensuring vibrant, consistently beautiful visuals even on large screens. Its 5,000,000:12 contrast ratio boosts the impact of colorful content, providing depth and dimensionality essential for an engaging viewing experience.
1 PT-VMZ7ST only. Measured when [PICTURE MODE] is set to [DYNAMIC] and[LIGHT POWER] is set to [NORMAL]. Measurement, measuring conditions, and notation method comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
2 Full On/Full Off, when [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
High 5,000,000:1 Dynamic Contrast
Input signals are analyzed frame by frame to regulate light output for best contrast performance in every scene. As well as accurately reproducing pictures that contain a mix of dark and bright hues, Dynamic Contrast is more energy efficient than other technologies and can be optimized to suit the content or the room’s lighting. The projector’s high 5,000,000:11 contrast ratio provides better detail definition in shadows with deeper blacks, brighter whites, and more natural skin tones for a better sense of depth and definition.
1 Full On/Full Off, when [RE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1]. Measurement, measuring conditions, and method of notation all comply withISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
Optimized Visuals for Bright Spaces
Daylight View Basic uses a sensor to measure ambient light levels in your space and adjusts sharpness, halftone color, contrast, and brightness to optimize image visibility regardless of room illumination. The result is a clearer, more detailed image, even in challenging conditions.
Smooth, Crisp Details at WUXGA
WUXGA (1920 x 1200) LCD panels improve detail definition for a more comfortable and insightful experience. Text edges are smooth, sharp, and easy to read, even for those seated furthest from the screen.
Vivid Green Mode for Lifelike Sports Simulation
The VMZ7ST Series introduces a new Vivid Green Mode that enhances green tones for brighter, more natural-looking images—ideal for golf and other sports simulations. By adjusting signal gain and optimizing color balance, this mode delivers deeper greens and brighter midtones for a more vivid and engaging viewing experience.
Supports Widescreen Video Content
Display widescreen content, such as 21:9 video conferencing layouts, at its original aspect ratio. Remote participants’ faces can be aligned at eye level with in-room attendees, improving communication and engagement during meetings or classes.
Note: Resolution may be reduced when projecting widescreen content at its native aspect ratio.
Quiet Operation for Hybrid Lessons and Meetings
The projector’s heat-resistant light source reduces operating noise, enhancing the clarity of conversations during in-person or hybrid lessons and meetings. In Quiet 2 Mode, operating noise is as low as 25 dB1—about as soft as the sound of rustling leaves.
1 For the PT-VMZ6ST. Please see the product specifications for noise values of other models.
