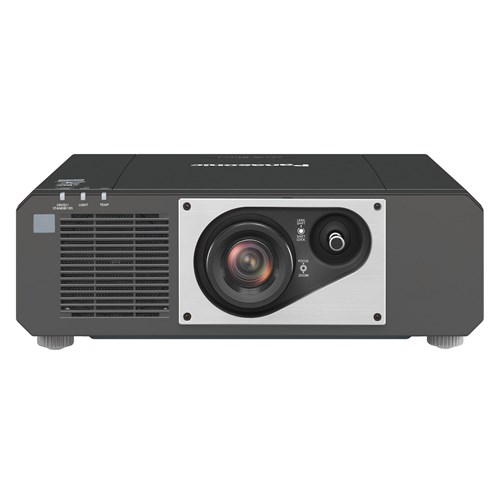

Panasonic - PA-PT-FRZ60B

Supplier Product Code:
WUXGA Solid Shine Laser Projector, 6,000 ANSI Lumens, 20,000:1, 16:10, 2x Zoom Lens, HDMI, USB Type A, Black
RRP $10,999.00 inc GST
To purchase this item, please login to your Alloys account.
  • Overview
  • Key Specifications
  • Downloads

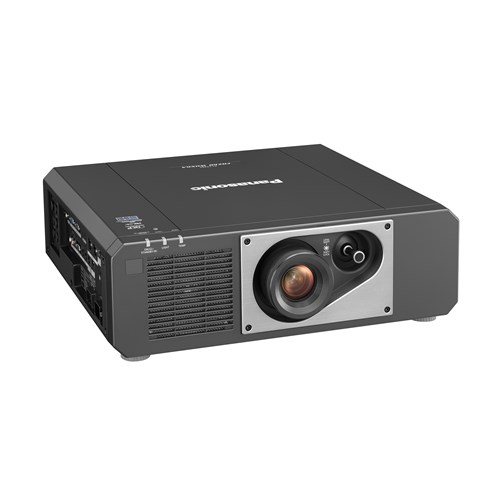

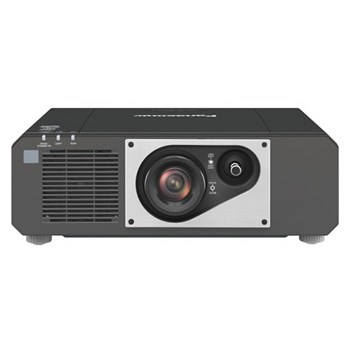

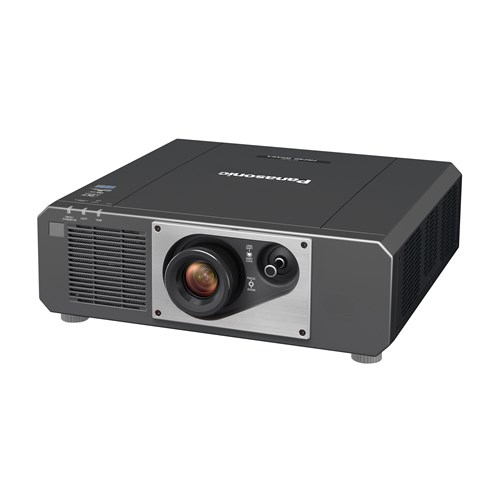

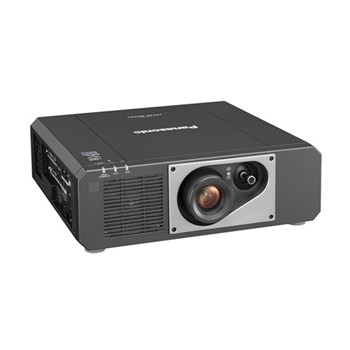

Panasonic PT-FRZ60 pumps out bright and sharp 1920x1200 resolution images at an aspect ratio of 16:10. The projector is in a completely solid state and will never require a lamp replacement. The light from its bank of blue diode lasers goes through a phosphor wheel and a colour separation wheel to create beams of yellow, blue, green and red light that are bounced off of the imaging chip and on to the output lens. Panasonic's Failover Circuitry takes advantage of the projector's multi-diode laser architecture, assuring that should one fail, the remaining diodes keep working and help maintain high brightness.

Overall, the PT-FRZ60's specifications stand out with a impressive rated output of 6,000 ISO21118 lumens (essentially equivalent to ANSI lumens) or 6,200 centre lumens. Its rated contrast ratio is 20,000:1. In real-world use, it actually put out a lot more light

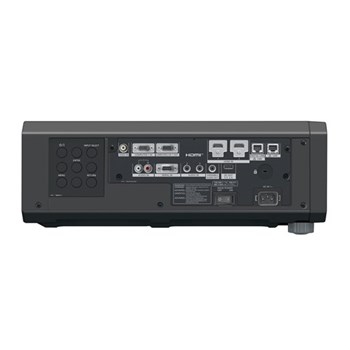

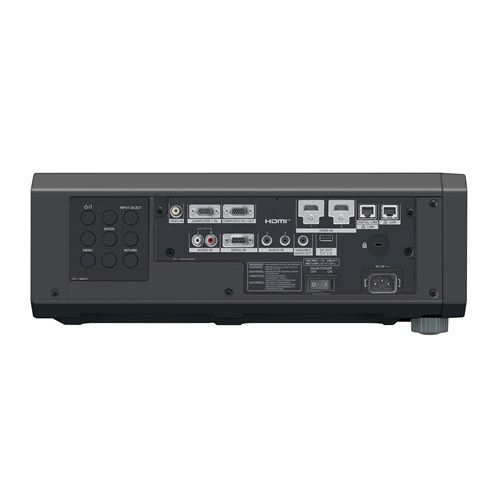

The projector is able to work with up to 4K video signals at up to 60 frames a second, which it accepts via its HDCP 2.3-compliant HDMI and DIGITAL LINK HDBaseT ports and displays at its WUXGA native resolution. The connection panel features two HDMI inputs in total, plus two VGA and a composite video input. The PT-FRZ60 is also one of the rare commercial projectors offering the option of HDMI-CEC control via its HDMI ports. There are 3.5mm and RCA audio-in jacks and a 3.5 mm audio-out; the projector lacks any internal speakers. In addition to a RS-232 serial port, the PT-FRZ60 has a Type A USB 5 volt/2-amp plug to power an accessory, though the USB doesn't support any internal media player to display content from a thumb drive or work with a mouse for streamlining navigation of the projector's menu.

  • Dynamic Contrast 2 Heightens Contrast Precision
  • Wide-Range 2.0x Zoom Lens with Lens-Shift
  • Supports 4K/60p Signal Input
  • CEC-ready HDMI Inputs and USB-DC Outlet
  • Separate LAN and DIGITAL LINK Terminals
  • Quiet 27 dB Projection Mode
  • Laser Redundancy Maintains Image Display
  • SOLID SHINE Laser for Dependably High Brightness
  • Filter less Cooling and Airtight Optical Block
  • ECO Management System
  • Edge-blending and color-matching functions
  • Compatible with Art-Net DMX, Crestron Connected™, and PJLink™
  • Technical Specifications
    Brightness 6000 Lumens
    Clear Image Size (Diagonal) 40 - 300 inches
    Contrast Ratio 20000:1
    Height 0.2900
    Keystone Adjustment Vertical: ±40 Degree, Horizontal: ±20 Degree
    Lens F = 2 - 3.4
    Lens Shift Manual V: 64 %, -44 %; Manual H: 34 %, -27 %
    Light Source Laser Diode
    Light Source Life 20000 hours
    Native Aspect Ratio 16:10
    Net Weight 16.1 kg
    Operating Temperature 0 to 45 Deg C
    Picture and Video Color Modes Picture Modes
    Power Consumption 540 Watts
    Power Supply AC 100 - 240 V, 50/60 Hz
    Projection System DLP
    Resolution Support WUXGA
    Throw Ratio 1.46 - 2.94:1
    Weight 22.0000
    Width 0.6000
    Length 0.6800
    Resolution 1920 x 1200 Pixels
    Brand Panasonic
    Dimensions 498 W x 168 H x 492 D mm
    Zoom 2.0x Manual Zoom
