Panasonic - PA-PT-VW435WB

Supplier Product Code:
PT-VW435WB
PT-VW435WB, 4300 ANSI, WXGA LCD PROJECTOR, WIRELESS & QUICK CONNECT BUNDLE
RRP $2,449.00 inc GST
To purchase this item, please login to your Alloys account.
  • Overview
  • Key Specifications
  • Downloads

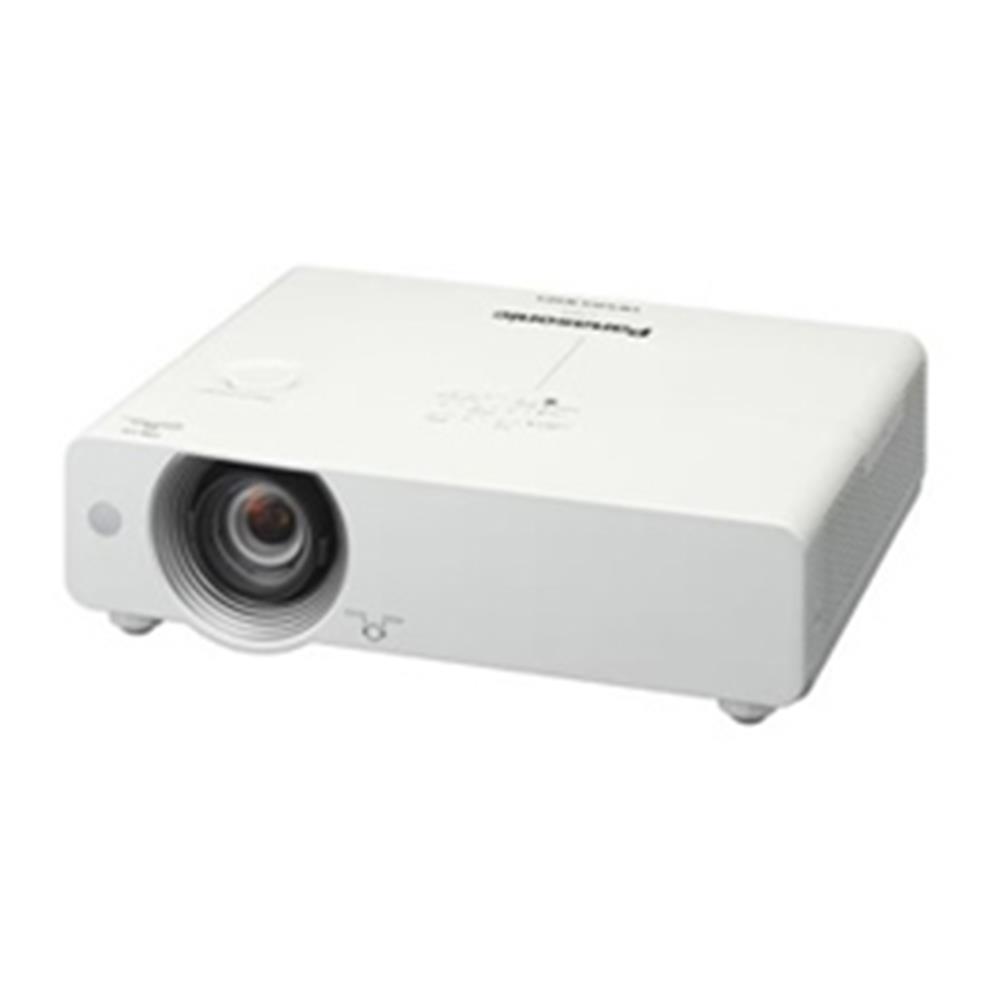

Panasonic PT-VW435WB Mid Range Data Projector

Presenting the PT-VW430 Series with its brighter and crisper projection. The Daylight View Basic function produces easy-to-see images even in bright rooms, and the new Wireless Manager ME 6.0 enables high-speed wireless projection.


Key Specifications :
  • Superb Performance in a compact body
  • Quick and Easy Wireless Projection
  • Convenient Functions for a variety of applications
  • 1.6x Zoom lens allows flexible installation
  • Lens shift moves the image vertically without distortion




Optical Specifications :
  • Lens: 1.6x manual zoom (throw ratio: 1.18-1.90:1), manual focus, F 1.60-2.12, f 15.28-24.62 mm
  • Lamp: 280 W x 1, lamp replacement cycle (lamp power: Normal/Eco): 2,500 hours/4,000 hours*2
  • Screen size (diagonal): 0.76-7.62 m (30-300 inch), 16:10 aspect ratio
  • Brightness*3: 4,300 lm (lamp power: Normal)
  • Center-to-corner uniformity*3: 85 %
  • Contrast*3: 3,500:1 (full on/full off, lamp power: Normal, Iris: On)
  • Resolution: 1,280 x 800 pixels*4
  • Optical axis shift: Vertical: +48 %
  • Keystone correction range: Vertical: ±30¡ (±20¡ when Real-Time Keystone)




General Specifications :
  • Dimensions: (W x H x D) 379 x 107 x 305 mm (14.9Ó x 4.2Ó x 12.0Ó)(with legs at shortest position, not including protruding parts)
  • Weight: Approximately 4.8 kg (10.6 lbs)
  • Power Consumption: 365 W (0.3 W when standby mode set to Eco*1,12.9 W when standby mode set to Network.)




Technical Specifications
Height 0.2570
Weight 8.0000
Width 0.5610
Length 0.4190
Connectivity HDMI
Connectivity Network
Connectivity USB
Connectivity WiFi
Resolution WxGA
Warranty 3 Year
Brand Panasonic
Lumens 2,001-5,000
Packaging Height 0.257
Packaging Length 0.419
Packaging Weight 8
Packaging Width 0.561
Projection Technology LCD
Projector Type Data Projector

Documents

Kit Components
Code
Item
Qty
PA-PT-VW435N
Panasonic - PA-PT-VW435N
1
PA-ET-UW100-B
Panasonic - PA-ET-UW100-B
1
