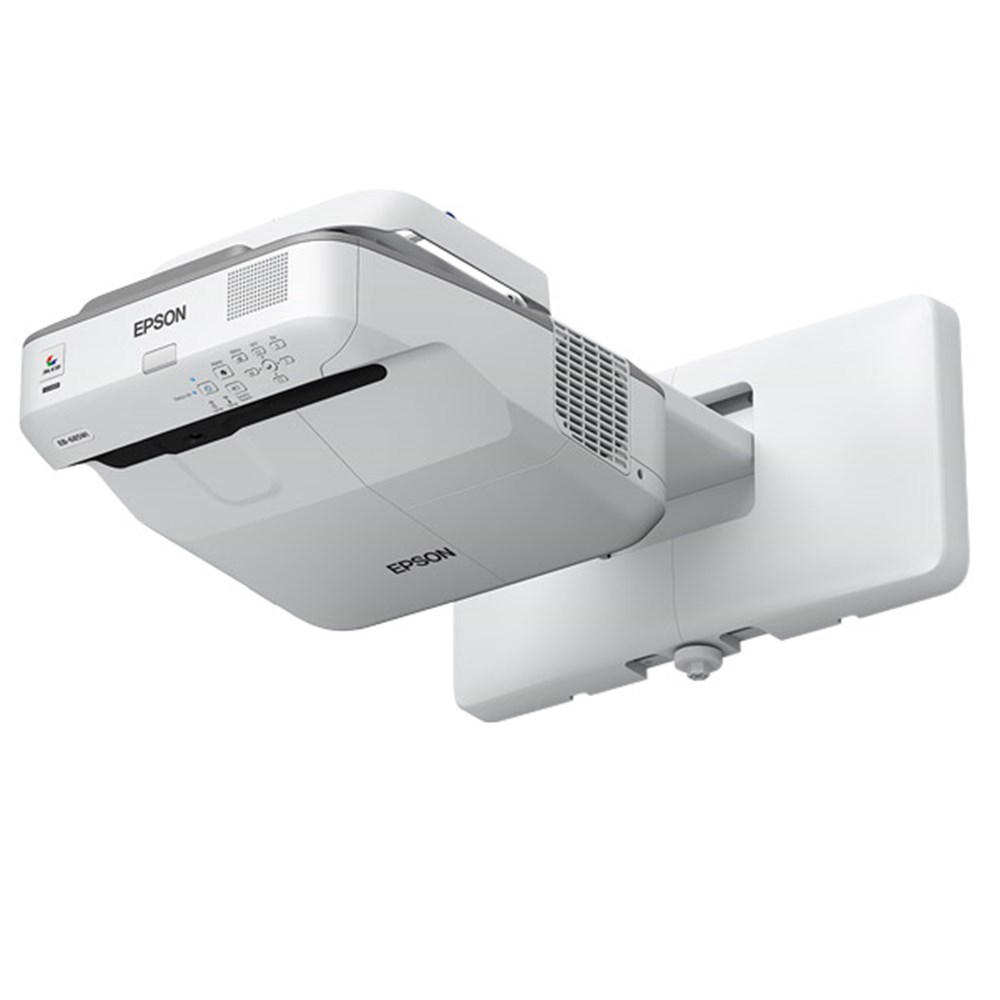

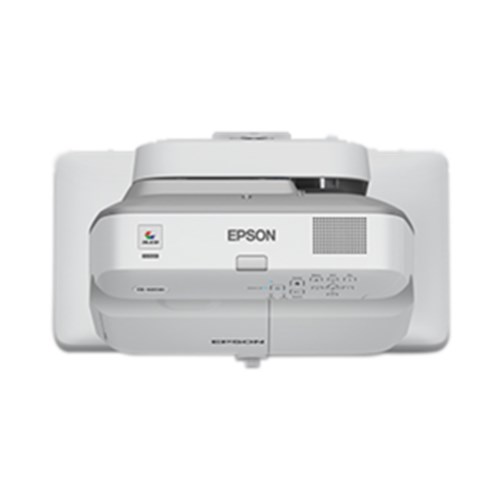

Epson - EB-685W

Supplier Product Code:
V11H744553
WXGA Ultra Short Throw HD Ready Classroom 3LCD Projector, 3500 Lumens, 14000:1, 5000 Hours Lamp, iProjection App, 3X HDMI, No Mount
RRP $2,099.00 inc GST
To purchase this item, please login to your Alloys account.
  • Overview
  • Key Specifications
  • Downloads
  • Warranty

Designed for today’s BYOD classroom, the Epson EB-600 series takes classroom collaboration further. Offering 3x Higher Colour Brightness than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. It features optional wireless functionality (module sold separately) and advanced connectivity, so teachers can easily share content from multiple student devices, including Chromebooks up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.

High-quality, bright images - Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors. Keep costs down-Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.

Enhanced learning - Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display. Optional wireless capability wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App2. Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.


  • 3 x brighter colours and reliable performance – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Bright Images – 3,500 lumens colour/white brightness
  • Amazing images – WXGA resolution (1280 x 800) and 16:10 format
  • Ultra-short throw presentation display – get a 100" image from as little as 28cm away with virtually no shadow interference
  • Simultaneously display and control multiple device screens – wirelessly share content from up to four devices2, including Chromebooks, with Moderator software (requires optional wireless module)
  • Manage your display and send announcements remotely – easy network connectivity; software included
  • Versatile connectivity – 3x HDMI® supports multiple high-definition A/V devices, with MHL® support
  • Powerful sound to engage every student – built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode
  • 10,000Hr maintenance cycle – the lamp and filter lasts up to 10,000 hours in ECO Mode
  • Technical Specifications
    Brightness 3500 Lumens
    Compatibility CEC; Document Camera
    Contrast Ratio 14000:1
    Display Color 10 Bits
    Height 0.2500
    Image Size 60 - 100 inches
    Keystone Adjustment Manual V: ± 3 Deg; Manual H:± 3 Deg
    Lens F= 1.6
    Light Source UHE Lamp
    Light Source Life Normal/Eco: 5000/10000 hours
    Light Source Wattage 250 Watt
    Native Aspect Ratio 16:10
    Net Weight 5.7 kg
    Operating Temperature 5 - 40 Deg C
    Picture and Video Color Modes Blackboard; Dynamic; Presentation; sRGB; Theatre
    Power Consumption 354 Watt, 309 Watt (economy), 0.37 Watt (standby)
    Power Supply AC 100 - 240V, 50/60 Hz
    Projection Offset 6:1
    Projection System 3LCD; RGB Liquid Crystal Shutter
    Resolution Support WXGA
    Speaker 16 Watt
    Throw Ratio 0.28 - 0.37 (Wide, Tele)
    Throw Type Ultra Short
    Vertical Scan Rate 100 - 120 Hz
    Weight 8.4800
    Width 0.4900
    Length 0.5500
    Resolution 1280 x 800 Pixels
    Brand Epson
    Dimensions 36.7 W? x 14.9 H x 40 D cm
    Interface USB 2.0; Composite in; RGB in (2x); 802.11b/g/n
    Packaging Height 0.54
    Packaging Length 0.25
    Packaging Weight 8
    Packaging Width 0.48
    Zoom Digital zoom, Factor: 1 - 1.35

    Documents

    Warranty Information
    3 Year Warranty included
