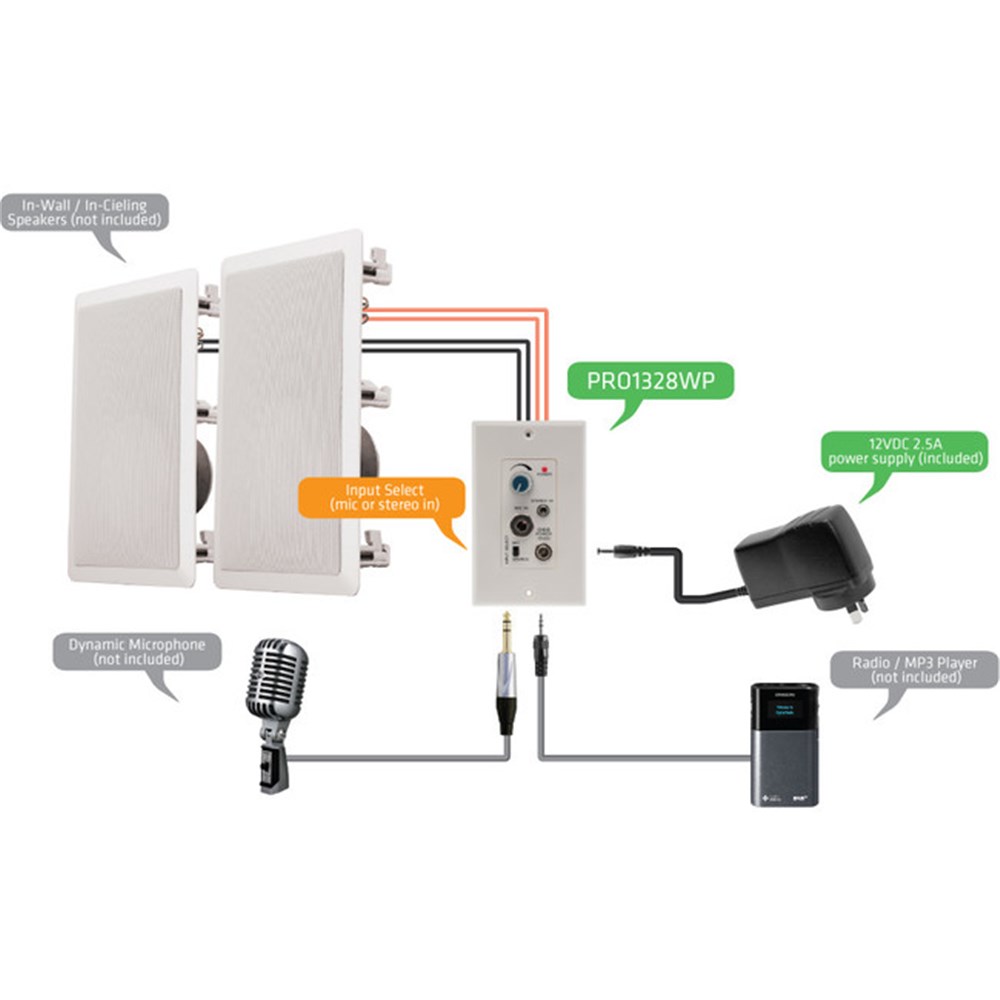

Pro2 PRO 1328WP Stereo Audio Power Amplifier Wall PlateUse the PRO1328WP to power in-ceiling speakers with the audio output from any source device such as computers, DVD players, TVs and even Microphones. Alternatively the PRO1328WP is perfect for shop display installations, where basic audio amplification and compact size is required.
Ideal For Use With :- DVD players
- TVÕs
- Indoor/Outdoor Speakers
- In-ceiling/in-wall Speakers
Key Specifications :- Switch between 3.5mm (line) or microphone inputs

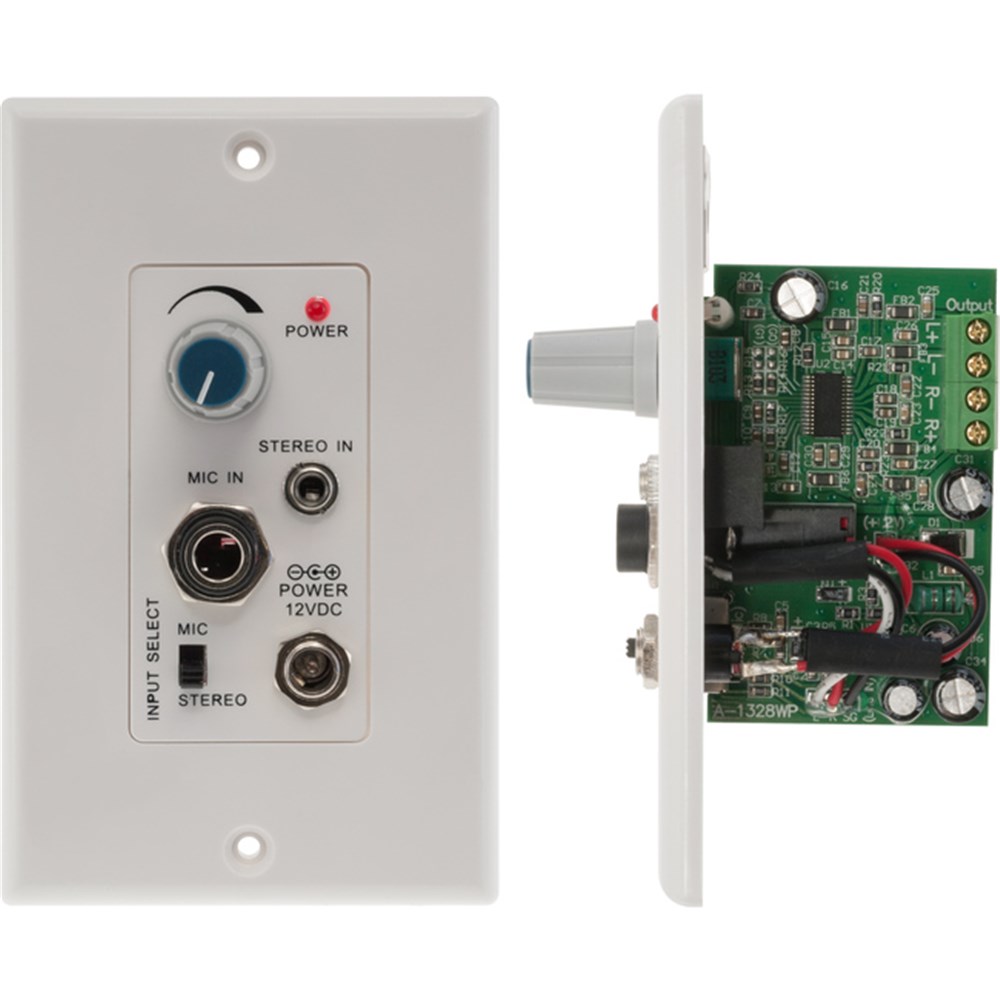

- Discrete and compact Decora-style wall-plate design
- Speaker screw terminals handle wire sizes from 24 to 12 gauge
General Specifications :- Inputs: Dynamic microphone or stereo audio line level
- Microphone pre-Amplifier gain: 40dB
- Power Amplifier Type: Stereo Class-D
- Output power: 15W(rms) per channel (@ RL=4 ohm)
- THD+N: 0.06 % (@ RL=8 ohm, f = 1 kHz)
- Minimum Load Resistance: 4 ohm
- Includes Speaker Protection circuit.
- Power Source: 12 VDC / 2A
- Size (LxWxH): 92.6mm x 73.4 mm x 26.6mm
- Net Weight (Unit only): 160 g
