Panasonic - PA-ET-D3LEW60

Supplier Product Code:
ET-D3LEW60
Standard Zoom Lens, 0.991 to 1.18:1, f= 19.6 to 23.5 mm, f/2.5, 1.18x
RRP $14,999.00 inc GST
To purchase this item, please login to your Alloys account.
  • Overview
  • Key Specifications
  • Downloads

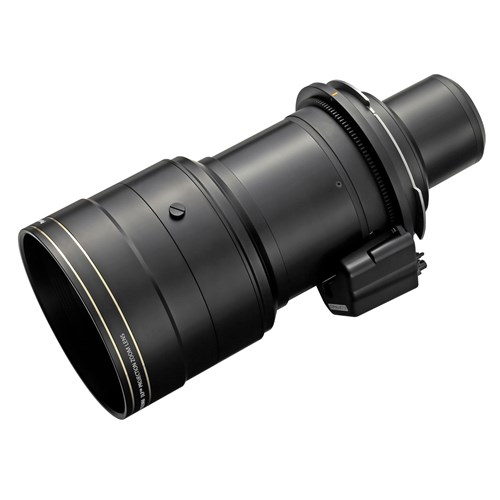

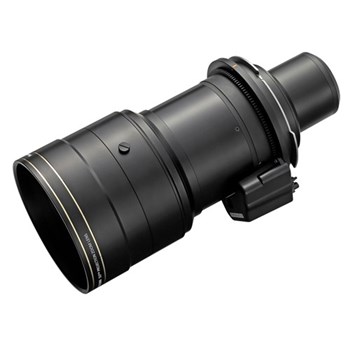

Epson Zoom lens is designed for use with select 3-chip DLP projectors, the 19.6– 23.5 mm Zoom Lens from Panasonic enables you to vary the projection distance by adjusting the focal distance. The zoom lens is equipped with an EEPROM (electronically erasable programmable read-only memory) and a stepping motor. Included with the lens is a protective lens cover. The lens makes it possible to vary the projection distance by changing the focal distance.

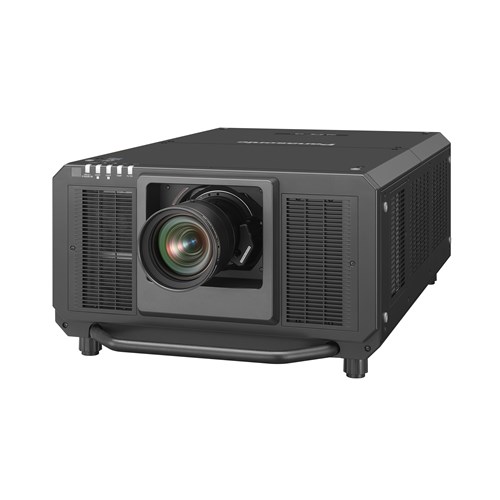

  • Compatible models : PT-RQ32K/RZ31K/RS30K/RQ22K/RZ21K/RS20K
  • Throw Ratio: 0.991-1.18:1, 0.924-1.10:1, 1.01-1.19:1
  • Dimensions (W × H × D): 160 × 160 × 357 mm
  • Technical Specifications
    Aperture f/2.5
    Compatible with PT-RQ32K/RZ21K/RZ31K/RQ22K/RQ35K/RZ34K
    Lens Type Zoom
    Projection Size 70 to 1000"
    Throw Ratio 0.991 to 1.18:1; 0.924 to 1.10:1; 1.01 - 1.19:1
    Throw Type Standard
    Zoom Ratio 1.18x
    Brand Panasonic
    Focal Length f = 19.6 to 23.5 mm
