Panasonic - PA-ET-DLE020

Supplier Product Code:
ET-DLE020
Ultra-Short-Throw Zoom Lens, 0.28 to 0.299:1, 100" to 400", f = 4.1 to 4.4 mm, f/2
RRP $14,499.00 inc GST
To purchase this item, please login to your Alloys account.
  • Overview
  • Key Specifications
  • Downloads

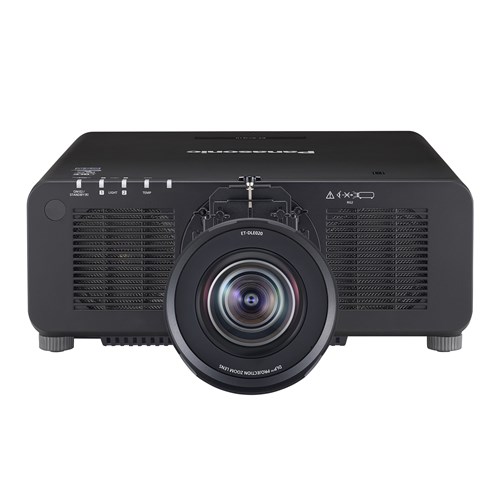

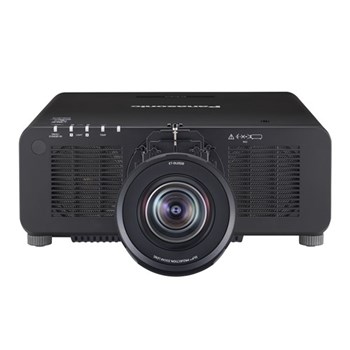

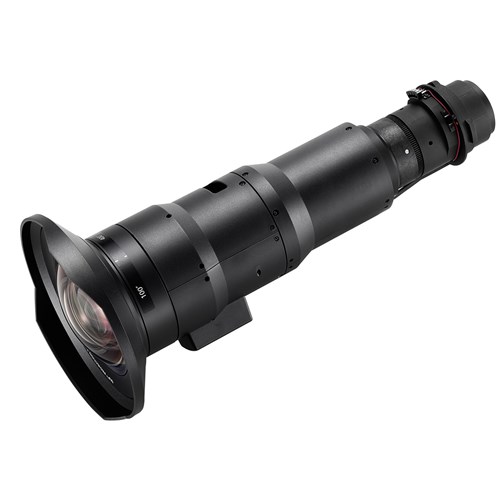

Panasonic ET-DLE020 Ultra-Short Throw Zoom Lens. It provides varying short-throw ratios depending on the resolution setting of your projector and features zoom and zero offset for flexible setup options. ET-DLE020 provides an installation margin of ±1.77" and easy image adjustment with a throw ratio of 0.28:1 with zero image offset. These features combine with the wide vertical and horizontal lens shift of compatible laser projectors to broaden your installation options, expediting setup.


  • Compatible Models: PT-RCQ10/RCQ80/RZ990/RZ890/RZ790/RZ690/RZ120/RZ970/RW930/RX110/RZ870/RZ770/RW730/RZ660/RW620
  • Enhanced Flexibility for Easy Installation
  • Reliable Design
  • On-Axis Rear Projection
  • Zero Offset and Flexible Setup for Multi-Screen Projection
  • Technical Specifications
    Aperture f/2
    Compatible with PT-RCQ10, PT-RZ990, RZ970 Series
    Lens Type Zoom
    Projection Size 100 to 400"
    Throw Ratio 0.280 to 0.299:1;0.294 to 0.314:1;0.290 to 0.309:1
    Throw Type Ultra-Short-Throw
    Brand Panasonic
    Focal Length f = 4.1 to 4.4 mm

    Documents
