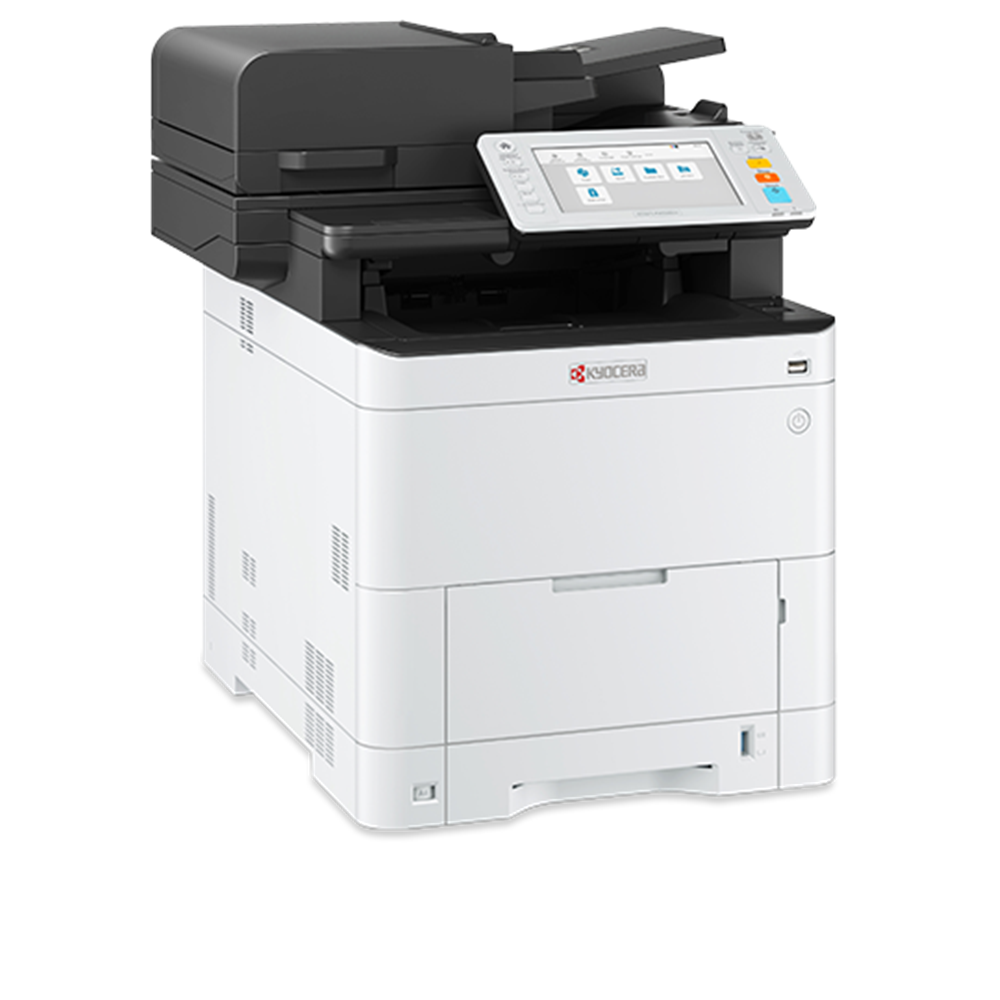

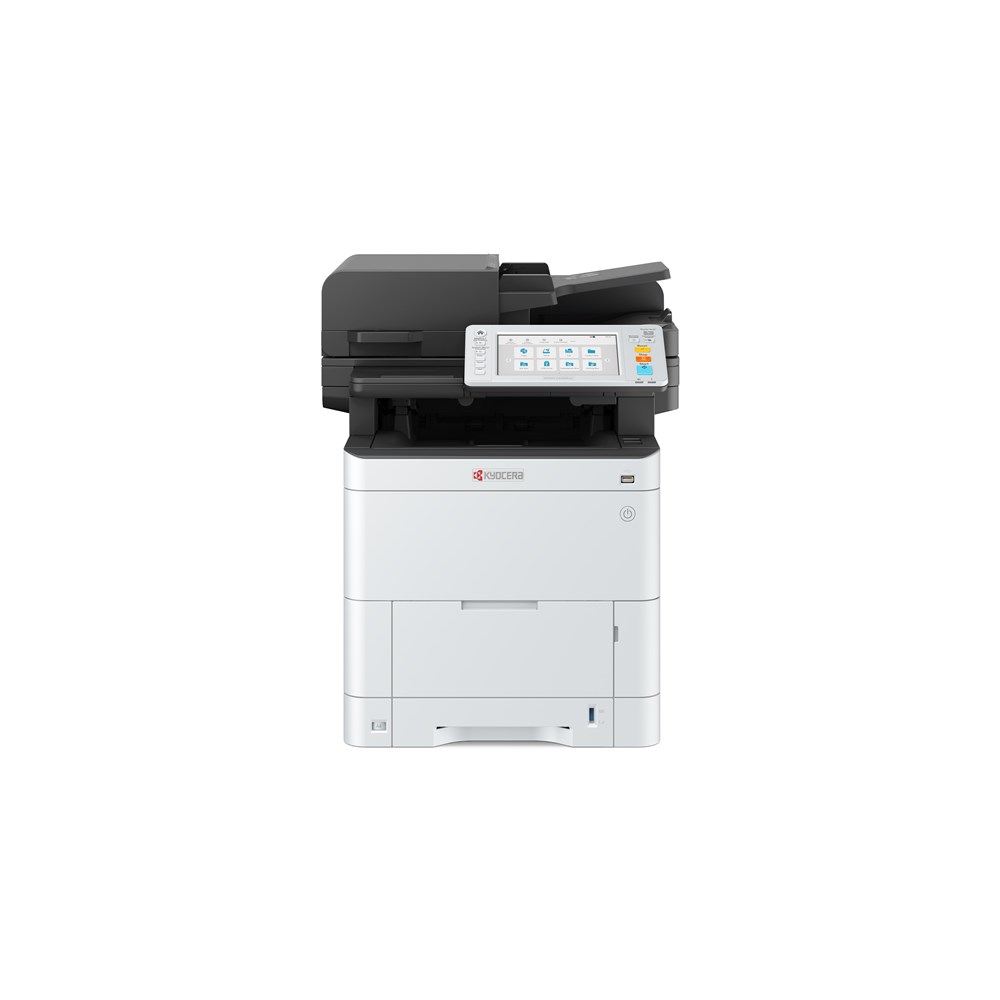

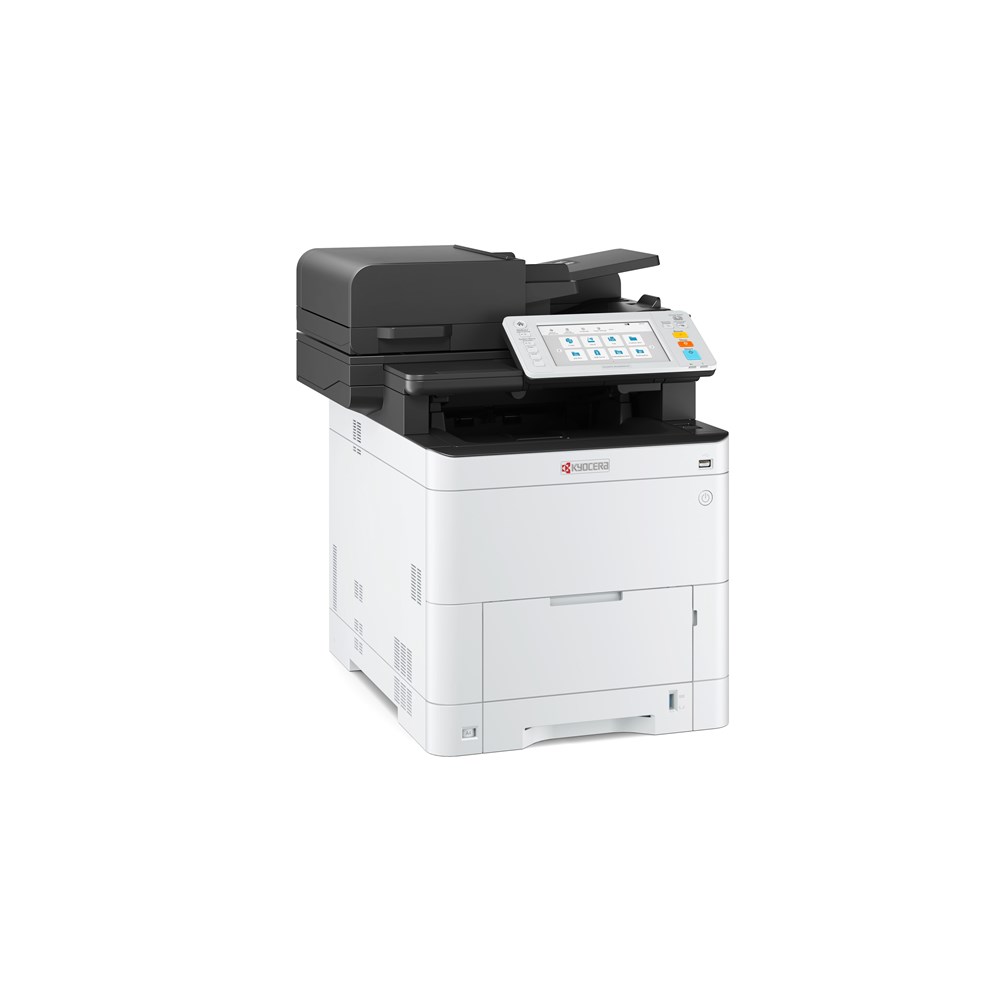

ECOSYS MA4000cifx
This flexible device is an all-in-one solution for medium and large-sized work groups, offering everything from double-sided print to copying, scanning and faxing
- Double-sided print, copy, scan and fax
- Data overwrite and encryption, Trusted Platform Module, Secure Boot and Run Time Integrity Check, S/MIME and TLS 1.3
- HyPAS™ solution platform enables powerful customisations
- Strengthen affinity with Microsoft Universal Print
Main Specifications
General type
Colour multifunctional for A4 format
Engine speed
Up to 40 pages A4 per minute in colour and b/w
Warm-up time
Approx. 26 seconds or less
Power consumption
Printing: 532 W Copying: 547 W Ready mode: 84 W Sleep-mode: 0.6 W
Paper Handling
Input capacity
100-sheet multi-purpose tray, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 – 216 x 356 mm)
Max. input capacity with options
2,210 sheets with 64 g/m2
Duplex unit
Duplex as standard supports 60–163 g/m2, A4, A5, B5, Letter, Legal
Output capacity
Max. 250 sheets face-down with paper full sensor
Document processor
Dual scan document processor: standard 100 sheets 50 - 120 g/m2 A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)
Print
Processor
ARM Cortex-A9 Dual core1.2 GHz
Fonts
93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts( Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Features
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print quick copy, proof and hold, job storage and job management functionality
Applicable OS (Print)
All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request
Copy
Copy Max. original size
A4/legal
Continuous copy
1 - 999
Zoom range
25 - 400 % in 1% steps
Preset magnification ratios
7 Reductions/5 Enlargements
Image adjustments
Text + Photo, Photo, Text, Map, Printed document
Digital features
Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page
Scan
Scan functionalities
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN , WIA , WSD scan
Scan speed
120 ipm (300 dpi, A4, b/w), 100 ipm (300 dpi, A4 colour), 60 ipm (300 dpi, A4, b/w), 50 ipm (300 dpi, A4 colour)
Scan features
Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Scan resolution
200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)
Max. scan size
A4 / legal
Scan File type
TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Serchable PDF (optional Scan Extension Kit(A) is required)
Original recognition
Text, photo, text + photo, light text, optimised for OCR
Fax
Compatibility
ITU-T Super G3
Modem speed
Max. 33.6 kbps
Scanning speed
2.0 seconds or less
Scanning density
Normal: 8 dot/mm x 3.85 line/mm (200x100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200x200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200x400dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400x400 dpi), Halftone: 256 gray scales
Fax Max. Original size
A4 / legal
Fax features
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast
Paper Handling Options
|
|
Article Type
|
Capacity in sheets
|
Dimensions (W x D x H)
|
Paper size
|
|

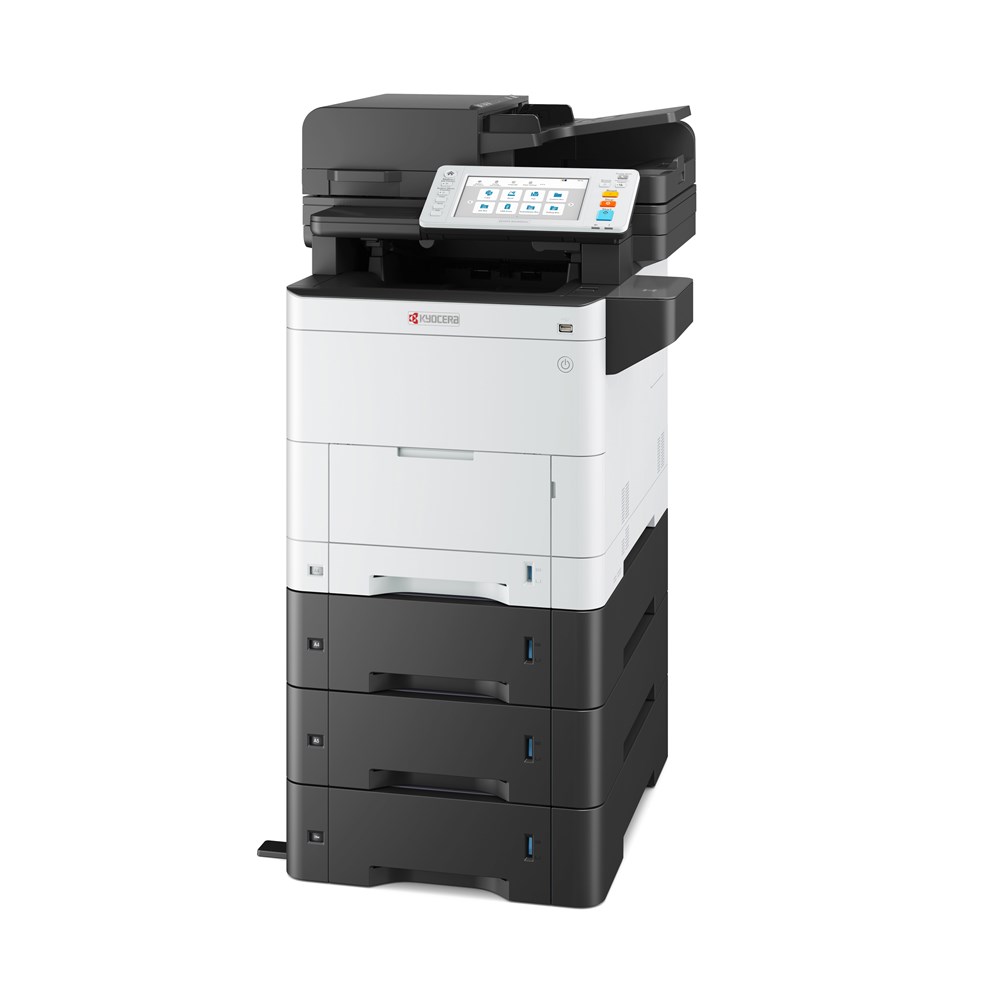

PF-5150
|
Paper feeder
|
500 sheets
|
380 x 410 x 121 mm
|
60 - 120g/m2, A4, A5, B5, Letter, Legal Custom (92 - 216 x 162 - 356 mm
|
Consumables
TK-5384K
Microfine toner black for 13,000 A4. Capacity of starter toner is black 6,000 pages. Average continuous toner yield in accordance with ISO/IEC 19798
TK-5384C
Average continuous cyan toner yield 10,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 5,000 pages in accordance with ISO/IEC 19798
TK-5384M
Average continuous magenta toner yield 10,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 5,000 pages in accordance with ISO/IEC 19798
TK-5384Y
Average continuous yellow toner yield 10,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 5,000 pages in accordance with ISO/IEC 19798
Options
HD-17
64GB SSD storage for easy document management
HD-18
256GB SSD storage for easy document management
HD-19
512GB SSD storage for easy document management
IB-37
Wireless Network Interface (USB: 5GHz/2.4GHz)
IB-38
Wireless Network Interface (USB: 2.4GHz)
IB-50
Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT
IB-51
Wireless LAN Interface (802.11b/g/n) (Note: Requires Labour Call Out Fee for Installation)
PCL Barcode SD
Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)
Scan extension Kit (A) AC
Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed
UG-33 AC
ThinPrint support (Licence)
UG-35
TPM (Trusted Platform Module)
USB IC Card Reader + Card Authentication Kit (B) AC
Support for various authentication keys available
1244/10 Cabinet
For 2 draw configuration
