AK-ACR-CID13

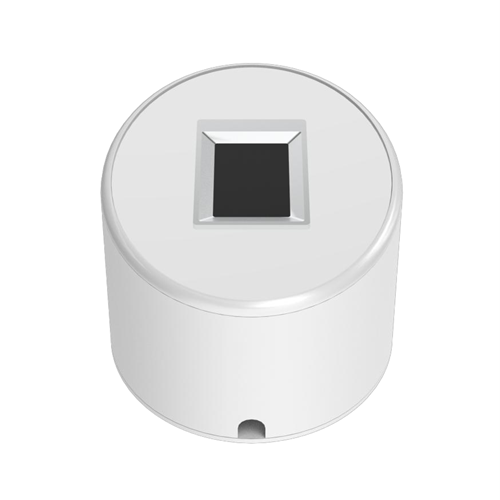

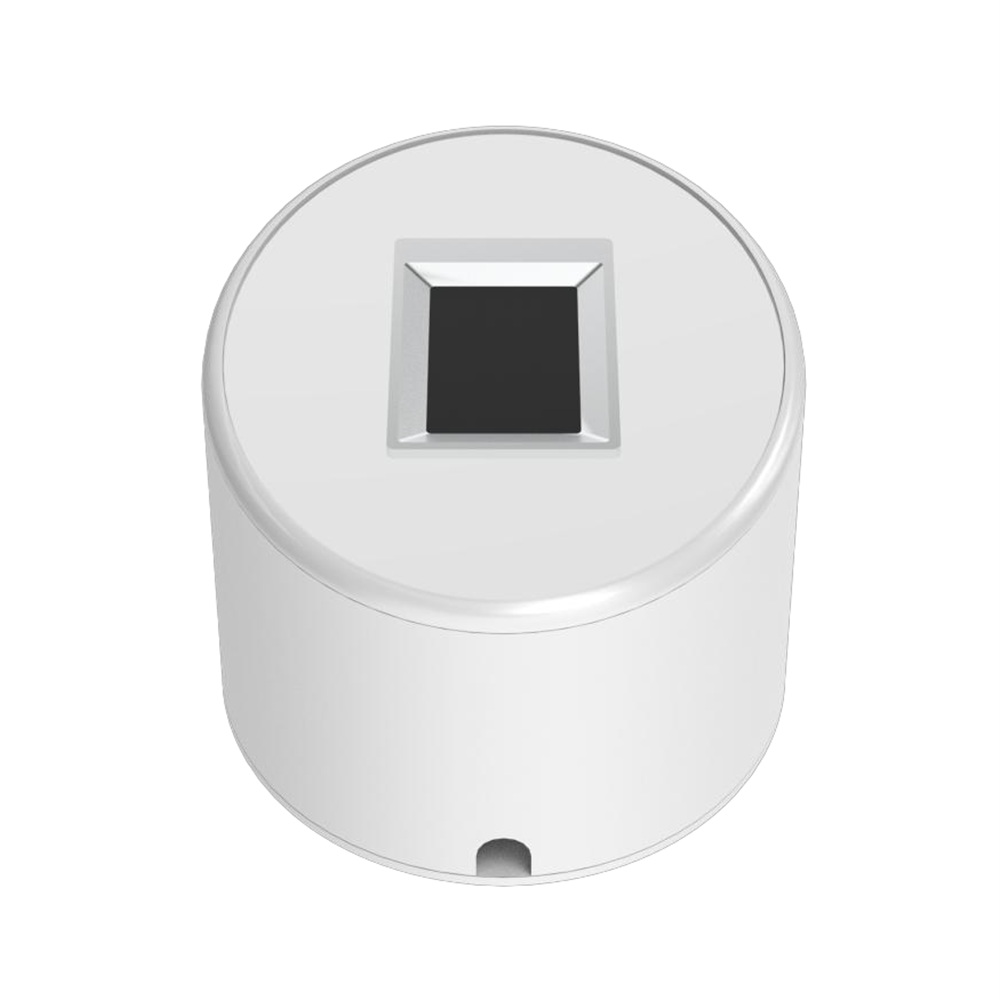

Akuvox's ACR-CID13 is a semiconductor desktop fingerprint capture device. It offers high reliability, strong adaptability to dry and wet fingers, and fast fingerprint recognition speed. The device is capable of fingerprint image capture, image processing, and feature extraction, featuring a compact size, novel design, low power consumption, and simple interfaces.
Product Specifications
|
Communication Interface
|
USB 2.0
|
|
Operating Voltage
|
DC 5.0 ± 0.5 (V)
|
|
Maximum Current
|
<60mA VDD (excluding the indicator light module)
|
|
Indicator Light
|
Red/Green
|
|
Image Resolution
|
256 × 360 pixels
|
|
Fingerprint Image Capture Time
|
≤0.25s
|
|
Image Distortion Calibration
|
≤2%
|
|
Effective Fingerprint Detection Area
|
12.8mm × 18mm
|
Connection Requirements
After connecting to a computer, its green indicator light remains on.
Fingerprint Enrollment Requirements
-
Place the fleshy part of your finger in the middle of the reader to ensure accurate fingerprint capture and recognition.
-
Apply light and even pressure on the reader. Pressing too hard may make the fingerprint image dark or blurred.
-
Keep your finger still during the enrollment.
Configuration
The device works with Akuvox SmartPlus Cloud.
-
For SmartPlus community projects, property managers can enroll fingerprints for residents.
-
For Smart Access commercial projects(created after October 15, 2024), installers, project managers, and administrators can enroll fingerprints for personnel.
