The euLINK DALI port can only work with euLINK or euLINK Lite.
Up to 4 euLINK DALI ports can be connected to 1 euLINK. For technical and performance reasons we recommend that up to 2 euLINK DALI ports should be connected to 1 euLINK Lite.
A single euLINK DALI port can control up to 64 DALI lights. Hence, one euLINK with the maximum number of 4 euLINK DALI ports can control maximum 256 DALI lights.
Similarilty, 1 euLINK Lite with 2 euLINK DALI ports can control up to 128 DALI lights.
FEATURES :
- Add DALI communication to euLINK/euLINK Lite
- Works only with euLINK/euLINK Lite
- Control up to 64 DALI lights
- Up to 4 euLINK DALI ports can be connected to 1 euLINK (only 2 euLINK DALI ports to 1 euLINK Lite)
TECHNICAL SPECIFICATIONS :
- Power supply:
- Physical parameters:
- euLINK DALI port dimensions: 35 x 90 x 58 mm

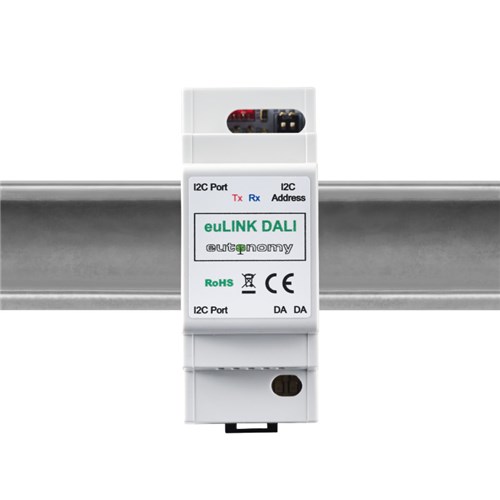

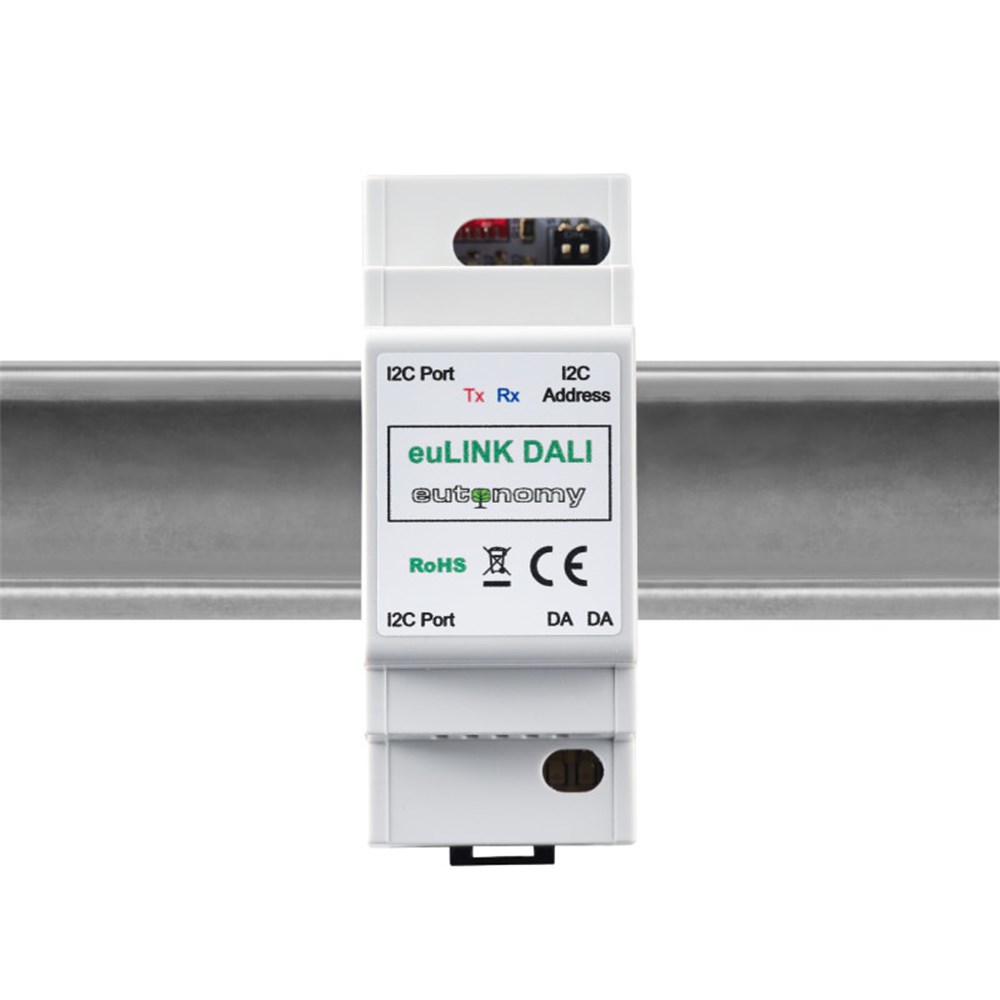

- DIN TH35 rail mounting, 2 TE modules
- Environment:
- Working temperature: from 0°C to + 40°C
- Relative humidity: ≤90%, non-condensing
- Protection degree: IP20
