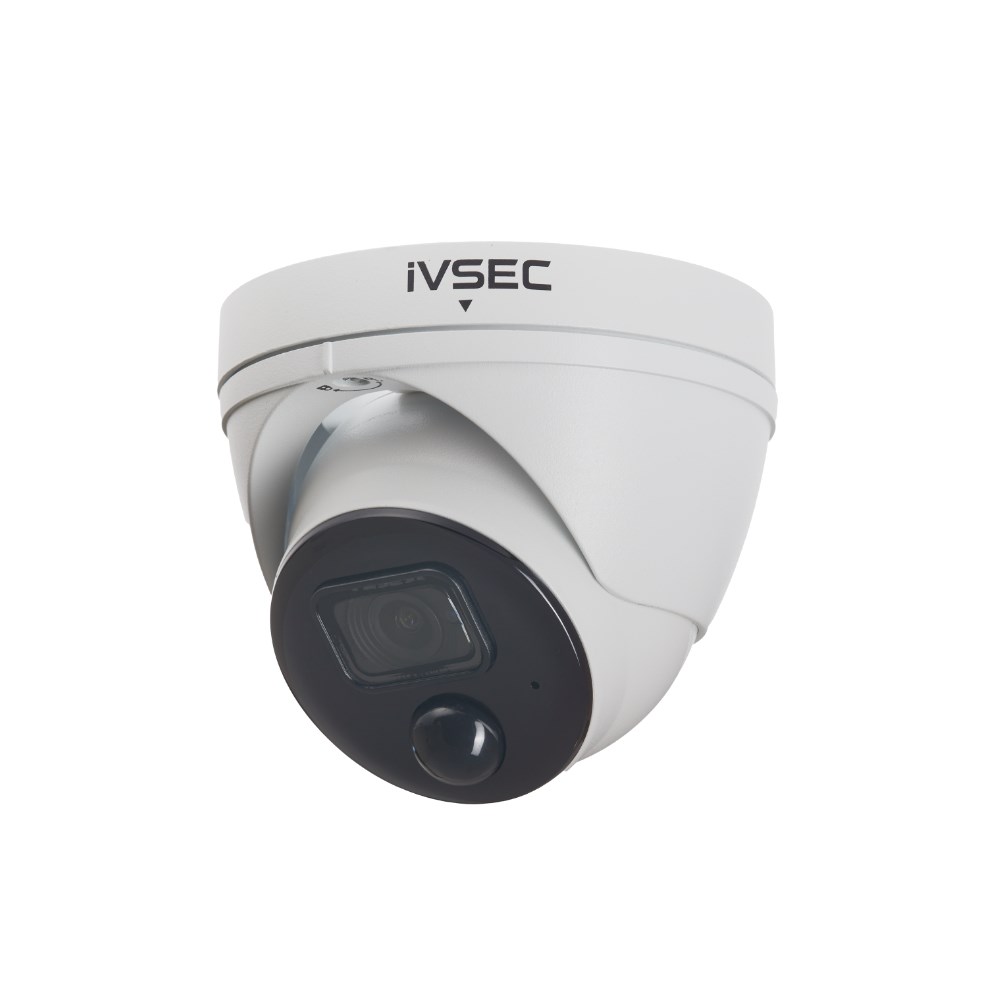

NC110XC Security Camera
Now with Microphone, SD card slot and locking mechanism on housing. Installers recommended adjusted field of view to limit resolution wastage on wider angles, such as walls and sky.
| Camera Type |
Dome |
| Image Sensor |
1/2.7″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
5 |
| Maximum Video Resolution |
2592 x 1944 |
| Lens |
2.8 mm (H.FOV: 99°) |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
30 |
| Image clarity |
3.5 |
| Connectors |
RJ-45 |
| Video Compression |
H.265, H.264 |
| ONVIF (depends on firmware version) |
ONVIF( Profile S/G/T) |
| Operating Environment |
-30～+55°C/less than ≤ 95% RH |
| Dimensions |
100×100 mm |
| Weight (Net) |
0.4 |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<7W |
| Connectors (web) |
RJ-45 , DC Power Input |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
20 |
| Day/Night Mode |
Auto |
| Image Enhancement |
Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Edge Recording slot microSD/SDHC Card |
Yes |
| Video Compression |
H.265, H.264 (3 streams) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| UPNP |
Yes |
| In The Box |
Free Software available from FAQ, Printed quick user guide, installation template, mounting screws and plugs |
| Warranty |
3 Year Warranty |
| Weight (Packaged) |
0.55 |
