IVSEC - IVNC323XD

Supplier Product Code:
NC323XD
IVSEC TURRET IP CAMERA, 8MP, 3.6MM FIXED LENS, 20FPS, POE, IP66, 30M IR, IVS
RRP $363.53 inc GST
To purchase this item, please login to your Alloys account.
  • Overview
  • Key Specifications
  • Downloads
CCTV Storage Calculator https://www.seagate.com/au/en/video-storage-calculator/

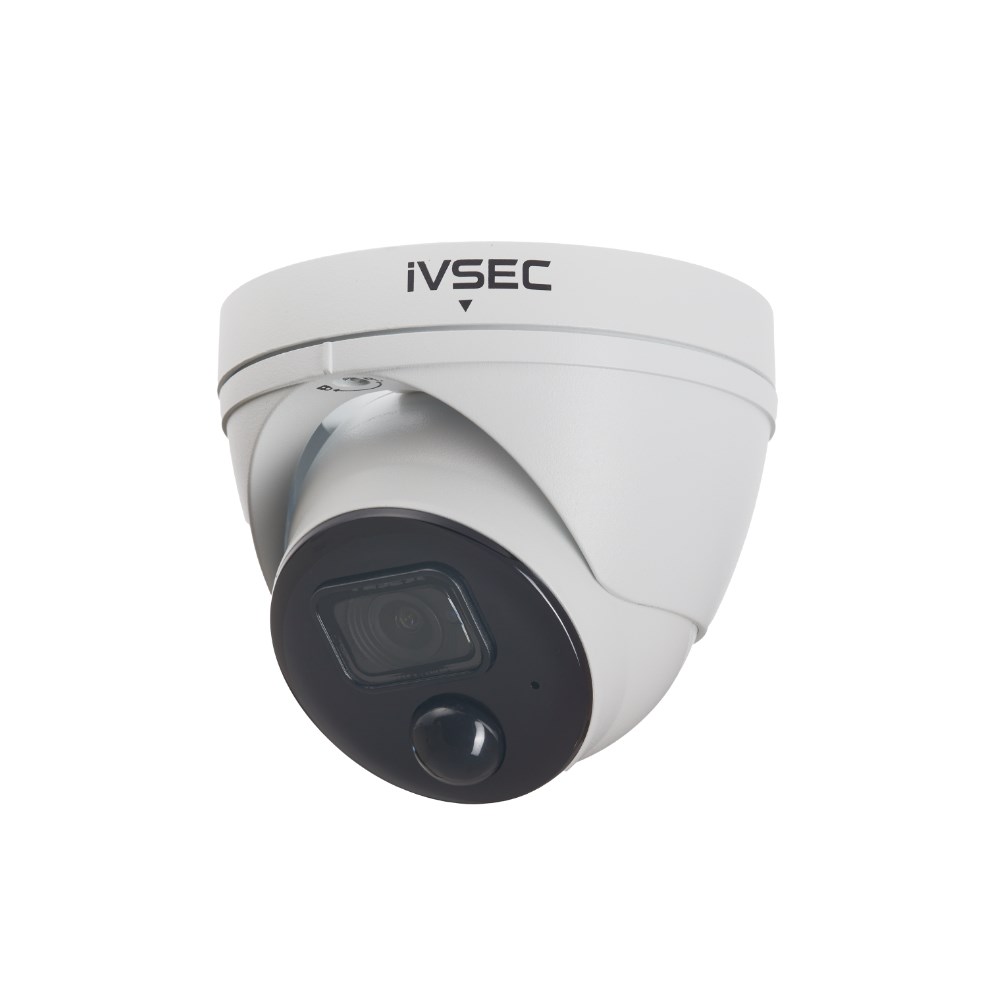

NC323XD Security Camera

SONY Starvis sensor, Human and vehicle tracking, Extra photos/frames per second (FPS), Improvements to Wide Dynamic Range (WDR) to handle difficult lighting. Locking mechanism on housing. Supports SD card. New tech Infra-red LEDs.

Camera Type Dome
Image Sensor 1/2.8″ 8MP Progressive CMOS
Maximum Video Resolution (Megapixels) 8
Maximum Video Resolution 3840 x 2160
Lens 3.6 mm (H.FOV: 88°)
Lens Type Fixed
Maximum Night IR Distance (M) 30
Image clarity 4
Connectors RJ-45
Video Compression H.265, H.264
ONVIF (depends on firmware version) ONVIF( Profile S/G/T)
Operating Environment -30~+55°C/less than ≤ 95% RH
Dimensions 100×100 mm
Weight (Net) 0.44
Accessories IV2422X, IV2433X, IV2444X, IV2455X
Power Supply Power over Ethernet IEEE 802.3af, DC12V
Power Consumption <7W
Connectors (web) RJ-45 , DC Power Input
Outdoor Use Yes
IP Rating IP66
Vandal Resistant Yes
Frame Rate at Resolution 20
Day/Night Mode Auto
Image Enhancement Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue
Edge Recording slot microSD/SDHC Card Yes
Video Compression H.265, H.264 (3 streams)
Audio Streaming Yes (microphone included)
Protocols TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code)
Intelligent Video PIR, IVS such as Perimeter Intrusion Detection, Human and Vehicle Detection, Face Detection, Motion Detection.
Software Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app
Power Over Ethernet Yes
Ethernet Ethernet (10/100 Base-T)
UPNP Yes
In The Box Free Software available from FAQ, Printed quick user guide, installation template, mounting screws and plugs
Warranty 3 Year Warranty

Enquire now for specialist advice: https://ivsecurity.com.au/contact/
Technical Specifications
Height 0.1200
Weight 0.5300
Width 0.1400
Length 0.1400
Brand IVSEC
