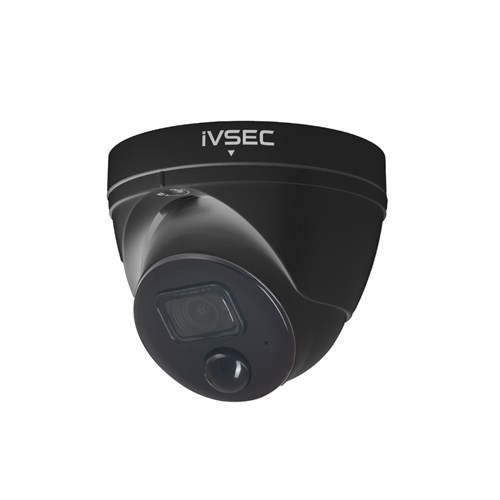

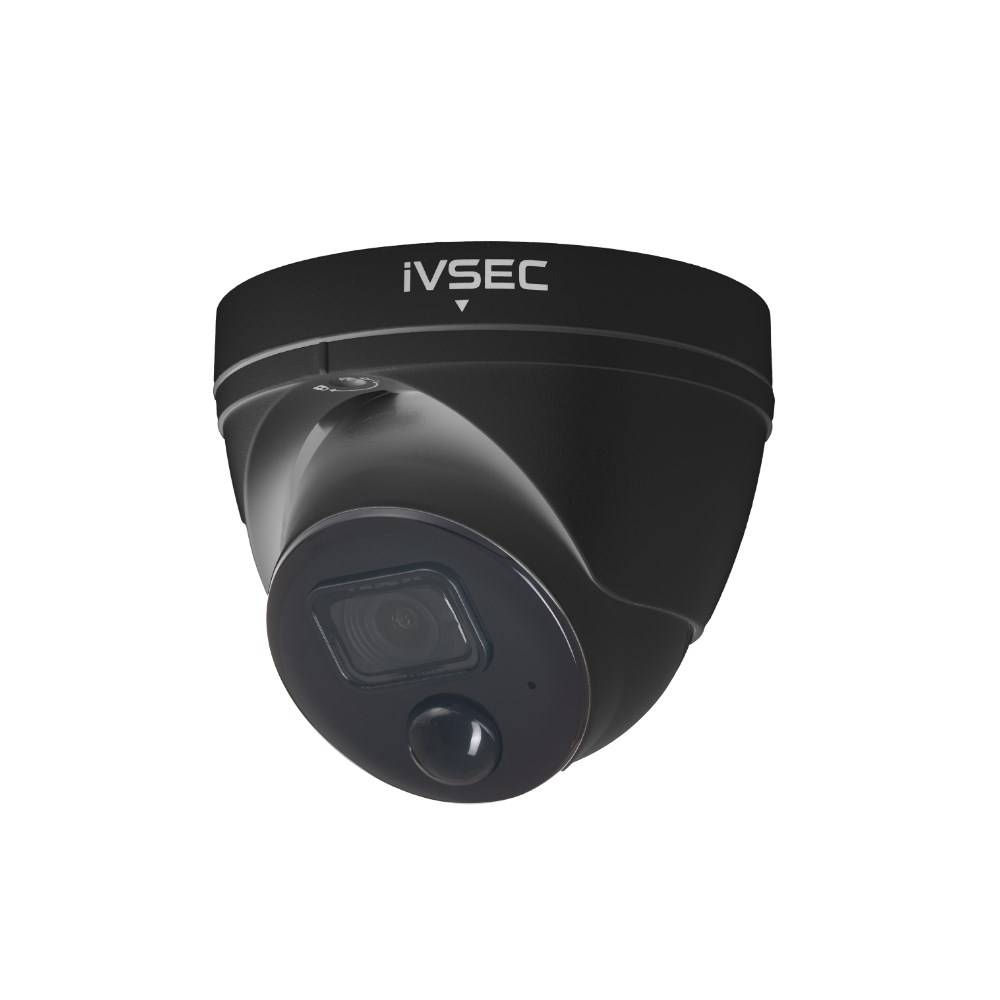

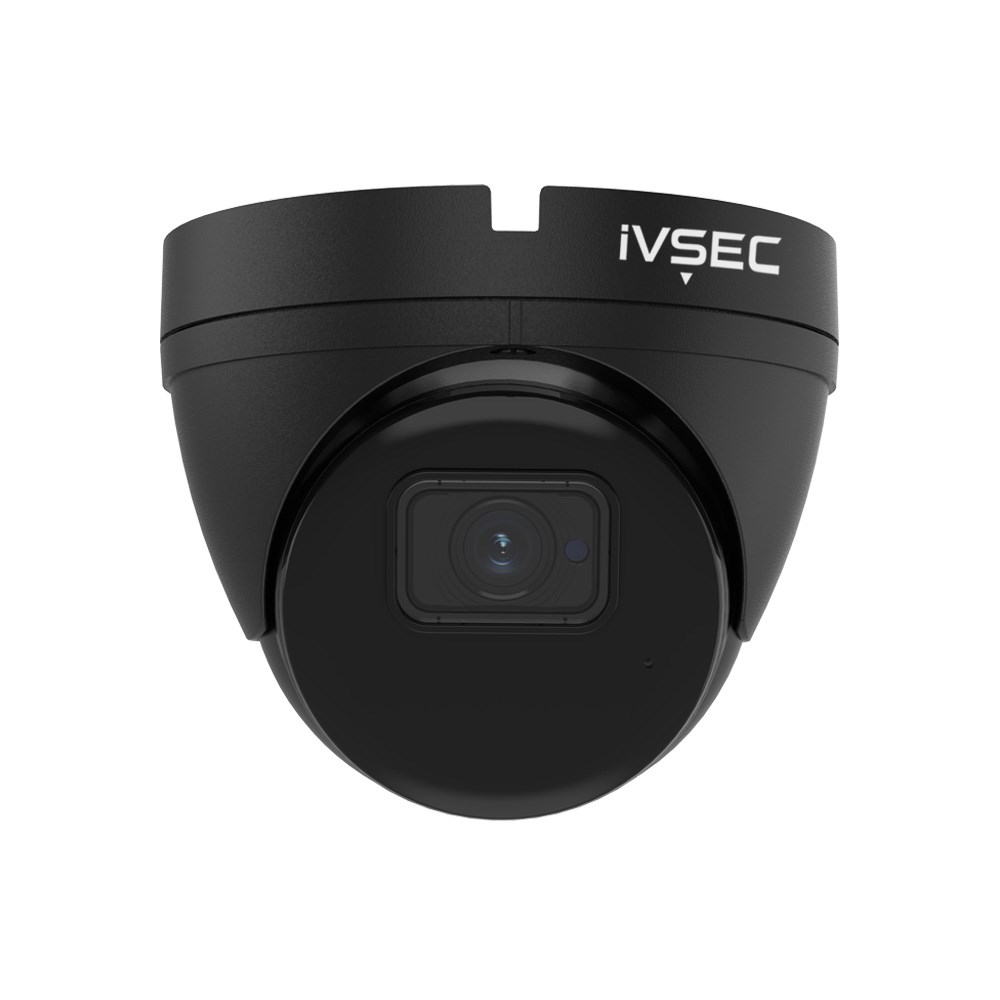

NC323XD-BLK Security CameraSONY Starvis sensor, Human and vehicle tracking, Extra photos/frames per second (FPS), Improvements to Wide Dynamic Range (WDR) to handle difficult lighting. Locking mechanism on housing. Supports SD card. New tech Infra-red LEDs.
| Camera Type |
Dome |
| Image Sensor |
1/2.8″ 8MP Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
8 |
| Maximum Video Resolution |
3840 x 2160 |
| Lens |
3.6 mm (H.FOV: 88°) |
| Lens Type |
Fixed |
| Maximum Night IR Distance (M) |
30 |
| Image clarity |
4 |
| Connectors |
RJ-45 |
| Video Compression |
H.265, H.264 |
| ONVIF (depends on firmware version) |
ONVIF( Profile S/G/T) |
| Operating Environment |
-30～+55°C/less than ≤ 95% RH |
| Dimensions |
100×100 mm |
| Weight (Net) |
0.44 |
| Accessories |
IV2422X, IV2433X, IV2444X, IV2455X |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<7W |
| Connectors (web) |
RJ-45 , DC Power Input |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
20 |
| Day/Night Mode |
Auto |
| Image Enhancement |
Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue |
| Edge Recording slot microSD/SDHC Card |
Yes |
| Video Compression |
H.265, H.264 (3 streams) |
| Audio Streaming |
Yes (microphone included) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Intelligent Video |
IVS such as Perimeter Intrusion Detection, Human and Vehicle Detection, Face Detection, Motion Detection. |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| UPNP |
Yes |
| In The Box |
Free Software available from FAQ, Printed quick user guide, installation template, mounting screws and plugs |
| Warranty |
3 Year Warranty |
