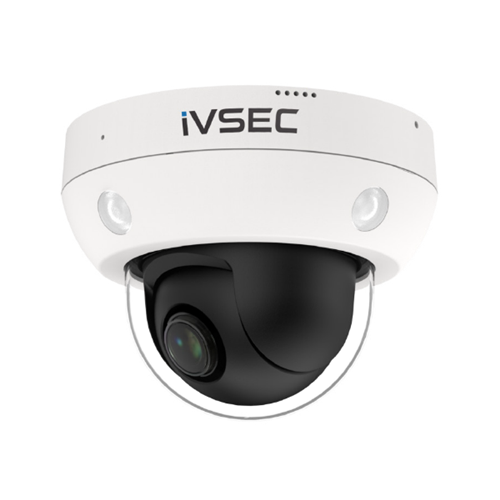

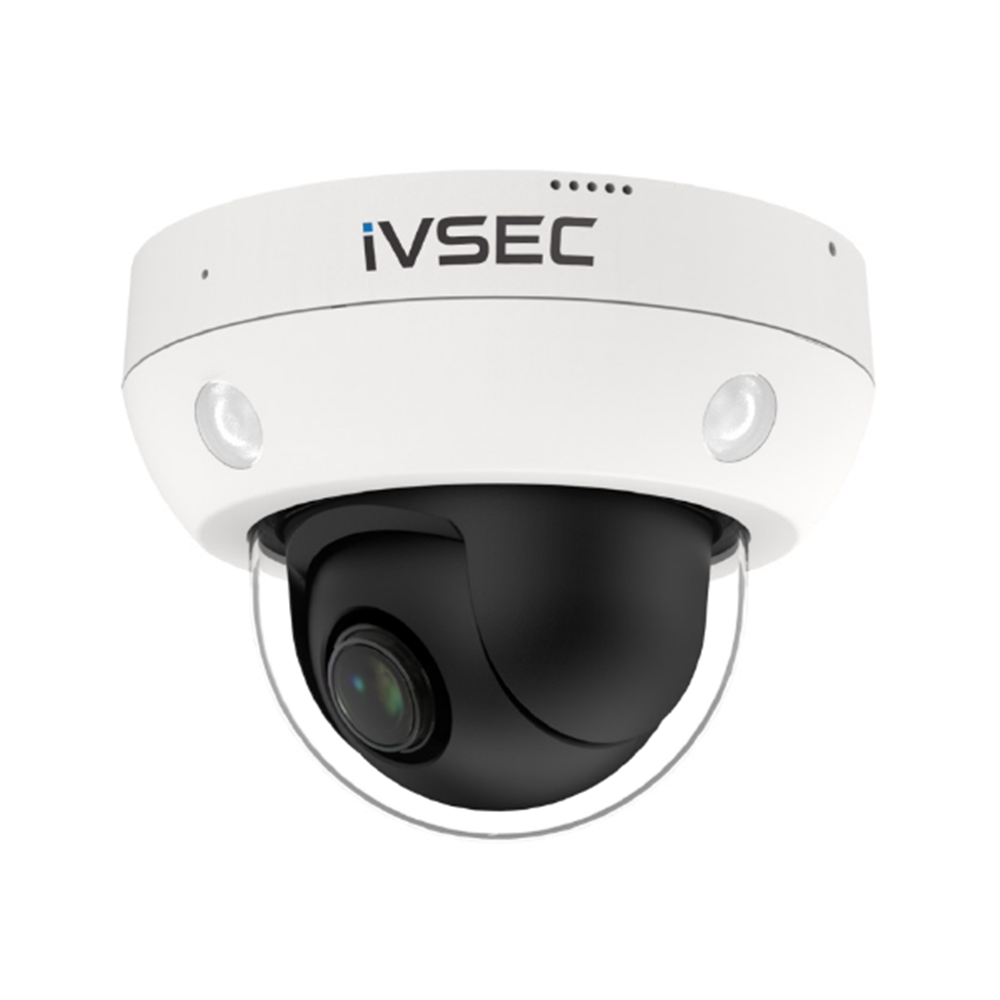

| Camera Type |
Dome |
| Image Sensor |
1/1.8″ Progressive CMOS |
| Maximum Video Resolution (Megapixels) |
4 |
| Maximum Video Resolution |
2560 x 1440 |
| Lens |
2.8-12 mm (H.FOV: 114.6 to 48.3°) |
| Lens Type |
Motorised Zoom |
| Maximum Night IR Distance (M) |
20 |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| ONVIF depends on firmware version |
ONVIF( Profile S/G/T) 21.12 or greater, Http API |
| IP Rating |
IP66 |
| Operating Environment |
-35ºC to 60ºC (31ºF-140ºF) Humidity: 20%-95% RH |
| Dimensions |
Ø153 X 118.8mm |
| Weight (Net) |
0.95 |
| Accessories |
– |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Power Consumption |
<14W |
| Connectors |
RJ-45 , DC Power Input, Reset Button |
| Outdoor Use |
Yes |
| Vandal Resistant |
Yes |
| Frame Rate at Resolution |
50 |
| Day/Night Mode |
Schedule (Time Based), Full colour (white LEDS) or Day/Night (IR LEDS) |
| LED Types |
IR, Warm White |
| Image Enhancement |
SMART IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Mirror, Angle Flip, Corridor Mode, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction |
| Edge Recording microSD/SDHC Card |
Micro SD/SDHC Card |
| Multiple Streams (encode format) |
3 Streams |
| Audio Streaming |
Two-way audio (microphone with a distance [up to 8m] and speaker included) |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP, SNMP, P2P (QR code) |
| Intelligent Video (IVS) |
Face Recognition, Licence Plate Recognition, Perimeter Intrusion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, Rare sound detection |
| Cloud option (camera only) |
Dropbox |
| Software |
Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code) |
| Power Over Ethernet |
Yes |
| Ethernet |
Ethernet (10/100 Base-T) |
| In The Box |
Free Software available (ivsecurity.com.au/support/software), Printed quick user guide, installation template, mounting screws and plugs |
| Warranty |
3 Year Warranty |
