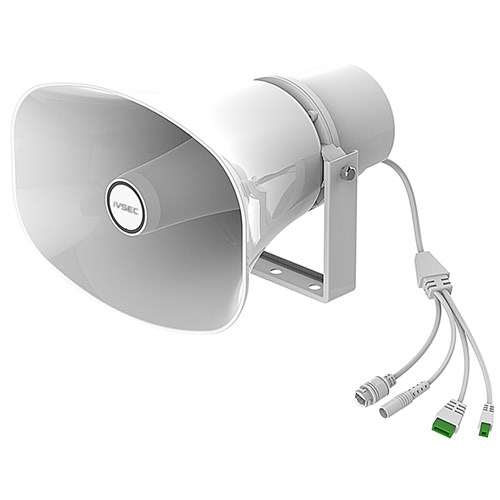

The iVSEC NS100YA is a commercial-grade IP horn speaker designed for public address, paging, and emergency broadcasting. Built for both indoor and outdoor use, it functions as a standalone audio terminal or integrates with broader communication and security systems for unified control.
Delivering up to 30W output and high sound pressure levels, the iVSEC NS100YA provides clear, wide-area audio coverage suitable for campuses, industrial sites, and public spaces. It supports HD audio codecs, along with two-way intercom via a built-in microphone, ensuring reliable communication and broadcast clarity.
With IP66-rated protection, the unit is resistant to dust and water, making it ideal for harsh environments. It supports SIP protocol, multicast paging, and multiple management options, while also enabling scheduled broadcasts, emergency alerts, and integration with systems such as surveillance and alarms.
| Colour |
White |
| Mouning |
Wall |
| SIP Accounts |
2 |
| Multicast Partitions |
20 |
| Customised Audio Support |
Yes |
| Auto Answer |
Yes |
| HTTP/Webhook Support |
Yes |
| DTMF Support |
Yes |
| Web GUI |
Yes |
| Storage Capacity (Mb) |
500 |
| ONVIF |
Yes |
| Protocols |
DHCP, FTP/TFTP, HTTP/HTTPS, IPv6, L2TP, OpenVPN, PPPoE, RTP/RTCP/SRTP, SIP2.0, SNTP, STUN, TR-069 |
| Encoding |
G.711A/U, G.722, G723, G726-32K, G.729A/B, iLBC, Opus |
| Language |
English |
| Auto-Provisioning |
Yes |
| Outdoor Use |
Yes |
| IP Rating |
IP66 |
| Accessories |
n/a |
| Frequency Response |
350Hz-7.5KHz |
| Speaker Sensitivity |
107± 3dB |
| Impedance |
8Ω |
| Max SPL |
120dB |
| Speaker Power Max |
8W (PoE), 15W (PoE+), 30W (24V DC/2A) |
| Additional Speaker Support |
No |
| Microphone |
Yes |
| Microphone Sensitivity |
-38± 3dB |
| Self Testing Feature |
Yes |
| Ethernet |
Yes (10/100 Mbps) |
| Power Over Ethernet |
Yes |
| Power Supply |
24V DC/2A, PoE, PoE+ |
| Power Consumption |
48W max |
| Connectors |
2 pin DC input, 1 x Relay input, 1 x Relay output, 1 x RJ45 port |
| Wi-Fi |
No |
| Bluetooth |
No |
| Operating Environment |
-30℃ – 60℃ (10-95% RH) |
| Storage Environment |
-40℃ – 70℃ |
| In The Box |
1 x SIP Speaker, 1 x Quick Guide |
| Warranty |
2 Years Parts |
| Product Dimensions (H x W x L) mm |
205 x 285 x 285 |
| Packaging Dimensions (H x W x L) mm |
250 x 310 x 310 |
| Weight (Net) kg |
9.76 |
| Weight (Gross) (kg) |
11.12 |
