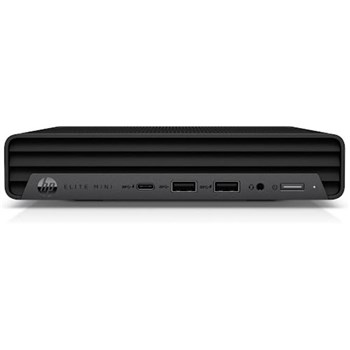

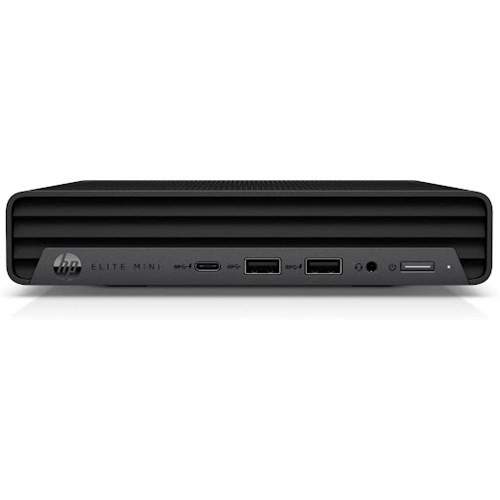

HP Mini IP Conference PC with Microsoft Team Rooms
Empower your teams with rich, immersive collaborative experiences across town and around the world in an instant. The HP Mini IP Conferencing PC with Microsoft Teams Rooms[3] is designed to work with your existing audiovisual infrastructure, the Poly TC10 controller and up to two displays.[4,14]
Simple setup
Setting up your conferencing space is fast and easy with an Intel® processor[2] driven PC that has Microsoft Teams Rooms[3] preinstalled and compatibility with Microsoft Teams Rooms certified audio, video, and the Poly TC10 touch controller.[6]
A fast and robust connection keeps you on track

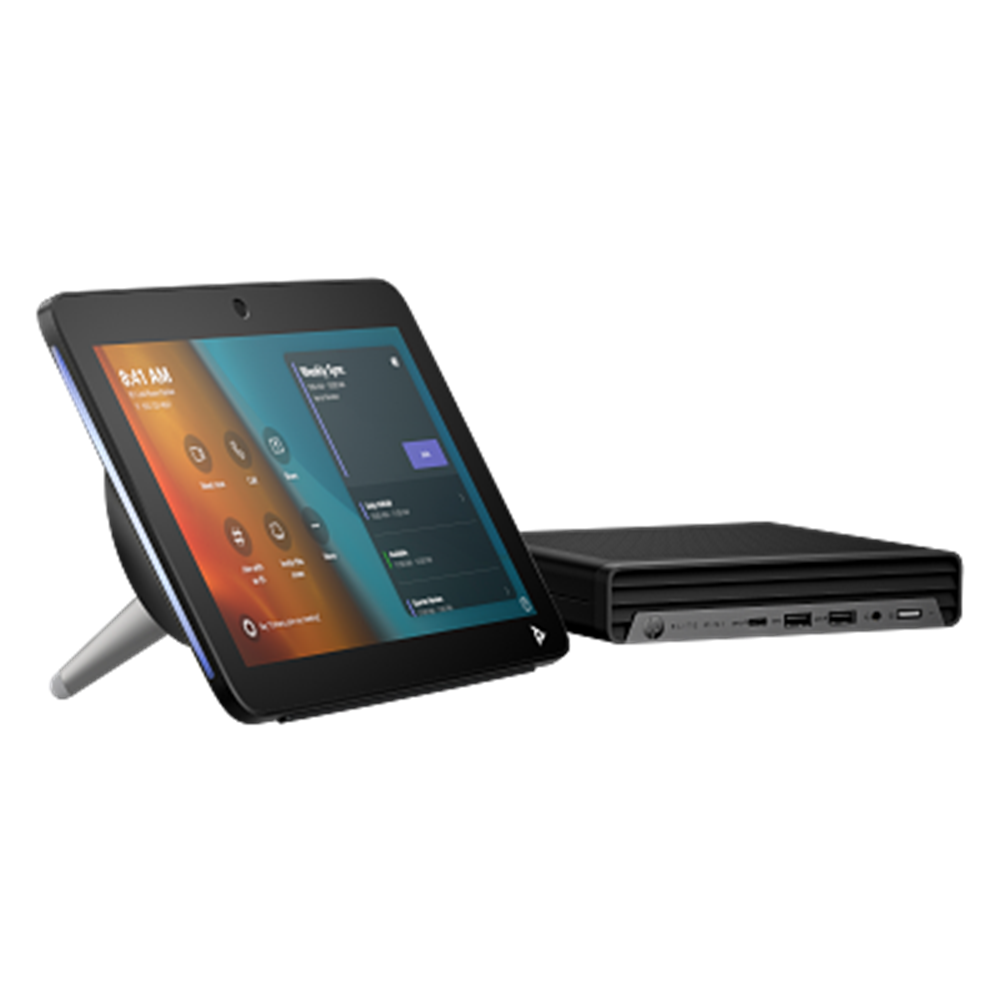

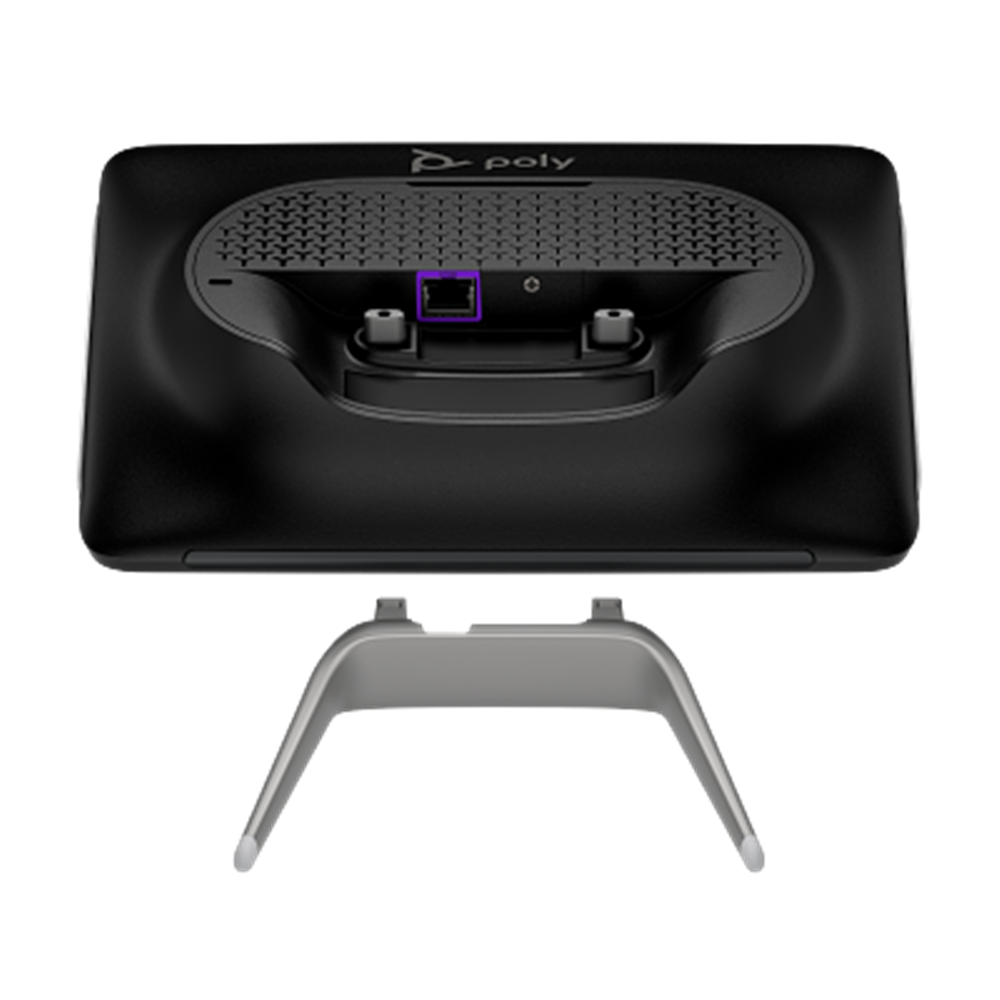

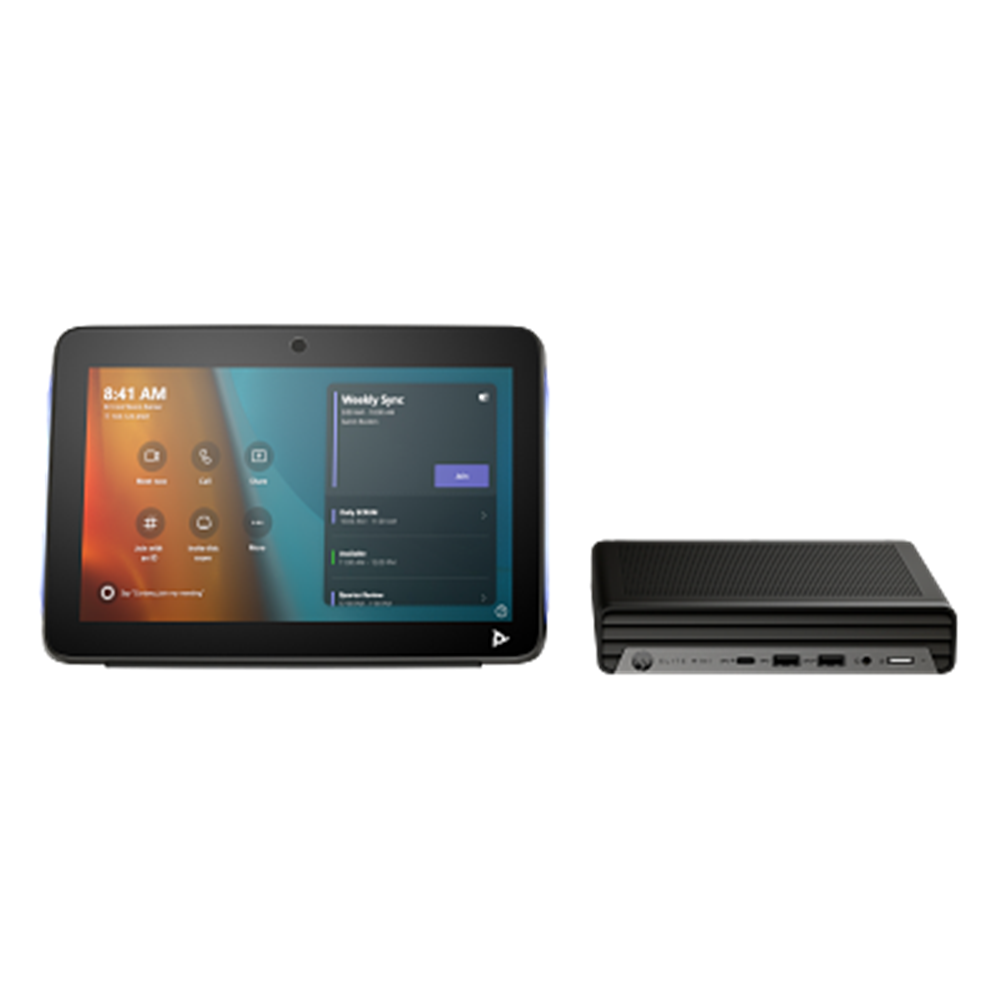

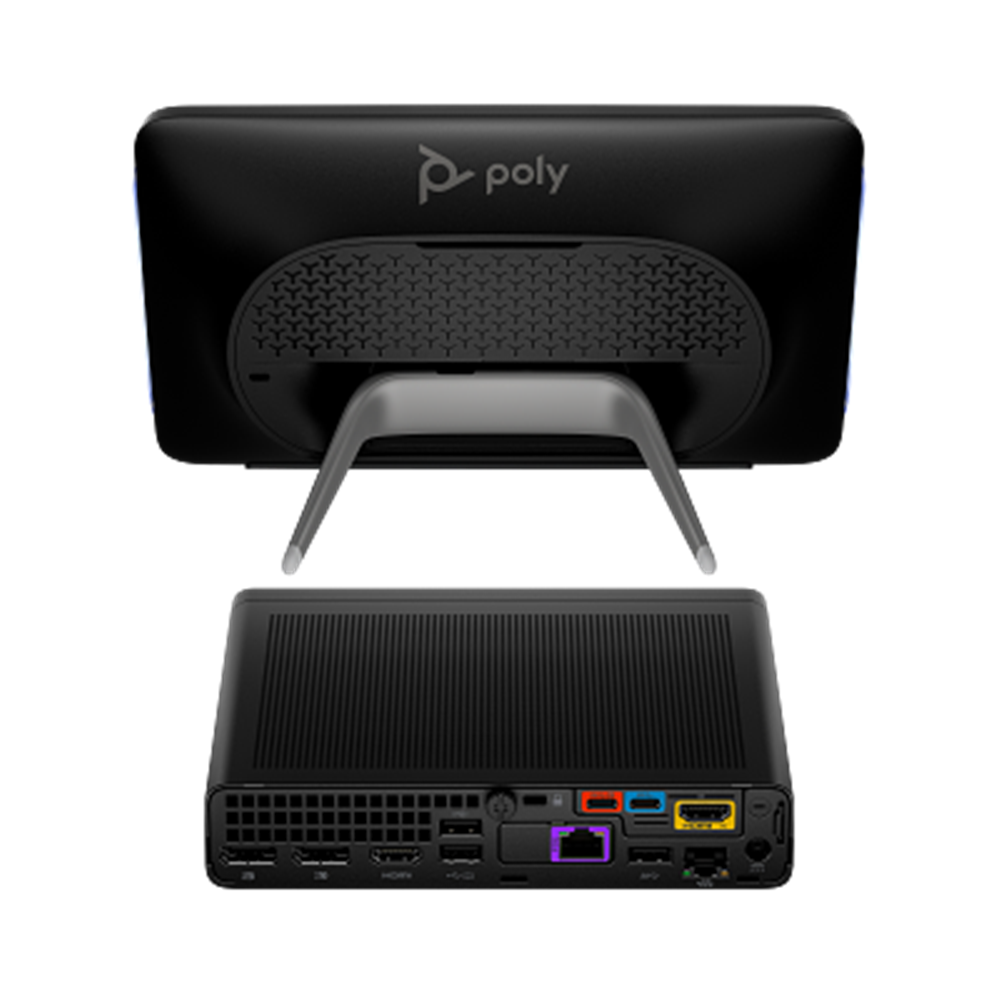

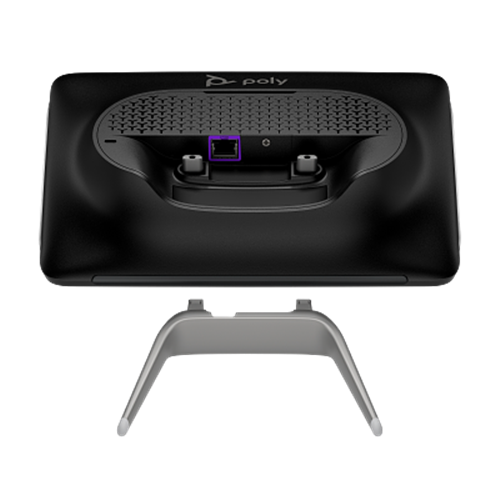

Count on the Poly TC10 touch controller[6] to manage your Microsoft Teams meeting from anywhere in the room. Simply connect it to the HP Mini Conferencing PC using a flexible Ethernet cable, and HP software[5] help ensure it can stay up and running all day.
Strong security and manageability
Get a highly secure and manageable PC that has the self-healing protection of HP Sure Start Gen7[7] and easy device management through Microsoft Endpoint Manager with HP Manageability Integration Kit.[8]
Help protect our shared future
At least 50 percent of all plastic used in this PC is post-consumer recycled plastic.[9] The outer box packaging is 100 percent sustainably sourced.[10]
[1] Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows is automatically updated, which is always and enabled. High speed internet and Microsoft account required. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com .
[2] Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
[3] Microsoft Teams Rooms Basic software is pre-installed, license activation required and includes core meeting experiences for up to 25 devices. A Pro license is sold separately and includes all Basic features plus the enhanced in-room meeting experiences, security and the Microsoft Teams Rooms Managed Services platform. Terms and conditions are subject to change. For more information, please visit Aka.ms/TeamsRoomsLicensing.
[4] An Intel® Core™ i5 or i7 processor is required to support two displays. Touch-control panels and displays sold separately.
[5] HP Software services, included in the HP Mini Conferencing PC, run to monitor the state of Poly TC10 touch controller and attempt to remedy if there are problems detected.
[6] When more than one Poly TC10 touch controller is paired, the PoE port on the PC connects to a local PoE switch, to which the Poly TC10 touch controllers are connected. In these scenarios "direct connect to PC" does not apply. Up to four Poly TC10s are supported. Audio, video, and Poly TC10 touch controller sold separately.
[7] HP Sure Start Gen7 is available on select HP PCs and requires Windows 10 and higher.
[9] Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
[14] Mounting hardware sold separately.
KEY SPECIFICATIONS
|
Audio
|
Realtek ALC3252 codec, universal audio jack with CTIA and OMTP headset support
|
|
Chipset
|
Intel® Q670 (vPro®)
|
|
Color
|
Black
|
|
Country of origin
|
China(UUZ, ABG, AC4, ACJ, UUF, ABM, AR6, AB1, AB0, ABJ, ABU, ABT, AB2, ABB); Mexico(ABA, ABM)
|
|
Dimensions (W x D x H)
|
17.7 x 17.5 x 3.4 cm
|
|
End of Life CO2e (kg)
|
0.8
|
|
Energy star certified
|
ENERGY STAR® certified
|
|
Expansion slots
|
1 M.2 2230; 2 M.2 2280
|
|
Expansion slots note
|
1 M.2 2230 slot for WLAN and 2 M.2 2280 slots for storage
|
|
Form factor
|
Mini
|
|
Graphic card footnote number
|
[13,14]
|
|
Graphics
|
Integrated
|
|
Graphics (integrated)
|
Intel® UHD Graphics 770
|
|
I/O Port location
|
Rear
|
|
Internal Storage
|
256 GB PCIe® NVMe™ M.2 SSD
|
|
Manageability Features 1
|
HP Image Assistant (download)
|
|
Manageability Features 2
|
HP Manageability Integration Kit (download)
|
|
Manageability Features footnote number 2
|
[9]
|
|
Management features
|
HP Console Control; Poly Lens
|
|
Manufacturer Warranty
|
HP standard one-year limited warranty
|
|
Material Type for item
|
FERT
|
|
Memory
|
16 GB DDR5-4800 MT/s (2 x 8 GB)
|
|
Memory and storage
|
16 GB memory; 256 GB SSD storage
|
|
Memory layout (slots & size)
|
2 x 8 GB
|
|
Memory Slots
|
2 SODIMM
|
|
Operating humidity range
|
10 to 90% RH
|
|
Operating system
|
Windows 11 IoT Enterprise
|
|
Operating temperature range
|
10 to 35°C
|
|
Package dimension note (metric)
|
Packaging material used will vary by Country
|
|
Package dimensions (W x D x H)
|
49.2 x 11.4 x 25.1 cm
|
|
Package weight
|
2.95 kg
|
|

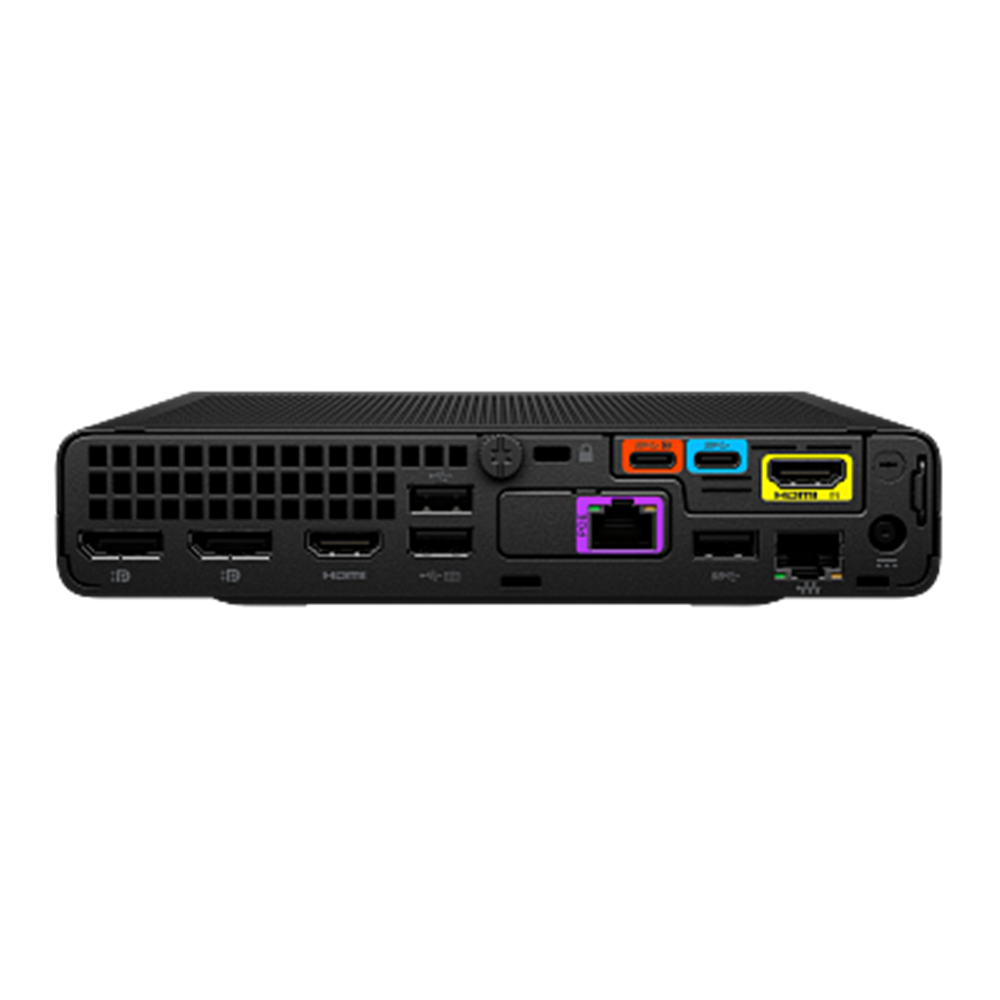

Ports
|
1 USB Type-C® 10Gbps signaling rate (DisplayPort™); 1 USB Type-C® 10Gbps signaling rate; 3 USB Type-A 10Gbps signaling rate; 1 HDMI 2.0b; 1 HDMI-in 2.0; 1 RJ-45; 1 standard lock slot; 1 power connector; 2 DisplayPort™ 1.4a; 1 PoE 2.5Gbps signaling rate
|
|
Power
|
150 W external power adapter, up to 89% efficiency
|
|
Processor
|
Intel® Core™ i7-13700T (up to 4.9 GHz with Intel® Turbo Boost Technology, 30 MB L3 cache, 16 cores, 24 threads)
|
|
Processor cache
|
30 MB L3
|
|
Processor core
|
16
|
|
Processor family
|
13th Generation Intel® Core™ i7 processor
|
|
Processors
|
Intel® Core™ i7-13700T with Intel® UHD Graphics 770 (1.0 GHz E-core base frequency, 1.4 GHz P-core base frequency, up to 3.6 GHz E-core Max Turbo frequency, up to 4.8 GHz P-core Max Turbo frequency, up to 4.9 GHz with Intel® Turbo Boost Technology, 30 MB L3 cache, 8 P-cores and 8 E-cores, 24 threads), supports Intel® vPro® Technology
|
|
Product long name specifications
|
HP Mini IP Conference PC with Microsoft Team Rooms, Windows 11 IoT Enterprise, Intel® Core™ i7, 16GB RAM, 256GB SSD
|
|
Product short name specifications
|
HP Mini IP Conference PC with Microsoft Team Rooms, Intel® Core™ i7, 16GB RAM, 256GB SSD
|
|
Production CO2e (kg)
|
101
|
|
Registration required
|
No
|
|
Security management
|
HP Sure Sense
|
|
Security management footnote number
|
[18]
|
|
Security Software Licenses
|
HP Wolf Pro Security Edition
|
|
Security software licenses footnote number
|
[19]
|
|
Software included
|
Microsoft Teams Rooms
|
|
Software included footnote number
|
[17]
|
|
Standard memory note
|
Transfer rates up to 4800 MT/s.
|
|
Sustainable impact specifications
|
50% post-consumer recycled plastic; Outer box is 100% sustainably sourced
|
|
Total CO2e (kg)
|
190
|
|
Total CO2e (kg) note
|
A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding.
|
|
Transportation CO2e (kg)
|
0.5
|
|
UNSPSC code
|
43211507
|
|
UPC number
|
1.98123E+11
|
|
Weight
|
1.42 kg
|
|
Weight note (metric)
|
Exact weight depends on configuration.
|
|
What's in the box
|
HP Mini IP Conference PC with Microsoft Team Rooms; Ethernet LAN POE cable (10 m); DisplayPort to HDMI Video Adapter; 150W External Power Adapter; External Power Adapter AC Power cable (1.8 m regional); Desktop Mini Port Cover; Dual VESA Sleeve V3; Power Supply Holder V4
|
|
Wireless
|
Intel® Wi-Fi 6E AX211 (2x2) and Bluetooth® 5.3 wireless card (supporting gigabit data rate)
|
[1] Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows is automatically updated and enabled. High speed internet and Microsoft account required. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com.
[3] Intel vPro® on this product requires a vPro supported processor, vPro enabled chipset, vPro enabled wired LAN and/or Wi-Fi 6E WLAN and TPM 2.0. Some functionality requires additional 3rd party software in order to run. Features of vPro® Essentials and Enterprise vary. See http://intel.com/vpro.
[4] Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.
[5] Intel® Turbo Boost technology requires a PC with a processor with Intel Turbo Boost capability. Intel Turbo Boost performance varies depending on hardware, software and overall system configuration. See http://www.intel.com/technology/turboboost for more information.
[6] Only select processors available with each configuration.
[7] For systems configured with more than 3 GB of memory and a 32-bit operating system, all memory may not be available due to system resource requirements. Addressing memory above 4 GB requires a 64-bit operating system. Memory modules support data transfer rates up to 4800 MT/s; actual data rate is determined by the system's configured processor. See processor specifications for supported memory data rate. All memory slots are customer accessible/upgradeable.
[8] All memory slots are customer accessible/upgradeable.
[9] HP Manageability Integration Kit can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html .
[10] For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows) of disk is reserved for system recovery software.
[11] Sold separately or as an optional feature.
[13] Only Available on 35W processor.
[16] The HP Mini Conferencing PC with Zoom Rooms does not operate under 6GHz band. The products are compatible with 6GHz and other routers, sold separately, and will operate in 2.4Ghz and 5GHz bands.. The actual throughput depends on network condition and router configuration. 6GHz band support requires Windows 11 IoT.
[17] HP Sure Sense is available on select HP PCs with Windows 10 Pro, Windows 10 Enterprise, Windows 11 Pro, or Windows 11 Enterprise OS.
[18] HP Sure Start is available on select HP PCs and requires Windows 10 and higher.
[19] HP Wolf Security for Business requires Windows 10 or 11 Pro or higher, includes various HP security features and is available on HP Pro, Elite, RPOS and Workstation products. See product details for included security features.
[20] Poly Lens Desktop requires a Windows OS.
[21] Recycled plastic content percentage is based on the definition set in the IEEE 1680.1-2018 standard.
[22] 100% outer box packaging made from sustainably sourced certified and recycled fibers. Fiber cushions made from 100% recycled wood fiber and organic material. Any plastic cushions are made from >90% recycled plastic.
