| HPP-A01KCAA |
|
|
|

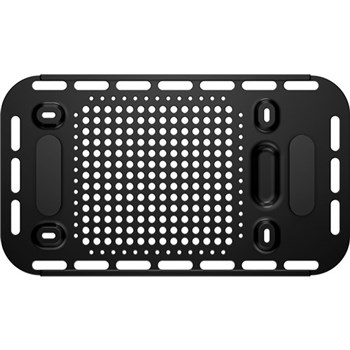

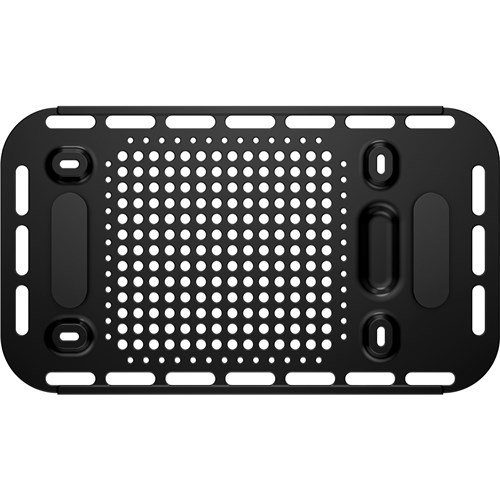

| Poly Studio G62 Video Conferencing System With Mounting Plate Kit |
| Poly Studio G62 conferencing system features easy setup, seamless integration, and the customization you need. Powerful collaboration tools? Done. Advanced audiovisual options? Check. A flexible setup? You got it[1]. |
|
|
| Designed to connect. Made to expand |
|
| Tailor every large conference room to your needs. Connect your Poly peripherals and controllers to the Poly Studio G62 video conferencing system and transform spaces with a modular solution designed for streamlined versatility[1]. |
|
|
| Customize your rooms with confidence |
|
| Create your ideal large room setup with the Poly Studio G62 video conferencing system. Expand your setup as you see fit without worrying about processing power by adding more A/V devices for a richer, more engaging experience[1]. |
|
|
| Easy to install. Easier to connect |
|

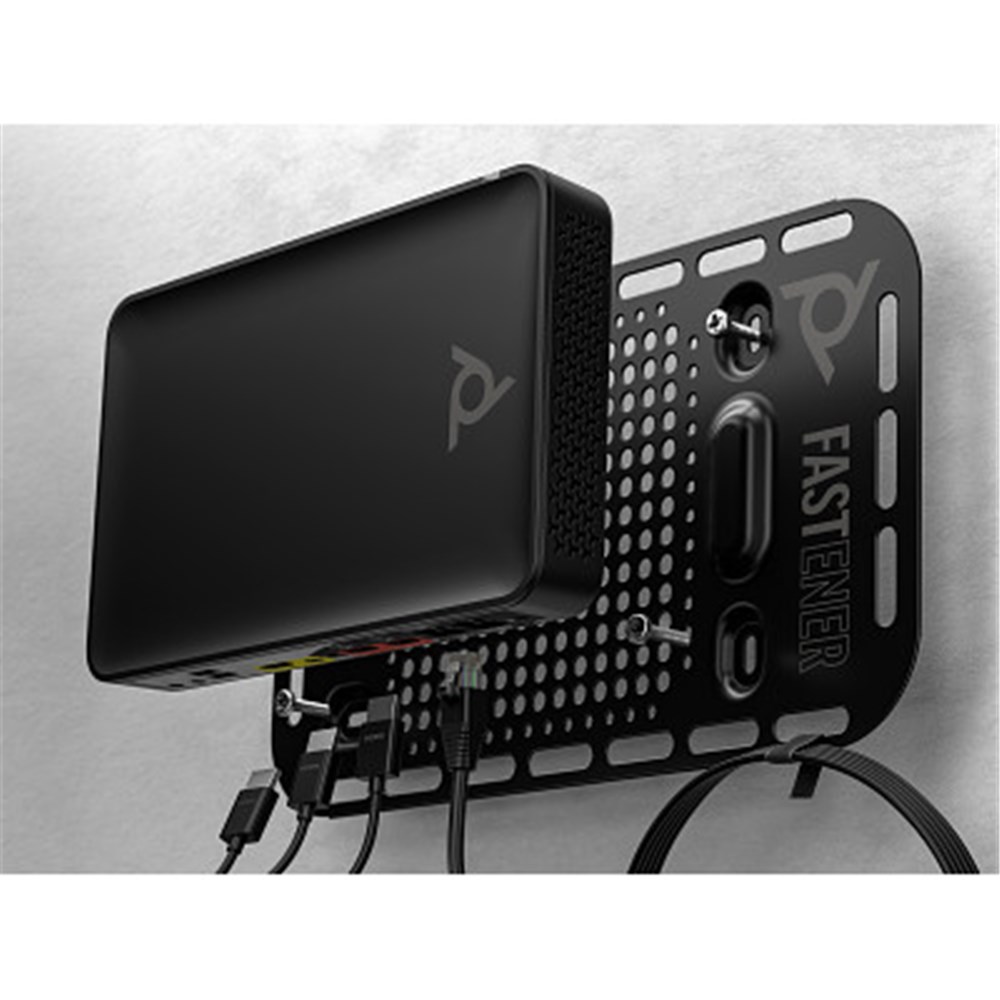

| Forget complex installations. With magnetic mounts and powered by PoE+, you can rest easy knowing installation is a breeze. Plus, you can easily manage select 3rd party control systems with robust APIs while using the Poly TC10 in the room[1]. |
|
|
| [1] A complete system includes the Poly Studio G62 paired with Poly camera and audio peripherals. Compatible products include Poly Studio E60 camera, Poly Studio E360 companion camera, Poly Studio E70 camera, Poly Studio R30 USB video bar and Poly IP table and ceiling microphones. Compatible devices need to be network connected for management. |
|
|
| KEY SPECIFICATIONS |
|
|
|
| Audio |
Keyboard noise reduction; MMode; NoiseBlockAI; Sound Reflection Reduction; Instant adaptation echo cancellation; Acoustic Fence; Audio error concealment; Siren Lost Packet Recovery technology; Poly Stereo Audio; Active Lip Synchronization; Automatic gain control (AGC) |
| Audio standards |
22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A |
| Certifications and compliances |
CB; FCC; IC; RCM; VCCI; UL/CSA; CE; WEEE; UKCA; MIC |
| Certified collaboration software |
Microsoft Teams; Zoom; Poly Video |
| Color |
Black |
| Compatible Operating Systems |
Android |
| Content sharing |
Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input; USB Type-C® |
| Content video resolution (input) |
UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); SXGA (1280 x 1024); HD (1280 x 720); XGA (1024 x 768); SXGA+ (1400 x 1050) |
| Content video resolution (output) |
UHD (3840 x 2160); HD (1920 x 1080); HD (1280 x 720) |
| Country of origin |
Made in Laos |
| Digital signage |
Appspace; Raydiant; Zoom |
| Dimensions (W x D x H) |
247.7 x 152.4 x 34.9 mm |
| Interoperability |
Microsoft Teams, Zoom certified; Support for native 3rd party applications including Dialpad, GoToRoom, RingCentral and Tencent |
| Management Software |
Poly Lens |
| Manufacturer Warranty |
Poly standard one-year limited warranty |
| Material Type for item |
FERT |
| Microphone type |
Up to three IP microphone arrays |
| Multiple order quantity |
1 |
| Network capabilities |
IPv4; IPv6; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; 100/1G/2.5G; IP REST & CLI API support; Simple Certificate Enrollment Protocol (SCEP) |
| Non-Operating Humidity Range |
5 to 95% |
| Non-operating temperature - Celsius |
-40 to 70 °C |
| Operating altitude |
3,048 m |
| Operating humidity range |
15 to 80% |
| Operating temperature range |
32 to 104 °F |
| Operating voltage |
50 – 57 V, 30 W (class 4), 45 W (class 5), 60 W (class 6) |
| Package dimensions (W x D x H) |
406.4 x 254 x 133.4 mm |
| Package weight |
1390 g |
| People video resolution |
4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 60 fps from 1740 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 60 fps from 832 Kbps; 720p, 30 fps from 512 Kbps; 4K, 30 fps from 3200 Kbps |
| Ports |
2 USB Type-A 5Gbps signaling rate; 1 HDMI-in 2.0; 1 line in; 1 line out; 2 HDMI-out 2.0 (video); 1 PoE+ 802.3at-class 4 LAN RJ-45; 1 LLN RJ-45; 1 USB Type-C® 5Gbps signaling rate (with DisplayPort™ Alt Mode for video input, 2 lanes 4K @ 30 Hz) |
| Power |
Power over Ethernet (PoE+), compatible with IEEE 802.3at/bt class 4, 5, 6 switch, or PoE injector |
| Power supply type |
External |
| Registration required |
No |
| RMN number |
PBJ-STG-62R; PBJ-STG-62N |
| Security management |
802.1x support |
| Smart camera technology |
People framing; Group framing; Presenter tracking; DirectorAI perimeter; Speaker framing |
| Sustainable impact specifications |
80% post-consumer recycled plastic; Packaging is recyclable; At least 20% recycled metal |
| UNSPSC code |
45111902 |
| UPC number |
1.98123E+11 |
| Video frame rate |
30 fps (up to 4K resolution) |
| Video standards |
H.264 AVC; H.264 High Profile; H.265; H.264 SVC; H.263; RTV; H.263 video error concealment; H.264 video error concealment; H.239 Polycom People+Content |
| Weight |
798 g |
| What's in the box |
Ethernet cable; Warranty card; HDMI cable; Poly Studio G62 |
| Wireless technologies |
802.11 a/b/g/n/ac/ax Wireless; Bluetooth® 5.1; Multiple-Input Multiple-Output (MIMO) |
|
|
