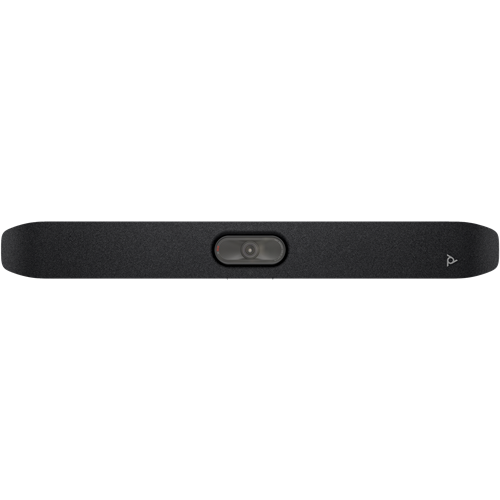

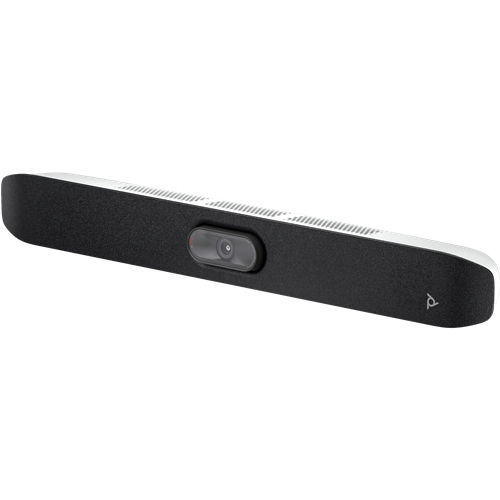

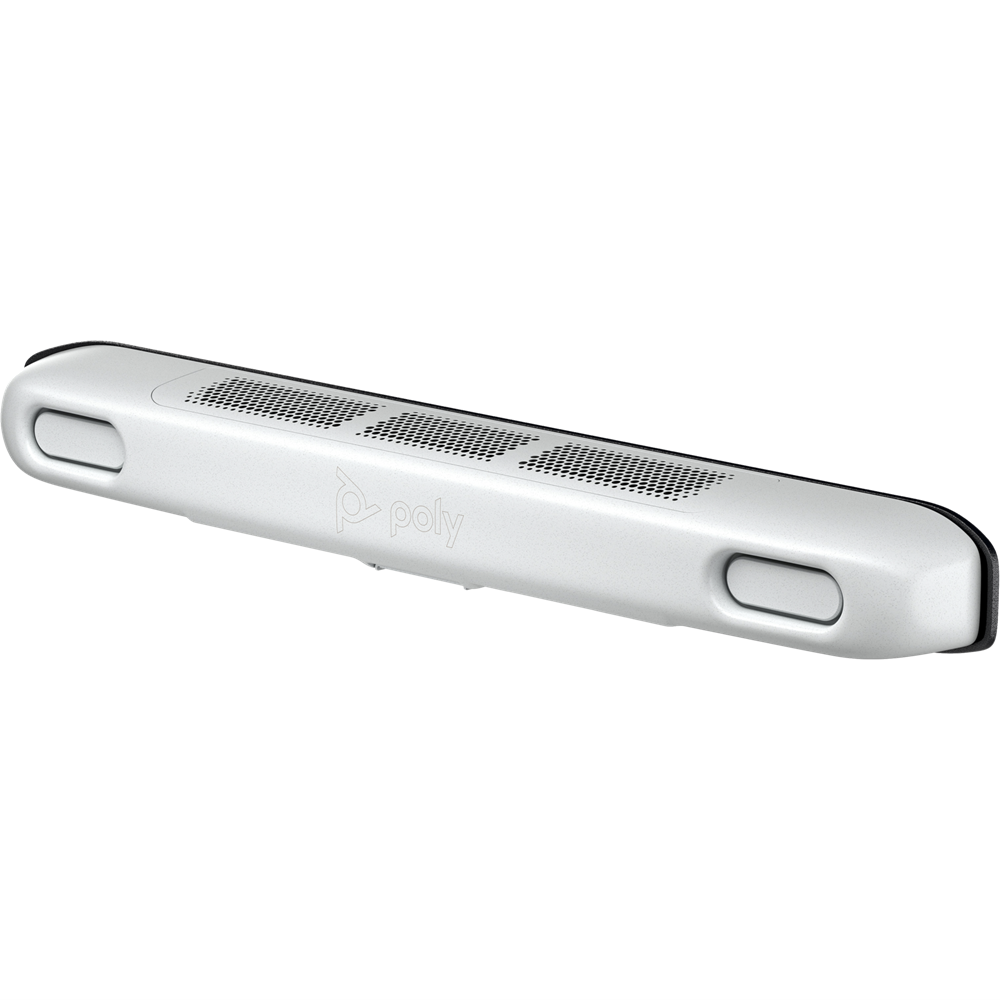

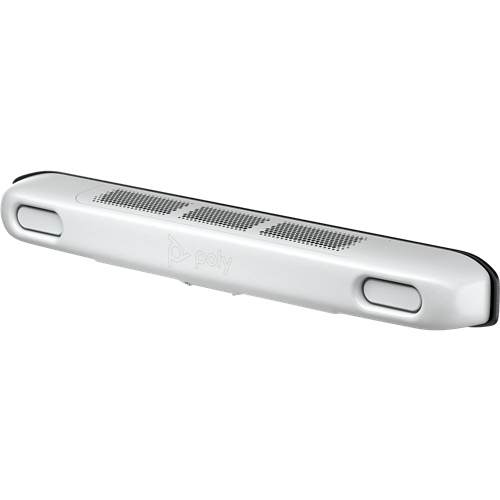

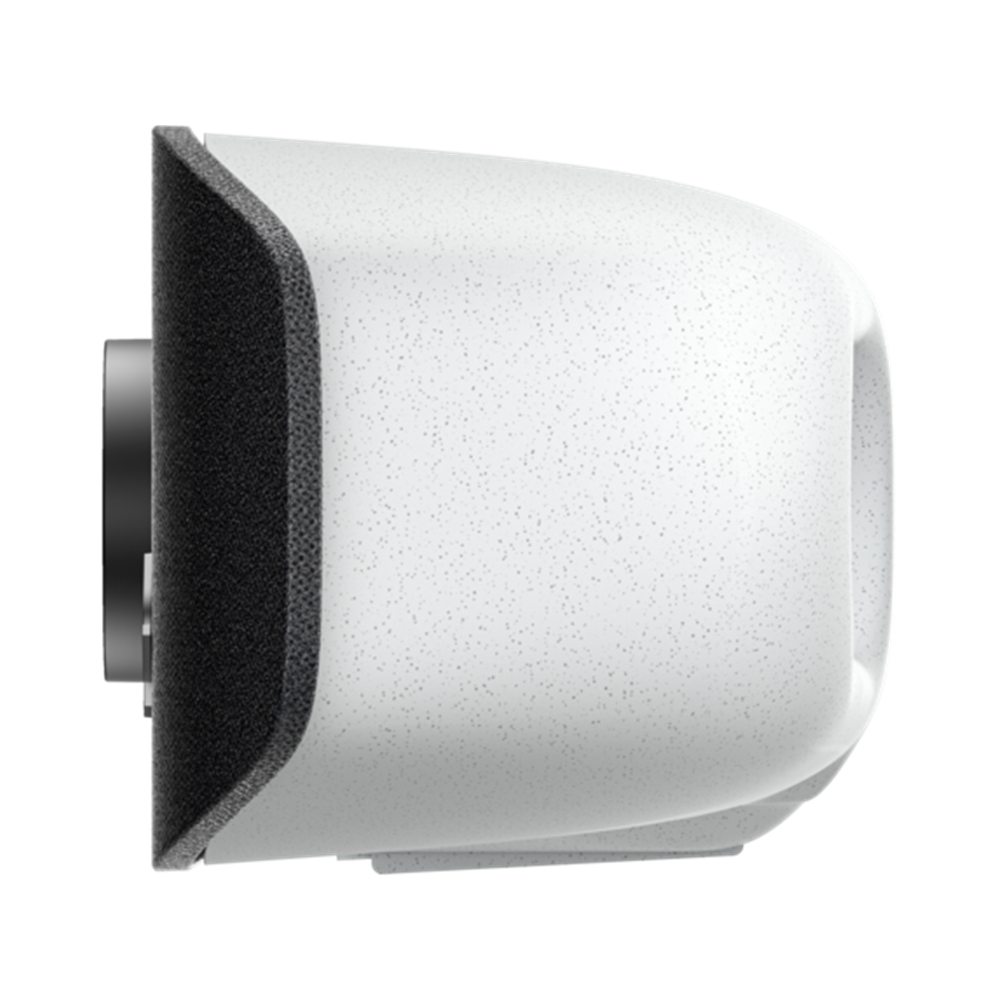

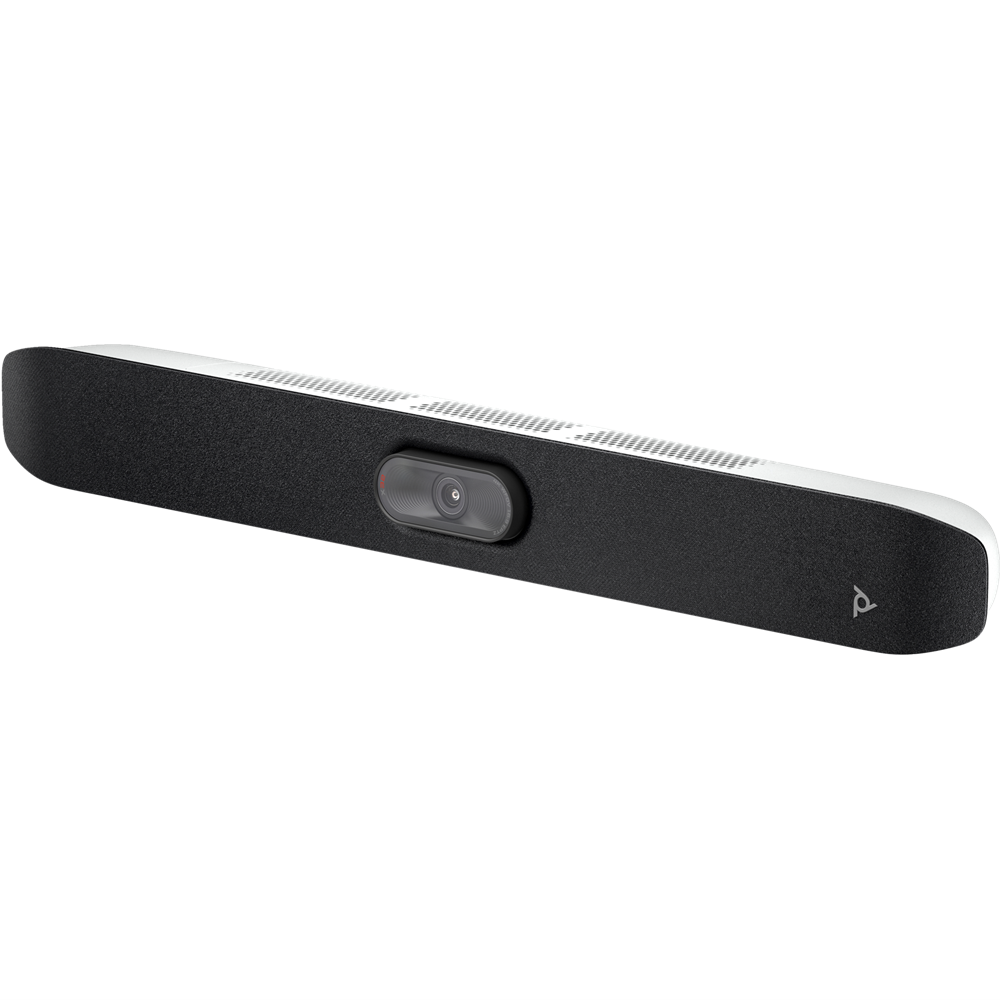

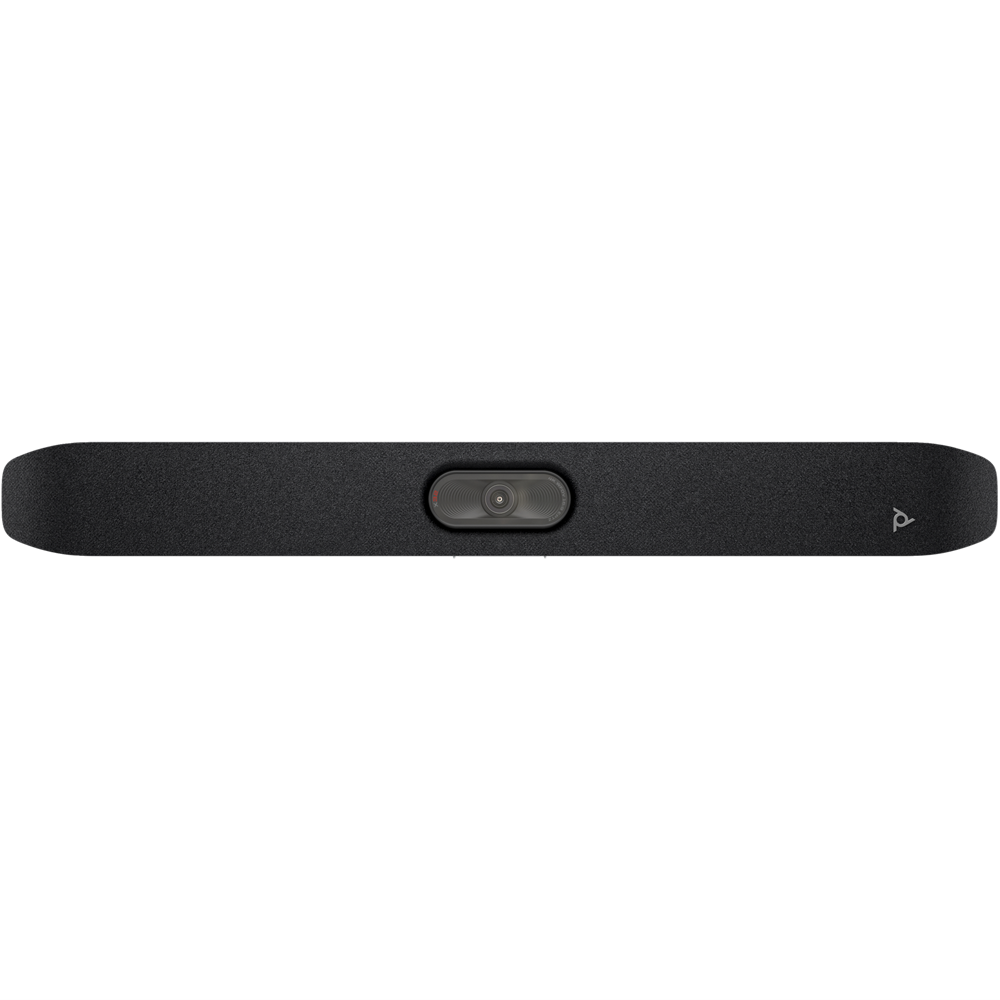

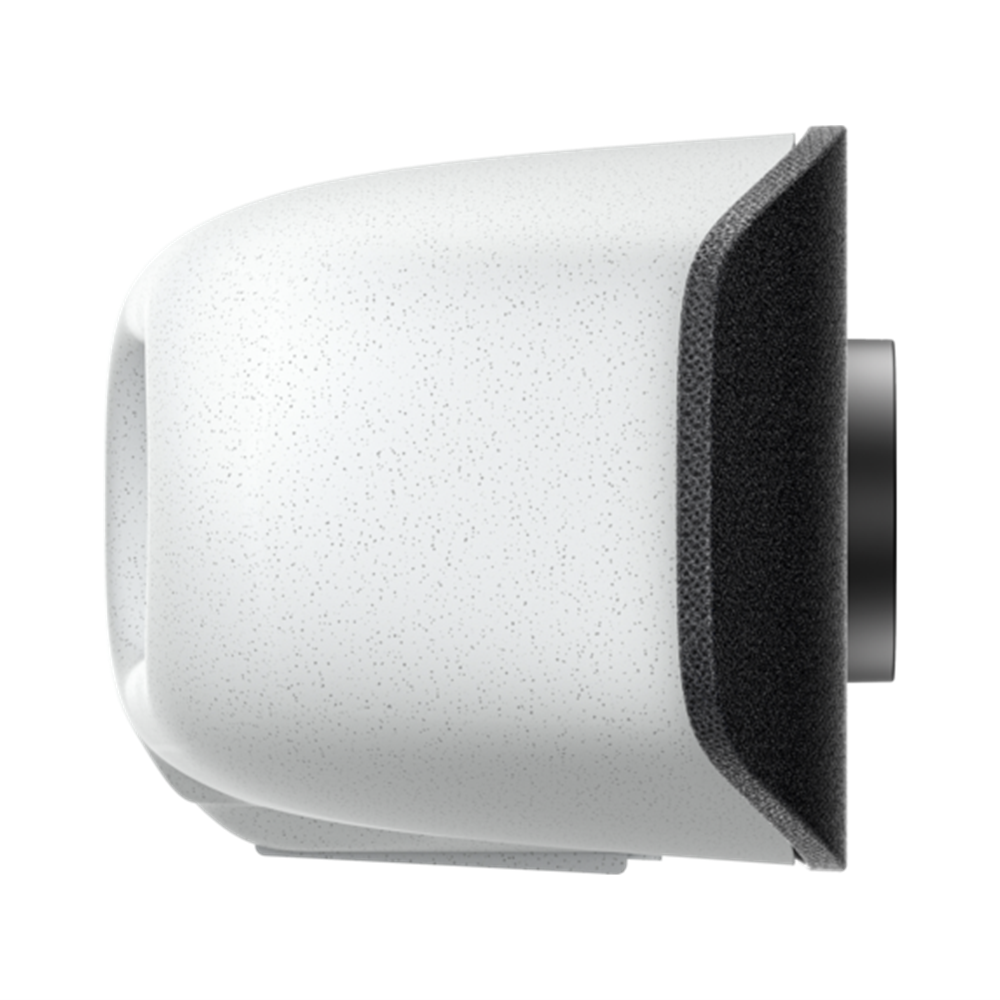

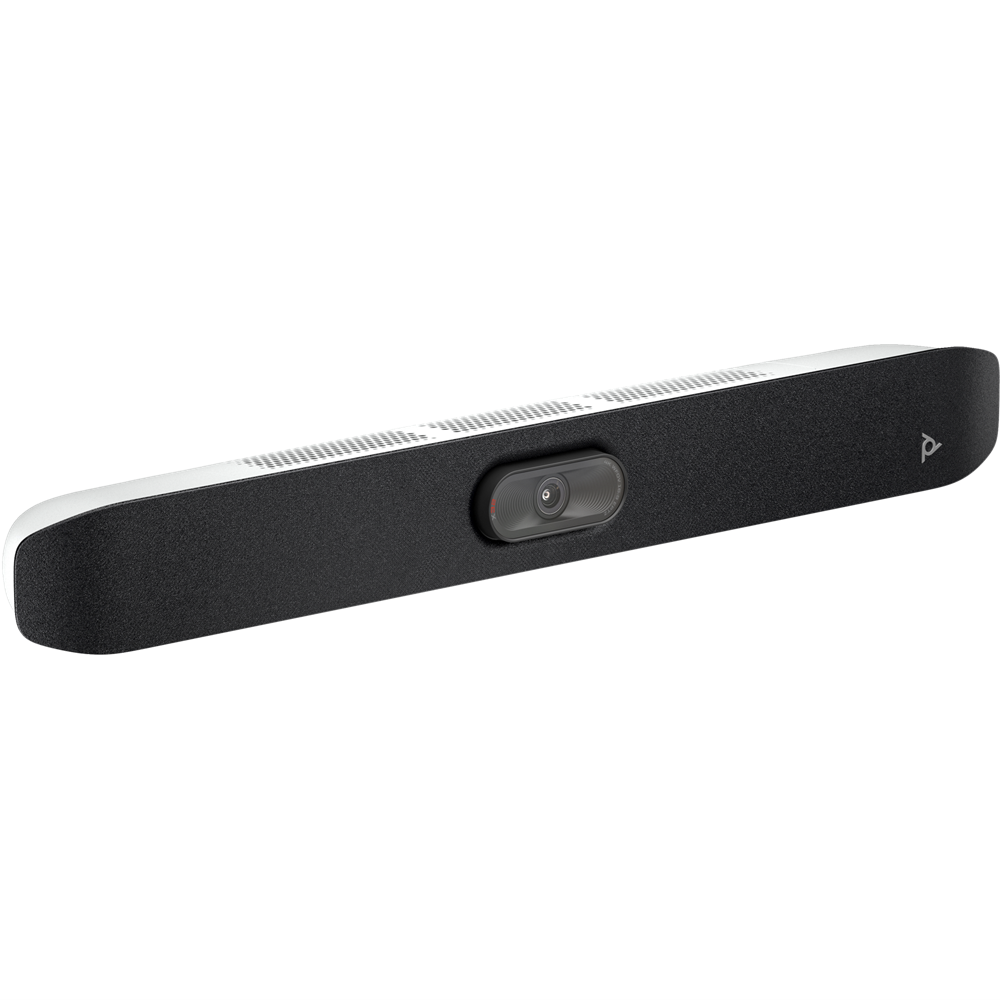

Poly Studio X32 All-In-One Video Bar
Small rooms, big conversations. Simplify the moment with the all-in-one Poly Studio X32 video bar. Deliver an immersive and inclusive experience with advanced audio and video AI technology and connect instantly with built-in video conferencing apps.
Focus. Clarity. Connection
When everyone feels seen and heard, ideas flourish—even in small rooms. Poly audio and video innovations deliver an immersive meeting experience that keeps the focus solely on participants. No distractions, just effortless collaboration.
All-in-one and ready to go
Intimate huddles are about connecting with people, not fumbling with cables. Simplified one-touch join means you get a familiar and consistent user experience on nearly all the leading cloud video services.
Maximize meeting time, minimize setup
Streamline your conferencing experience with this PoE-enabled all-in-one video bar, purposely built for smaller spaces. Enjoy flexible configuration options and easy management through Poly Lens.
Built for a better tomorrow
Containing at least 50% recycled plastics[1] and shipped in paper-based packaging[2], this all-in-one video bar enables more impactful meetings in small rooms with less impact on the environment.
KEY SPECIFICATION
|
Audio
|
Poly NoiseBlockAI technology; Poly Acoustic Fence technology; Automatic gain control (AGC)
|
|
Audio standards
|
22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A
|
|
Camera resolution
|
2160p, 4K UHD (3840 x 2160)
|
|
Camera type
|
Single-lens
|
|
Certified collaboration software
|
Microsoft Teams; Zoom
|
|
Color
|
Black
|
|
Content sharing
|
Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input
|
|
Content video resolution (input)
|
UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600)
|
|
Content video resolution (output)
|
UHD (3840 x 2160); HD (1280 x 720); QHD (2560 x 1440); FHD (1920 x 1080); SD (640 x 360)
|
|
Country of origin
|
Laos(ABT, ABG); Mexico(ACJ, ABU, AR6, ABA, AC3, ABB, AB2)
|
|
Diagonal field of view (dFoV)
|
132°
|
|
Digital signage
|
Appspace; Raydiant
|
|
Dimensions (W x D x H)
|
576.8 x 66.1 x 74.8 mm
|
|
Heat dissipation cooling
|
55 BTU/h
|
|
Horizontal field of view (hFoV)
|
120°
|
|
Interoperability
|
Microsoft Teams, Zoom certified; All cloud service providers through Poly Video App mode; USB Device mode
|
|
Lens cover capabilites
|
Attachable
|
|
Management Software
|
Poly Lens
|
|
Manufacturer Warranty
|
Poly standard one-year limited warranty
|
|
Material Type for item
|
FERT
|
|
Microphone pickup range (metric)
|
Up to 4.5 m
|
|
Microphone type
|
Four MEMS microphones
|
|
Multiple order quantity
|
1
|
|
Network capabilities
|
IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP)
|
|
Non-Operating Humidity Range
|
5 to 95%
|
|
Non-operating temperature - Celsius
|
-40 to 70 °C
|
|
Operating altitude
|
4,877 m
|
|
Operating humidity range
|
15 to 80%
|
|
Operating temperature range
|
0 to 40 °C
|
|
Operating voltage
|
42.5 V - 57 V
|
|
Package dimensions (W x D x H)
|
118 x 194 x 667 mm
|
|
Package weight
|
3000 g
|
|
People video resolution
|
4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 30 fps from 512 Kbps
|
|
Physical security
|
Standard Kensington lock slot
|
|

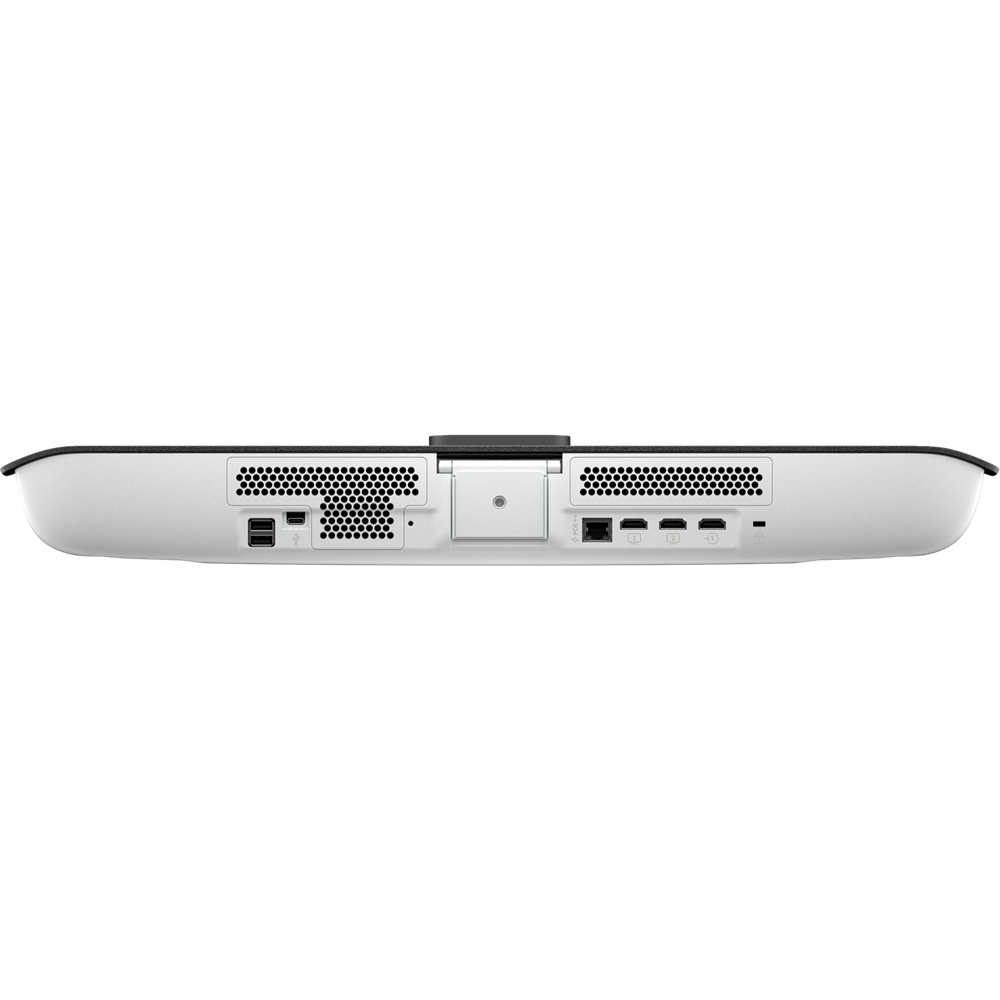

Ports
|
1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 1 HDMI-in 1.4 (video and audio); 2 HDMI-out 2.0 (video); 1 RJ-45 (10/100/1000 Mbps) Ethernet interface (supporting PoE++ power supply)
|
|
Power
|
Power over Ethernet (PoE++) injector or switch, compatible with IEEE 802.3bt class 6
|
|
Power supply type
|
External
|
|
Registration required
|
No
|
|
RMN number
|
PATX-STX-32R
|
|
Security management
|
AES 128 bits encryption; AES 256 bits encryption; Media encryption (H.323, SIP); H.235.6 support; Authenticated access to admin menus, web interface, and APIs; BFCP; Local account password policy configuration; Security profiles; Secure defaults; Remote logging with support for TLS; Active directory external authentication
|
|
Sensitivity (microphone)
|
-26 dB FS/Pa
|
|
Sensitivity (speaker)
|
77 dB (1 W/1 m)
|
|
Signal-to-noise ratio
|
63 dB
|
|
Smart camera technology
|
Poly DirectorAI with speaker framing, people framing, group framing
|
|
Speaker bandwidth
|
100 Hz to 20 kHz
|
|
Speaker output power
|
2 x 5 W
|
|
Speaker type
|
Dual speakers
|
|
Special features
|
Auto sensing power supply
|
|
Sustainable impact specifications
|
Contains at least 50% recycled plastic content; Fabric contains 100% recycled PET; Paper-based packaging derived from at least 70% recycled materials
|
|
Total camera resolution (megapixels)
|
20 MP
|
|
UNSPSC code
|
45111902
|
|
UPC number
|
(ABG) 198828937469; (UUF) 199251229039
|
|
Video frame rate
|
6.25–30 fps (up to 4K resolution at 15 fps in call)
|
|
Video standards
|
H.264 AVC; H.265
|
|
Weight
|
1140 g
|
|
What's in the box
|
Ethernet cable; Privacy cover; HDMI cable; Display mounting clamp; Poly Studio X32
|
|
Wireless technologies
|
Wi-Fi 802.11a/b/g/n/ac/ax (MIMO) Multi-channel Concurrency; Bluetooth® 5.0
|
|
Zoom capability
|
5x digital
|
[1] TAA, JITC and no radio versions available.
[2] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT standard for computers, IEEE 1680.1-2018 standard.
[3] Percent of paper-based packaging made from sustainably sourced, certified, and recycled fibers.
[4] Requires downloadable software on Poly.com/lens. Host PC requires Windows 10 or higher.
[5] Compatibility with native applications and meeting services is limited by each 3rd party service’s own terms and certification conditions; consult each service provider's terms as needed.
