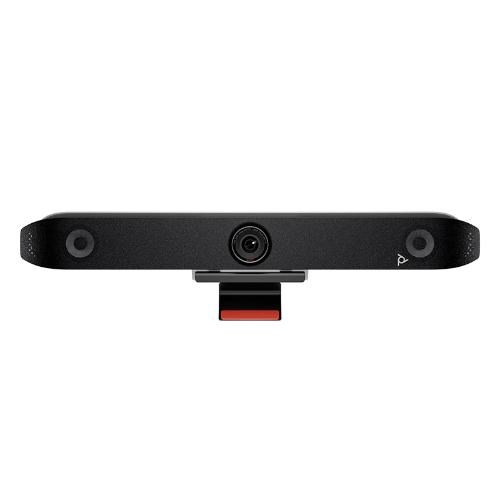

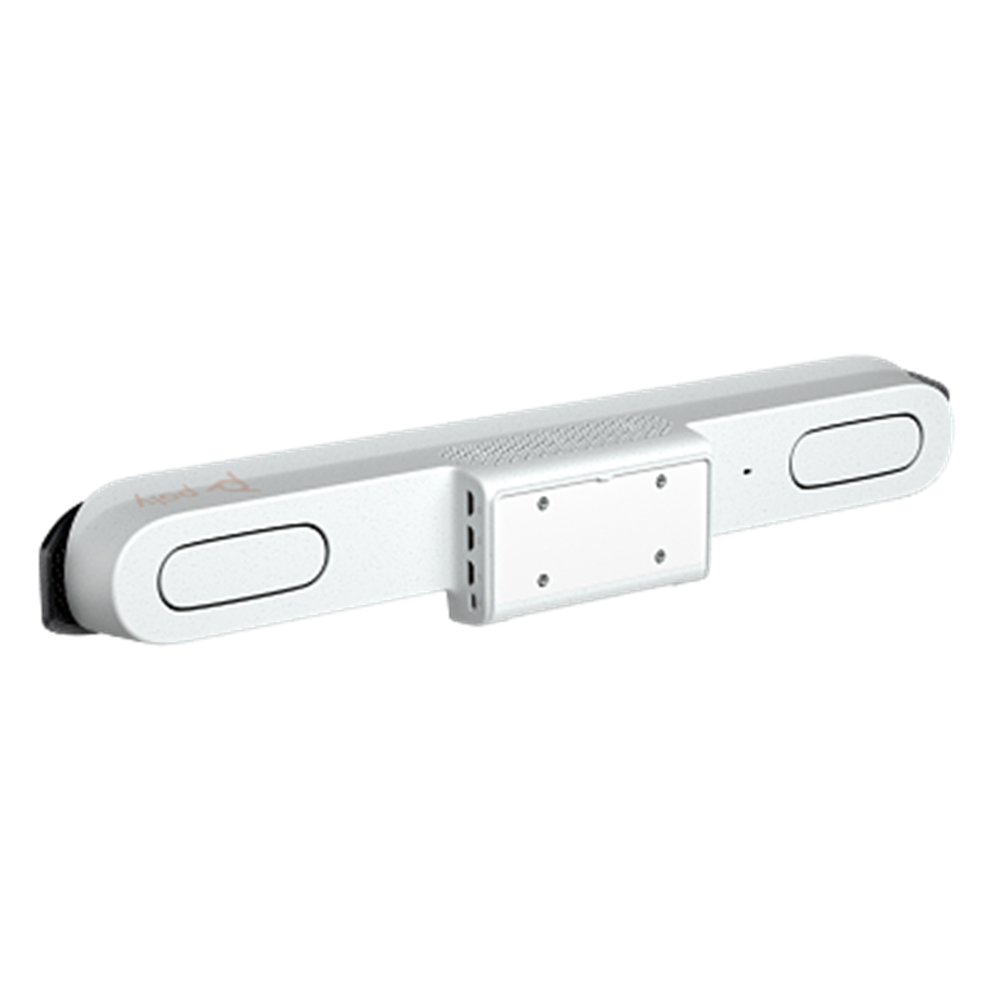

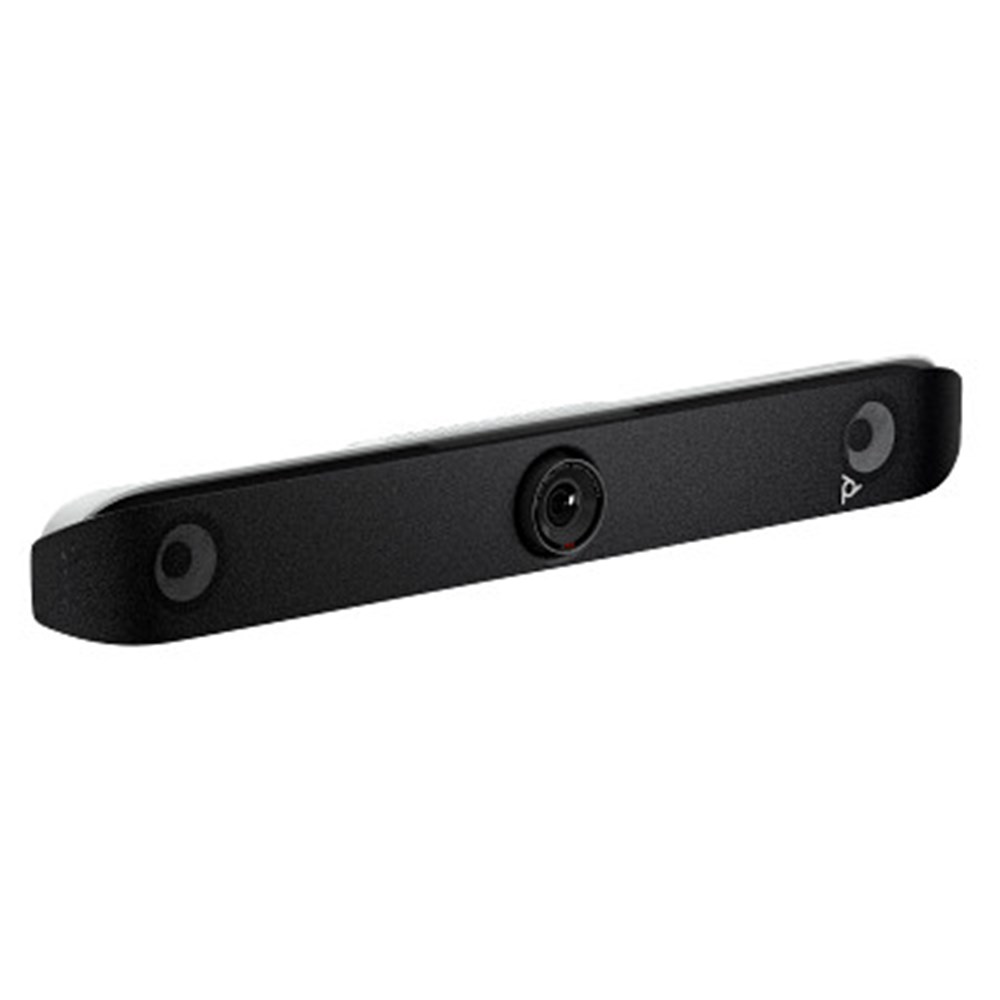

Poly Studio X52 All-In-One Video Bar No Radio or Power Cord GSA/TAA
Specifically engineered to improve video conferencing experiences–the Poly Studio X52 all-in-one video bar simplifies and enhances meetings. Bring meeting equality to attendees both in and out of the room with innovative audio and video experiences.
Choose how you join a call
Provide users all the flexibility they need to join any cloud video call with built-in apps, standards-based protocols, or by using their personal devices connected to the room system.
Everyone is seen and heard
Ensure everyone is represented equally on the call with quality audio and video paired innovative technologies by Poly that include pinpoint-accurate AI-enhanced automatic framing and smart audio filtering.
Enterprise-grade management
Poly Lens, remote device management, gives you better visibility into workspaces across the entire organization. IT professionals can remotely monitor and troubleshoot Poly devices as well as streamline applying bulk software and policies.
KEY SPECIFICATIONS
|
Audio
|
Full duplex audio; Acoustic echo cancellation; Poly NoiseBlockAI technology; Poly Acoustic Fence technology; Automatic gain control (AGC)
|
|
Audio standards
|
22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A
|
|
Camera range (metric)
|
Up to 6.1 m
|
|
Camera resolution
|
2160p, 4K UHD (3840 x 2160)
|
|
Camera type
|
Single-lens
|
|
Certified collaboration software
|
Zoom; Microsoft Teams; Google Meet
|
|
Color
|
Black
|
|
Content sharing
|
Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input
|
|
Content video resolution (input)
|
UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600)
|
|
Content video resolution (output)
|
UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); SXGA+ (1400 x 1050); SXGA (1280 x 1024); HD (1280 x 720); XGA (1024 x 768)
|
|
Country of origin
|
Made in Laos
|
|
Diagonal field of view (dFoV)
|
110°
|
|
Digital signage
|
Appspace; Raydiant
|
|
Dimensions (W x D x H)
|
769.5 x 115.2 x 103 mm
|
|
ECCN
|
5A992
|
|
Heat dissipation cooling
|
65 BTU/h
|
|
Horizontal field of view (hFoV)
|
95°
|
|
HTS code
|
8517620090
|
|
Interoperability
|
Google Meet, Microsoft Teams, Zoom certified; Support for native 3rd party applications including Dialpad, GoToRoom, RingCentral and StarLeaf; All cloud service providers through Poly Video App mode; USB Device mode
|
|
Lens cover capabilites
|
Attachable
|
|
Management Software
|
Poly Lens
|
|
Manufacturer product number
|
G7200-87820-125
|
|
Manufacturer Warranty
|
Poly standard one-year limited warranty
|
|
Material Type for item
|
FERT
|
|
Microphone pickup range (metric)
|
Up to 6.09 m
|
|
Microphone type
|
Two MEMS microphones; Two second-order microphones
|
|
Multiple order quantity
|
1
|
|
Network capabilities
|
IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP)
|
|
Non-Operating Humidity Range
|
5 to 95%
|
|
Non-operating temperature - Celsius
|
-40 to 70 °C
|
|
Operating altitude
|
4,877 m
|
|
Operating humidity range
|
15 to 80%
|
|
Operating temperature range
|
0 to 40 °C
|
|
Operating voltage
|
37 VA @ 120 V @ 60 Hz; 37 VA @ 230 V @ 50/60 Hz; 25 W (heavily loaded); 8 W (idle/sleep)
|
|
Package weight
|
300 g
|
|
People video resolution
|
4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 60 fps from 1740 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 60 fps from 832 Kbps; 720p, 30 fps from 512 Kbps
|
|
Physical security
|
Standard Kensington lock slot
|
|
Ports
|

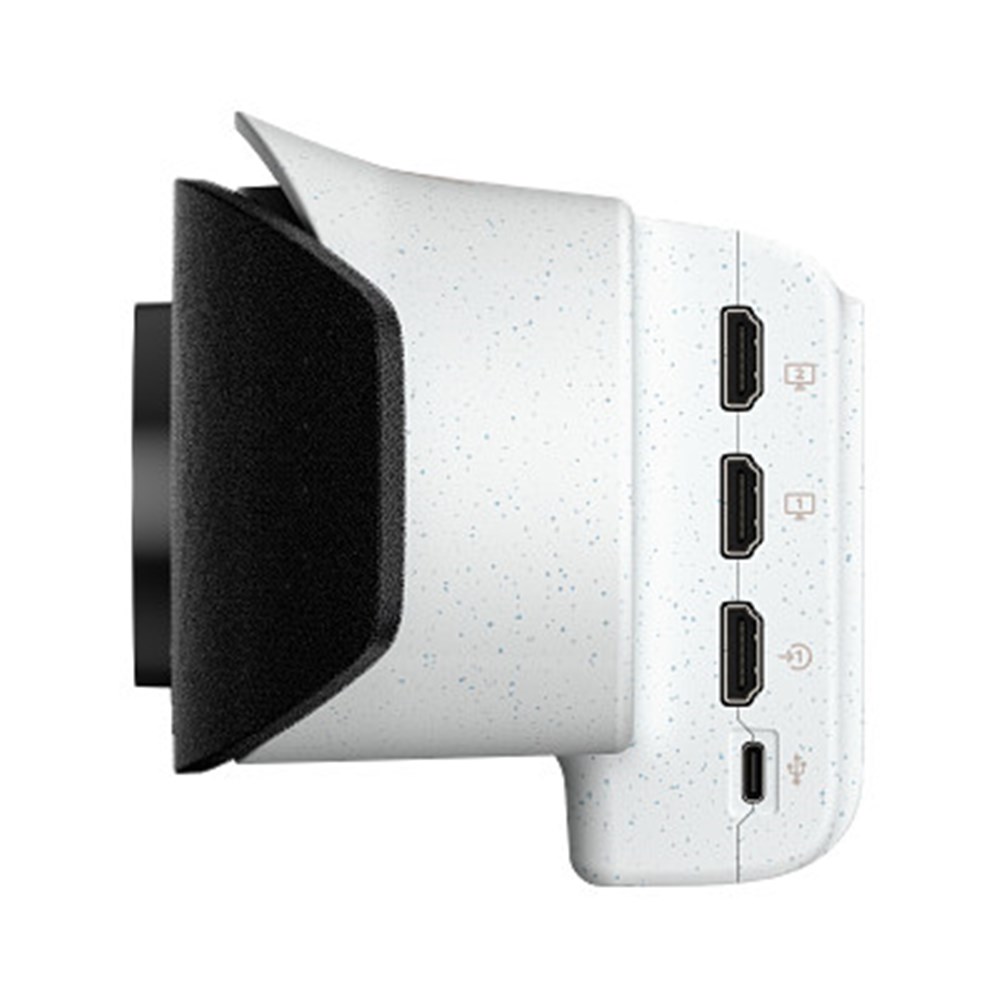

1 HDMI-in 2.0 (video and audio); 2 HDMI-out 2.0 (video); 1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 1 RJ-45; 1 line in (optional microphone)
|
|
Power supply type
|
External; Auto sensing
|
|
Registration required
|
No
|
|
Security management
|
AES 128 bits encryption; AES 256 bits encryption; H.235.6 support; Authenticated access to admin menus, web interface, and APIs; Local account password policy configuration; Security profiles; Local account and login port lockout; Secure defaults; Remote logging with support for TLS; Active directory external authentication; Binary Floor Control Protocol (BFCP)
|
|
Sensitivity (speaker)
|
79 dB
|
|
Smart camera technology
|
People framing; Group framing; DirectorAI perimeter; Speaker framing
|
|
Speaker output power
|
2 x 20 W (RMS)
|
|
Speaker type
|
Dual speakers
|
|
Total camera resolution (megapixels)
|
20 MP
|
|
UNSPSC code
|
45111902
|
|
Video frame rate
|
30 fps
|
|
Video standards
|
H.264 AVC; H.264 High Profile; H.265; H.239
|
|
Weight
|
2.54 kg
|
|
What's in the box
|
Ethernet cable; Monitor clamp; AC power adapter; HDMI cable; Poly Studio X52
|
|
Zoom capability
|
5x digital
|
[1] Requires downloadable software on Poly.com/lens. Host PC requires Windows 10 or higher.
[2] Compatibility with native applications and meeting services is limited by each 3rd party service’s own terms and certification conditions; consult each service provider's terms as needed.
