| Participants in. Distractions out |
Make your presence felt with Poly DirectorAI. Through AI and machine learning, an array of framing modes enhance your meetings by better capturing human expression. Remove unwanted distractions and confusion over who says what. |
| All eyes on the action |
Distorted visuals can take away from having natural, life-like hybrid meetings. Enjoy rich and sharp images with the dual 4K 20MP cameras with 70° and 120° fields of view, ideal for large-sized meeting rooms. |
| Never miss a beat |
Set the stage for effortless collaboration. With an innovative acoustic chamber design, this all-in-one video bar delivers immersive, crisp sound across the room, while the beamforming microphone array makes sure every voice is heard. |
| Zero in on the conversation |
Experience audio quality that fuels collaboration and productivity. Using advanced AI and machine learning, Poly audio innovations provide noise cancellation and voice clarity creating a focused call that brings everyone together. |
| Adapts to your needs |
Expand your video conferencing setup seamlessly by connecting additional cameras, microphones and other peripherals over Ethernet for a simple, cost-effective, and scalable setup. For a more immersive experience, connect a third display via USB |
| Choose your app. Join the call. Done |

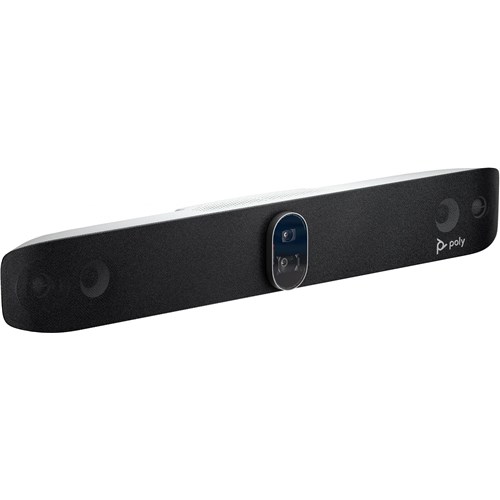

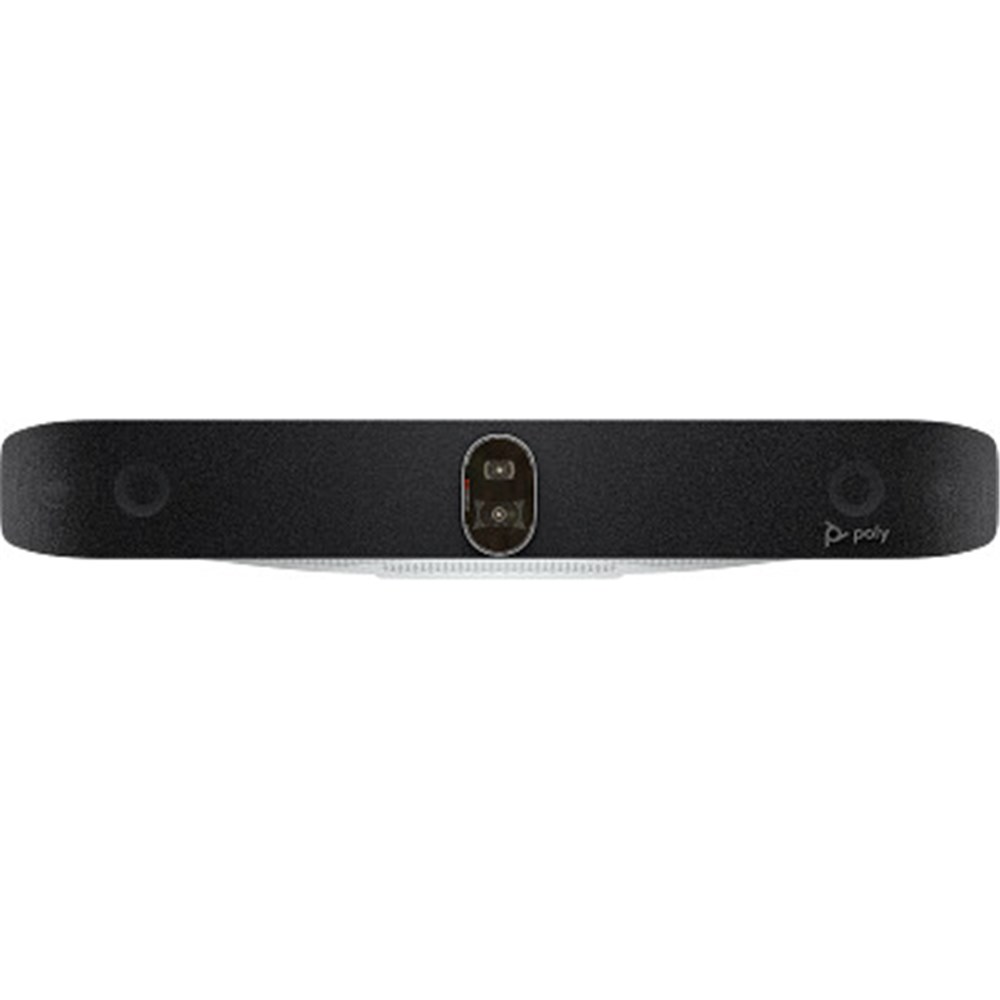

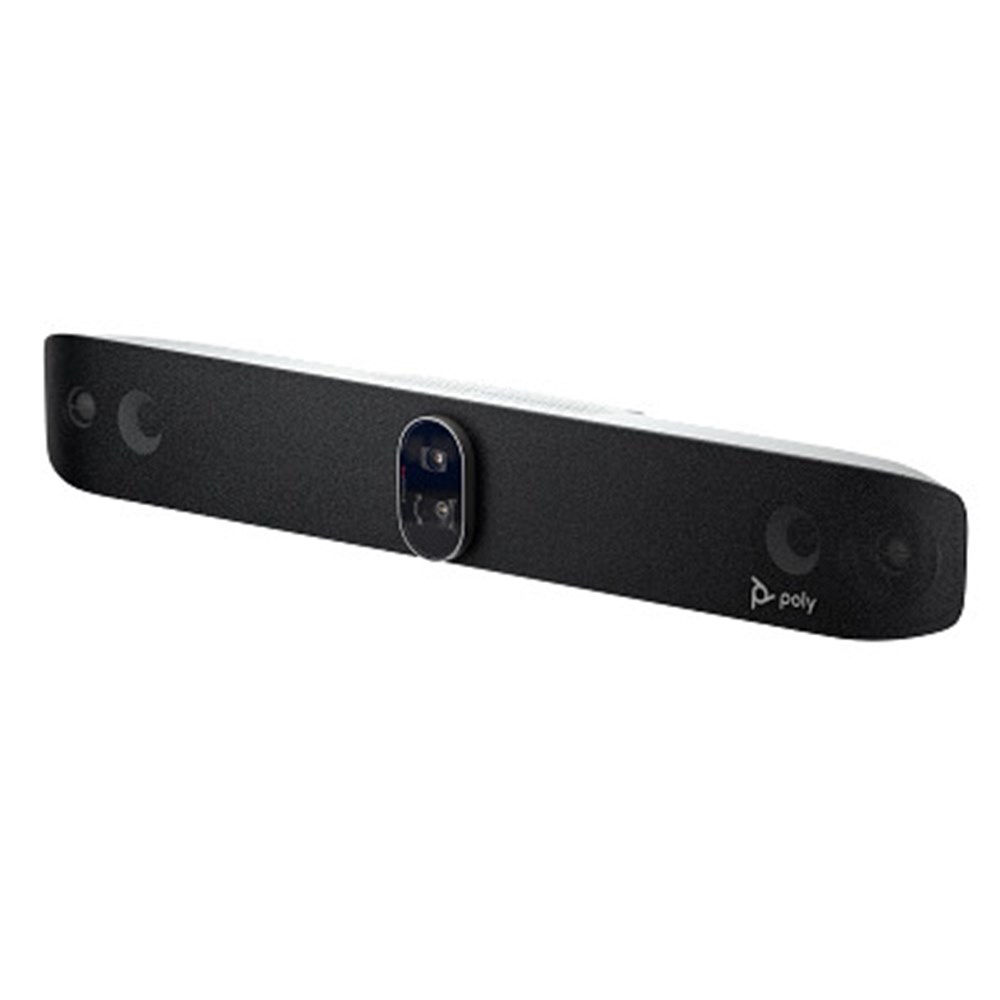

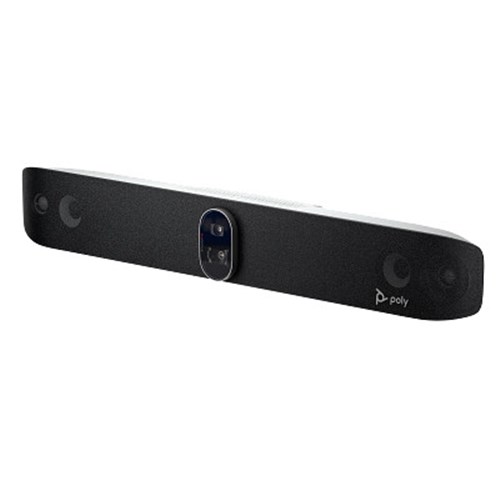

No need to learn how to use a new video call platform — the Poly Studio X72 is our most flexible all-in-one video bar to date, working with the apps you already know so you can join calls seamlessly without missing a beat. |
| Every device, under your control |
More visibility and easier management make the IT team happier. Deploy, configure and stay up-to-date on the performance of your all-in-one video bar and connected Poly devices with Poly Lens cloud-based management software. |
| HPP-A4LZ8AA |
|
|
|
| KEY SPECIFICATIONS |
|
|
|
| Audio |
Poly NoiseBlockAI technology; Poly Acoustic Fence technology; Automatic gain control (AGC) |
| Audio standards |
22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A |
| Camera resolution |
2160p, 4K UHD (3840 x 2160) |
| Camera type |
Dual-lens |
| Certified collaboration software |
Microsoft Teams; Zoom |
| Color |
Black |
| Content sharing |
Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input |
| Content video resolution (input) |
UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600) |
| Content video resolution (output) |
UHD (3840 x 2160); WUXGA (1920 x 1200); HD (1920 x 1080); WSXGA+ (1680 x 1050); SXGA+ (1400 x 1050); SXGA (1280 x 1024); HD (1280 x 720); XGA (1024 x 768) |
| Country of origin |
Laos(ACJ, ABB, ABA, ABJ, AB0, ABT, AB2, AC4, AB1, ABG, UUZ, UUF, ABU, ABM) |
| Diagonal field of view (dFoV) |
140° (wide); 78° (narrow) |
| Digital signage |
Appspace; Raydiant |
| Dimensions (W x D x H) |
840.18 x 135.4 x 117.93 mm |
| Heat dissipation cooling |
65 BTU/h |
| Horizontal field of view (hFoV) |
120° (wide); 70° (narrow) |
| Interoperability |
Microsoft Teams, Zoom certified; All cloud service providers through Poly Video App mode; USB Device mode |
| Lens cover capabilites |
Integrated |
| Management Software |
Poly Lens |
| Manufacturer Warranty |
Poly standard one-year limited warranty |
| Material Type for item |
FERT |
| Microphone pickup range (metric) |
Up to 7.62 m |
| Microphone type |
Two MEMS microphones; Two second-order microphones |
| Multiple order quantity |
1 |
| Network capabilities |
IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP) |
| Non-Operating Humidity Range |
5 to 95% |
| Non-operating temperature - Celsius |
-40 to 70 °C |
| Operating altitude |
4,877 m |
| Operating humidity range |
15 to 80% |
| Operating temperature range |
0 to 40°C |
| Operating voltage |
37 VA @ 120 V @ 60 Hz; 37 VA @ 230 V @ 50/60 Hz |
| Package dimensions (W x D x H) |
920 x 163 x 228 mm |
| Package weight |
6480 g |
| People video resolution |
4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 30 fps from 512 Kbps |
| Physical security |
Standard Kensington lock slot |

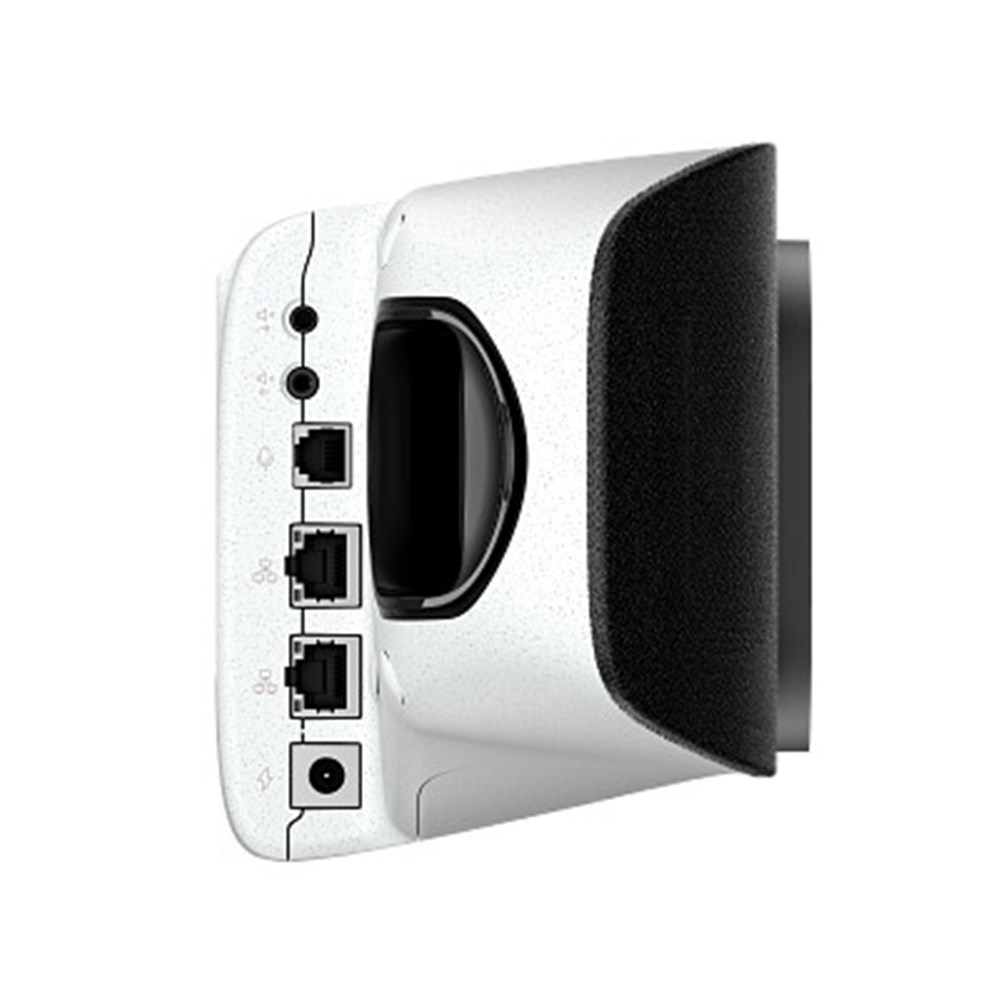

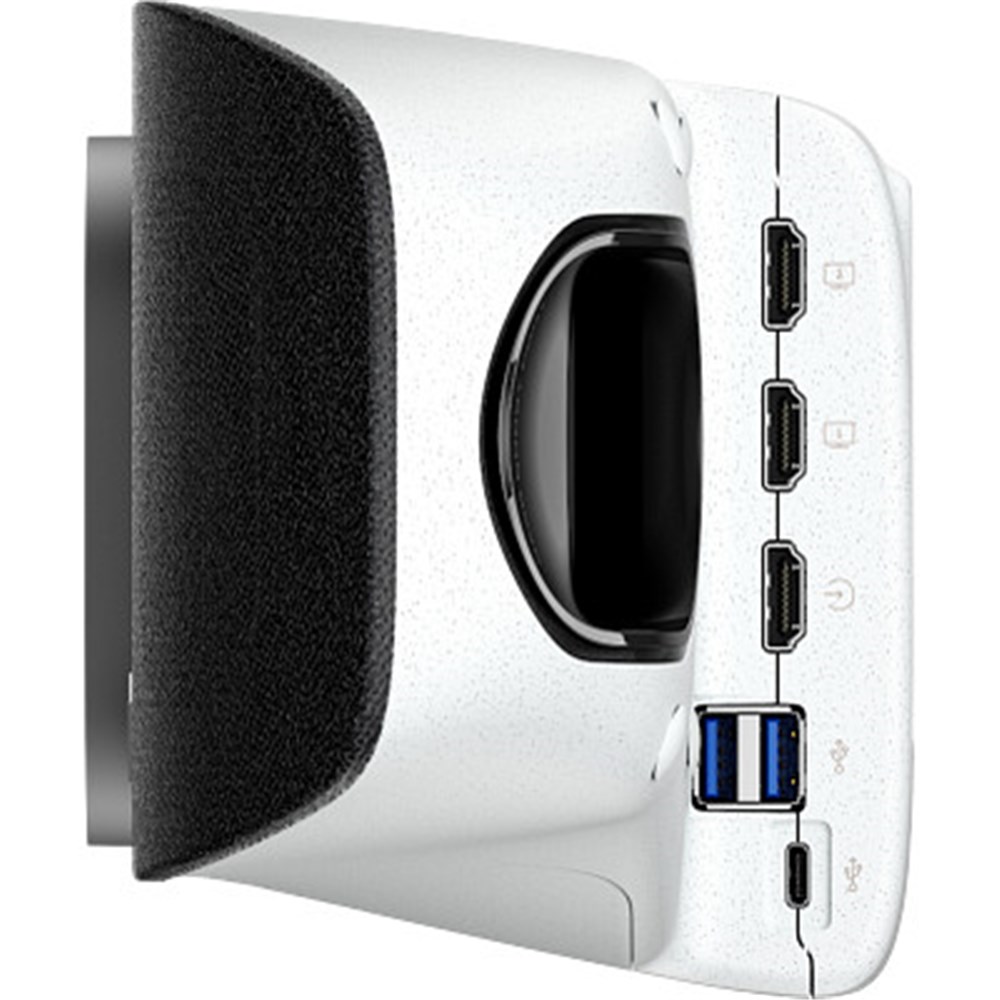

| Ports |
1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 1 line in; 1 line out; 1 line in (optional microphone); 2 HDMI-out 2.0 (video, 4K @ 30 Hz); 1 HDMI-in 1.4 (video and audio, 4K @ 30 Hz) |
| Power supply type |
External; Auto sensing |
| Registration required |
No |
| RMN number |
PATX-STX-72R |
| Security management |
AES 128 bits encryption; AES 256 bits encryption; Media encryption (H.323, SIP); H.235.6 support; Authenticated access to admin menus, web interface, and APIs; BFCP; Local account password policy configuration; Security profiles; Secure defaults; Remote logging with support for TLS; Active directory external authentication |
| Sensitivity (speaker) |
83 dB (mid speakers); 89 dB (tweeter speakers) |
| Smart camera technology |
Poly DirectorAI with speaker framing, people framing, group framing |
| Speaker output power |
2 x 20 W (RMS for mid speakers); 2 x 30 W (maximum for mid speakers); 2 x 15 W (RMS for tweeter speakers); 2 x 20 W (maximum for tweeter speakers) |
| Speaker type |
Two-way dual speakers |
| Sustainable impact specifications |
Contains recycled plastics; Paper-based packaging derived from at least 60% recycled materials |
| Total camera resolution (megapixels) |
2 x 20 MP |
| UNSPSC code |
45111902 |
| UPC number |
1.98415E+11 |
| Video frame rate |
5–30 fps (up to 4K resolution at 15 fps in call) |
| Video standards |
H.264 AVC; H.264 High Profile; H.265 |
| Weight |
3300 g |
| What's in the box |
Wall mount kit; 2 HDMI cable; AC power adapter; Power cable; Poly Studio X72 |
| Wireless technologies |
Bluetooth® 5.0; Wi-Fi 802.11a/b/g/n/ac/ax (MIMO) Multi-channel Concurrency |
| Zoom capability |
7.3x digital |
