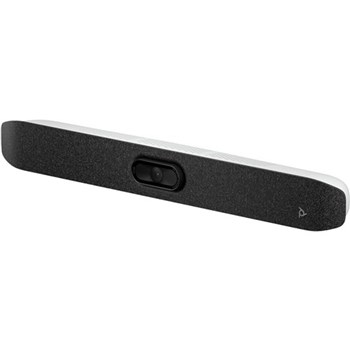

Poly Studio V12 USB Video Bar No Power Supply
The Poly Studio V12 USB video bar has you covered for successful conferencing in any small room. Users will feel empowered when walking into BYOD rooms with superior AI-driven AV capabilities, simple deployment and centralized management.
A smarter way to collaborate
Equip your small meeting spaces with a USB video bar that boasts a 20MP 120° FOV camera built with impressive image quality. Smart camera and audio technology power meeting equity, ensuring a smoother hybrid meeting.
Small room, simple setup
Simplify deployment by choosing a power method that fits into your room. Compatible with leading platforms and equipped with built-in speaker, microphone, and camera, this video bar is quick to set up and easy to use.
Enterprise-grade management
Poly Lens remote device management gives you better visibility into workspaces across the entire organization. With multiple ways to manage, IT professionals can remotely monitor, update, and troubleshoot Poly devices on their own terms.
Built for a better tomorrow
Containing at least 65% recycled plastics[1] and shipped in paper-based packaging[2], this USB video bar enables more impactful meetings in small rooms with less impact on the environment.
[1] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT standard for computers, IEEE 1680.1-2018 standard.
[2] Percent of paper-based packaging made from sustainably sourced, certified, and recycled fibers.
KEY SPECIFICATIONS
|
Audio
|
Poly NoiseBlockAI technology; Poly Acoustic Fence technology; Automatic gain control (AGC)
|
|
Camera resolution
|
2160p, 4K UHD (3840 x 2160)
|
|
Camera type
|
Single-lens
|
|
Certified collaboration software
|
Microsoft Teams; Zoom; Works with Chromebook
|
|
Color
|
White
|
|
Country of origin
|
Vietnam(UUZ, ABT, ABB, ABJ, ABG, AC4, AB2, ABA, ACJ, AB1, ABU, UUF, AC3)
|
|
Diagonal field of view (dFoV)
|
132°
|
|
Dimensions (W x D x H)
|
6.7 x 57.7 x 7.8 cm
|
|
Horizontal field of view (hFoV)
|
120°
|
|
Interoperability
|
Google Meet, Microsoft Teams, Zoom certified; USB Device mode
|
|
Lens cover capabilites
|
Attachable
|
|
Management Software
|
Poly Lens
|
|
Manufacturer Warranty
|
Poly standard one-year limited warranty
|
|
Material Type for item
|
FERT
|
|
Microphone pickup range (metric)
|
Up to 4.57 m
|
|
Microphone type
|
Four digital MEMS
|
|
Multiple order quantity
|
1
|
|
Network capabilities
|
1x 10/100/1G Ethernet
|
|
Non-Operating Humidity Range
|
5 to 95%
|
|
Non-operating temperature - Celsius
|
-40 to 70 °C
|
|
Operating altitude
|
4,877 m
|
|
Operating humidity range
|
15 to 80%
|
|
Operating temperature range
|
0 to 40 °C
|
|
Operating voltage
|
100 - 240 VAC @ 50/60 Hz
|
|
Package dimensions (W x D x H)
|
18.7 x 66.7 x 11.4 cm
|
|
Package weight
|
2.81 kg
|
|
Physical security
|
Standard Kensington lock slot
|
|
Ports
|
2 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 1 RJ-45 (10/100/1000 Mbps) Ethernet interface (supporting PoE++ power supply)
|
|
Power
|
Power over Ethernet (PoE++) injector with power cord or USB Type-C® power adapter with power cord
|
|
Power supply type
|
External
|
|
Registration required
|
No
|
|
RMN number
|
PATX-STV-12R
|
|
Sensitivity (speaker)
|
80 dB (1 W/1 m)
|
|
Signal-to-noise ratio
|
65 dB
|
|
Smart camera technology
|
Poly DirectorAI with speaker framing, people framing, group framing
|
|
Speaker bandwidth
|
100 Hz to 20 kHz
|
|
Speaker output power
|
2 x 5 W
|
|
Speaker type
|
Stereo speakers
|
|
Special features
|
Phoenix connector for mic expansion; Removable privacy cap
|
|
Sustainable impact specifications
|
Contains at least 65% post-consumer recycled plastic; Paper-based packaging
|
|
Total camera resolution (megapixels)
|
20 MP
|
|
UNSPSC code
|
45111902
|
|
UPC number
|
1.98416E+11
|
|
Video frame rate
|
30 fps
|
|
Video standards
|
UVC 1.1 and up
|
|
Weight
|
1.35 kg
|
|
What's in the box
|
Quick start guide; Removable privacy cap; Removable monitor clamp; Poly Studio V12; USB Type-C® cable (1.83 m); Ethernet cable (2 m)
|
|
Wireless technologies
|
Wi-Fi 802.11a/b/g/n/ac; Bluetooth® 5.0
|
|
Zoom capability
|
5x digital
|
[1] USB Type-A ports will only support mouse and keyboard peripherals.
[2] Sold separately.
[3] The expansion microphone will not be launched at the same date with Poly Studio V12, but at a later date.
[4] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT standard for computers, IEEE 1680.1-2018 standard.
[5] Percent of paper-based packaging made from sustainably sourced, certified, and recycled fibers.
[6] Requires downloadable software on Poly.com/lens. Host PC requires Windows 10 or higher.
[7] Compatibility with native applications and meeting services is limited by each 3rd party service’s own terms and certification conditions; consult each service provider's terms as needed.
