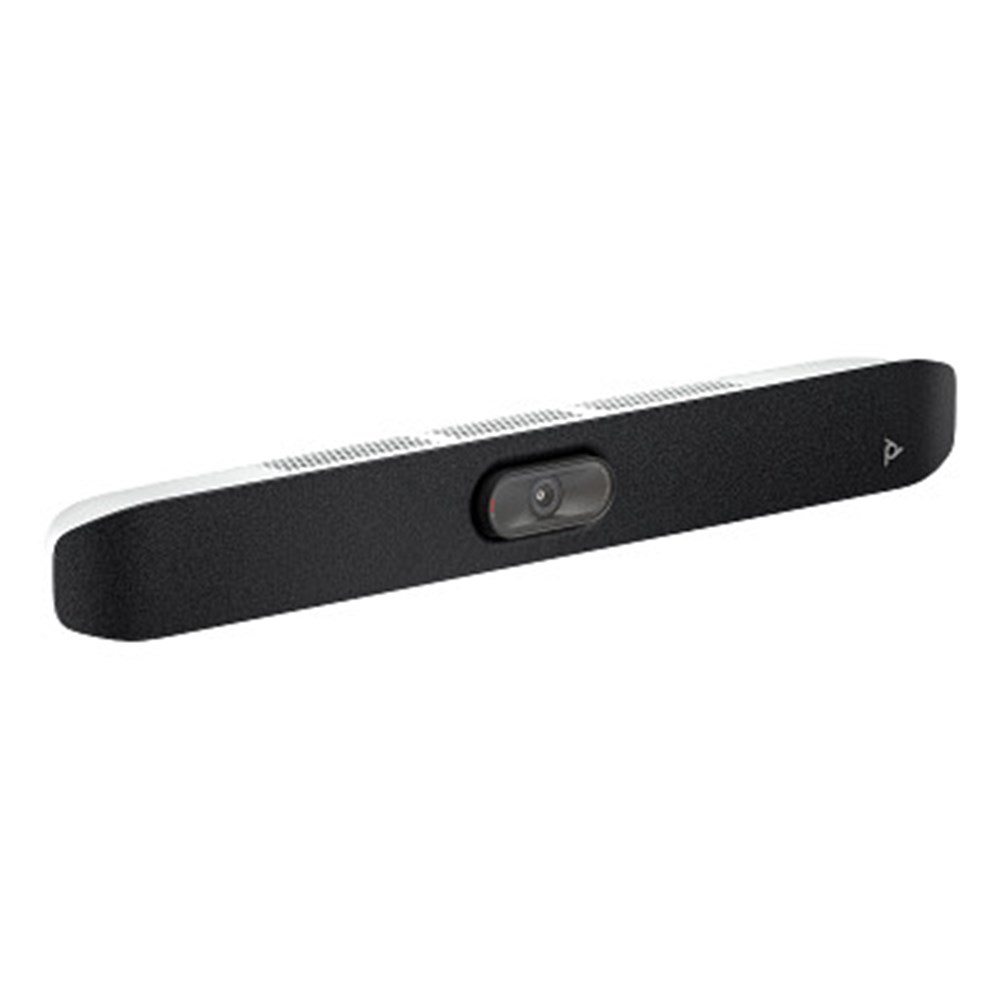

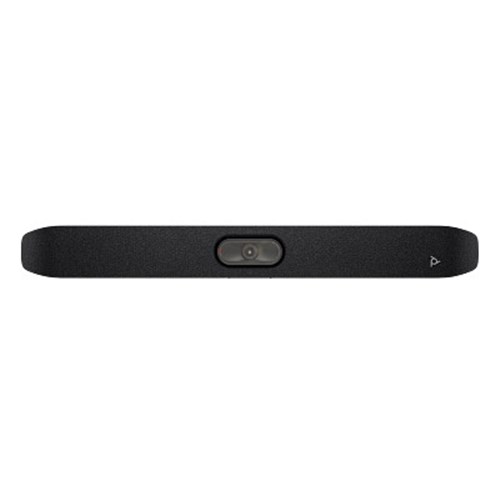

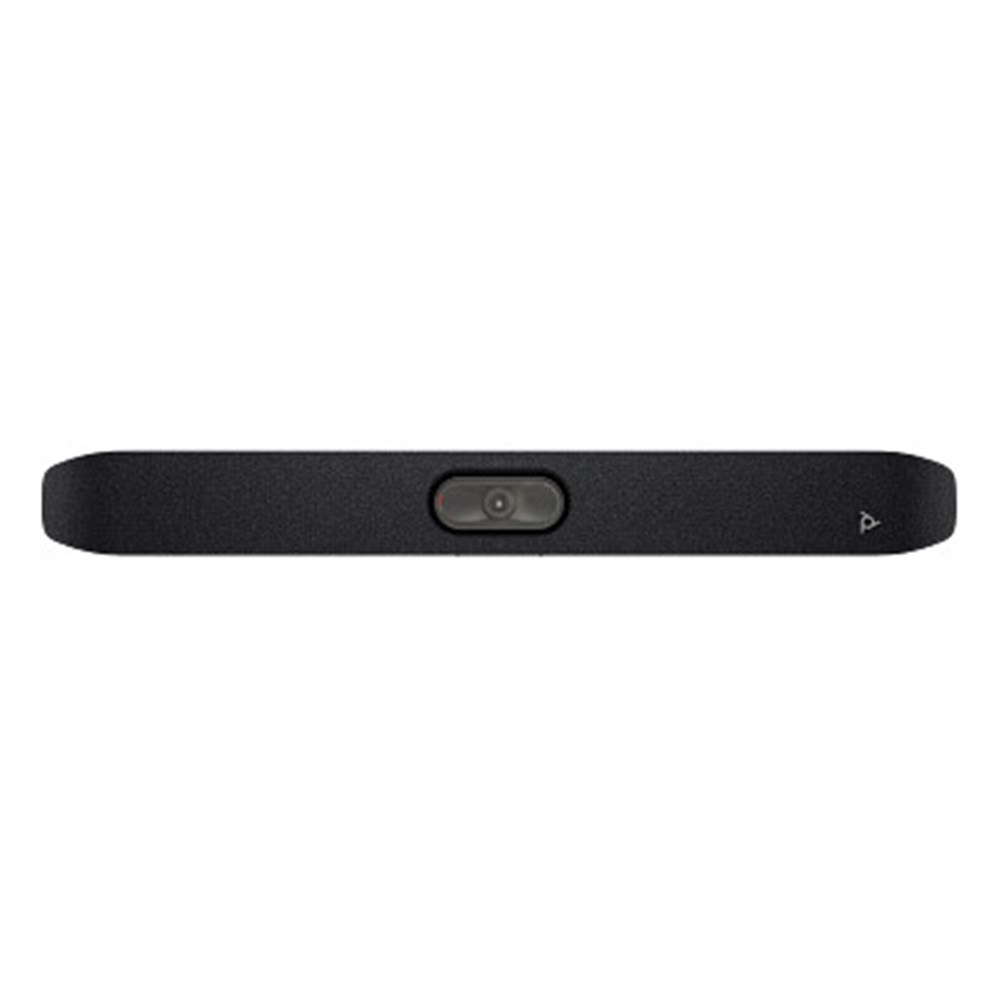

Poly Studio X32 All-In-One Video Bar No Power Supply TAA
Small rooms, big conversations. Simplify the moment with the all-in-one Poly Studio X32 video bar. Deliver an immersive and inclusive experience with advanced audio and video AI technology and connect instantly with built-in video conferencing apps.
Focus. Clarity. Connection
When everyone feels seen and heard, ideas flourish — even in small rooms. Poly audio and video innovations deliver an immersive meeting experience that keeps the focus solely on participants. No distractions, just effortless collaboration.
All-in-one and ready to go
Intimate huddles are about connecting with people, not fumbling with cables. Simplified one-touch join means you get a familiar and consistent user experience on nearly all the leading cloud video services.
Maximize meeting time, minimize setup
Streamline your conferencing experience with this PoE-enabled all-in-one video bar, purposely built for smaller spaces. Enjoy flexible configuration options and easy management through Poly Lens.
Built for a better tomorrow
Containing at least 50% recycled plastics[1] and shipped in paper-based packaging[2], this all-in-one video bar enables more impactful meetings in small rooms with less impact on the environment.
[1] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT standard for computers, IEEE 1680.1-2018 standard.
[2] Percent of paper-based packaging made from sustainably sourced, certified, and recycled fibers.
KEY SPECIFICATIONS
|
Audio
|
Poly NoiseBlockAI technology; Poly Acoustic Fence technology; Automatic gain control (AGC)
|
|
Audio standards
|
22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A
|
|
Camera resolution
|
2160p, 4K UHD (3840 x 2160)
|
|
Camera type
|
Single-lens
|
|
Certified collaboration software
|
Microsoft Teams; Zoom
|
|
Color
|
Black
|
|
Content sharing
|
Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input
|
|
Content video resolution (input)
|
UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600)
|
|
Content video resolution (output)
|
UHD (3840 x 2160); HD (1280 x 720); QHD (2560 x 1440); FHD (1920 x 1080); SD (640 x 360)
|
|
Country of origin
|
Mexico(AC3, ABA)
|
|
Diagonal field of view (dFoV)
|
132°
|
|
Digital signage
|
Appspace; Raydiant
|
|
Dimensions (W x D x H)
|
576.8 x 66.1 x 74.8 mm
|
|
Heat dissipation cooling
|
55 BTU/h
|
|
Horizontal field of view (hFoV)
|
120°
|
|
Interoperability
|
Microsoft Teams, Zoom certified; All cloud service providers through Poly Video App mode; USB Device mode
|
|
Lens cover capabilites
|
Attachable
|
|
Management Software
|
Poly Lens
|
|
Manufacturer Warranty
|
Poly standard one-year limited warranty
|
|
Material Type for item
|
FERT
|
|
Microphone pickup range (metric)
|
Up to 4.5 m
|
|
Microphone type
|
Four MEMS microphones
|
|
Multiple order quantity
|
1
|
|
Network capabilities
|
IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP)
|
|
Non-Operating Humidity Range
|
5 to 95%
|
|
Non-operating temperature - Celsius
|
-40 to 70 °C
|
|
Operating altitude
|
4,877 m
|
|
Operating humidity range
|
15 to 80%
|
|
Operating temperature range
|
32 to 104 °F
|
|
Operating voltage
|
42.5 V - 57 V
|
|
Package dimensions (W x D x H)
|
118 x 194 x 667 mm
|
|
Package weight
|
3000 g
|
|
People video resolution
|
4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 30 fps from 512 Kbps
|
|
Physical security
|
Standard Kensington lock slot
|
|

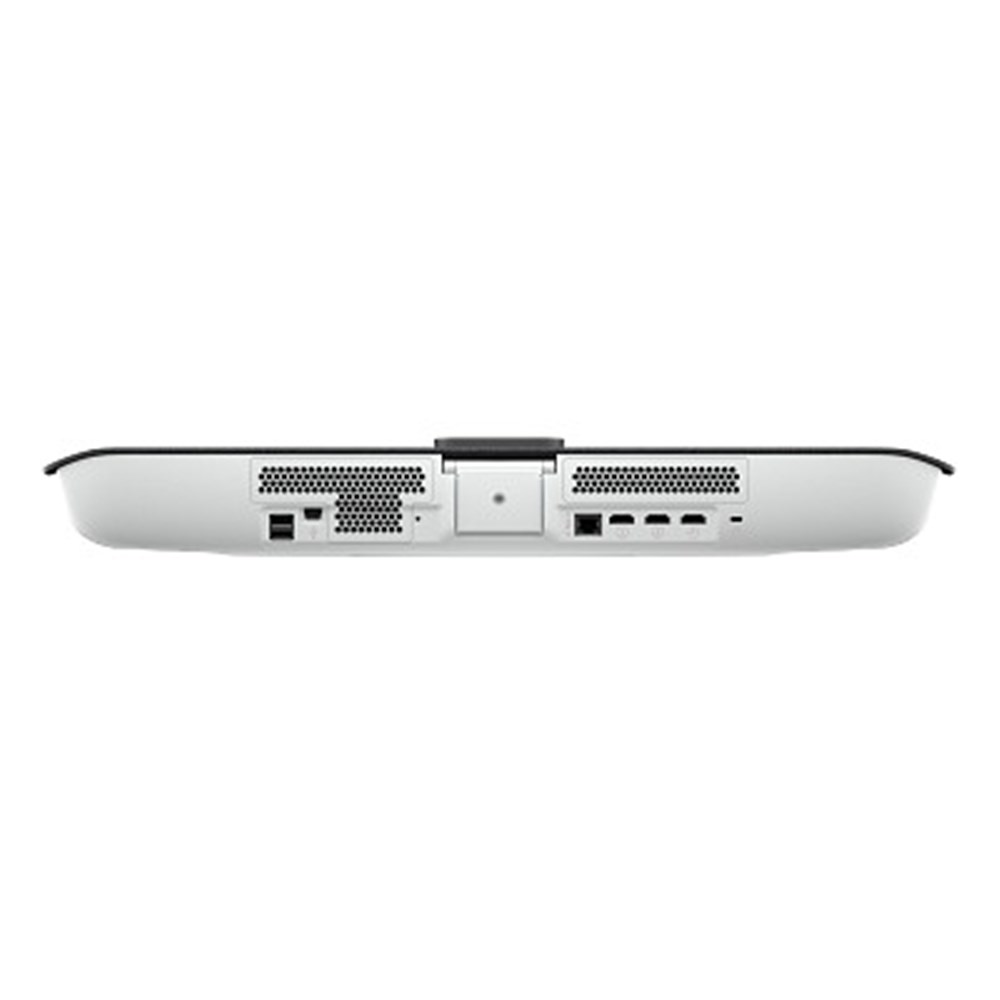

Ports
|
1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 1 HDMI-in 1.4 (video and audio); 2 HDMI-out 2.0 (video); 1 RJ-45 (10/100/1000 Mbps) Ethernet interface (supporting PoE++ power supply)
|
|
Power
|
Power over Ethernet (PoE++) injector or switch, compatible with IEEE 802.3bt class 6
|
|
Power supply type
|
External
|
|
Registration required
|
No
|
|
RMN number
|
PATX-STX-32R
|
|
Security management
|
AES 128 bits encryption; AES 256 bits encryption; Media encryption (H.323, SIP); H.235.6 support; Authenticated access to admin menus, web interface, and APIs; BFCP; Local account password policy configuration; Security profiles; Secure defaults; Remote logging with support for TLS; Active directory external authentication
|
|
Sensitivity (microphone)
|
-26 dB FS/Pa
|
|
Sensitivity (speaker)
|
77 dB (1 W/1 m)
|
|
Signal-to-noise ratio
|
63 dB
|
|
Smart camera technology
|
Poly DirectorAI with speaker framing, people framing, group framing
|
|
Speaker bandwidth
|
100 Hz to 20 kHz
|
|
Speaker output power
|
2 x 5 W
|
|
Speaker type
|
Dual speakers
|
|
Special features
|
Auto sensing power supply
|
|
Sustainable impact specifications
|
Contains at least 50% recycled plastic content; Fabric contains 100% recycled PET; Paper-based packaging derived from at least 70% recycled materials
|
|
Total camera resolution (megapixels)
|
20 MP
|
|
UNSPSC code
|
45111902
|
|
UPC number
|
1.98415E+11
|
|
Video frame rate
|
6.25–30 fps (up to 4K resolution at 15 fps in call)
|
|
Video standards
|
H.264 AVC; H.265
|
|
Weight
|
1140 g
|
|
What's in the box
|
Ethernet cable; Privacy cover; HDMI cable; Display mounting clamp; Poly Studio X32
|
|
Wireless technologies
|
Wi-Fi 802.11a/b/g/n/ac/ax (MIMO) Multi-channel Concurrency; Bluetooth® 5.0
|
|
Zoom capability
|
5x digital
|
[1] TAA, JITC and no radio versions available.
[2] Recycled plastic is expressed as a percentage of the total weight plastic. Post-consumer recycled is based on the definition set in the EPEAT standard for computers, IEEE 1680.1-2018 standard.
[3] Percent of paper-based packaging made from sustainably sourced, certified, and recycled fibers.
[4] Requires downloadable software on Poly.com/lens. Host PC requires Windows 10 or higher.
[5] Compatibility with native applications and meeting services is limited by each 3rd party service’s own terms and certification conditions; consult each service provider's terms as needed.
