Audio
|
Poly NoiseBlockAI technology; Poly Acoustic Fence technology
|
|
Audio standards
|
22 kHz with Polycom Siren 22 technology; 20 kHz with G.719 (M- Mode) and Polycom Siren 22 technology; 14 kHz with Polycom Siren 14 technology, G.722.1 Annex C; 7 kHz with G.722, G.722.1; 3.4 kHz with G.711, G.728, G.729A
|
|
Camera resolution
|
2160p, 4K UHD (3840 x 2160)
|
|
Camera type
|
Dual-lens
|
|
Certified collaboration software
|
Zoom; Microsoft Teams; Google Meet
|
|
Content sharing
|
Apple AirPlay; Miracast; Digital Whiteboarding; HDMI input
|
|
Content video resolution (input)
|
UHD (3840 x 2160); HD (1920 x 1080); WSXGA+ (1680 x 1050); UXGA (1600 x 1200); SXGA (1280 x 1024); WXGA (1280 x 768); HD (1280 x 720); XGA (1024 x 768); SVGA (800 x 600)
|
|
Content video resolution (output)
|
UHD (3840 x 2160); WUXGA (1920 x 1200); HD (1920 x 1080); WSXGA+ (1680 x 1050); SXGA+ (1400 x 1050); SXGA (1280 x 1024); HD (1280 x 720); XGA (1024 x 768)
|
|
Country of origin
|
Made in Laos
|
|
Diagonal field of view (dFoV)
|
140° (wide); 78° (narrow)
|
|
Digital signage
|
Appspace; Raydiant
|
|
Dimensions (W x D x H)
|
840.18 x 135.38 x 117.33 mm
|
|
Heat dissipation cooling
|
65 BTU/h
|
|
Horizontal field of view (hFoV)
|
120° (wide); 70° (narrow)
|
|
Interoperability
|
Google Meet, Microsoft Teams, Zoom certified; Support for native 3rd party applications including Dialpad, GoToRoom, RingCentral and StarLeaf; All cloud service providers through Poly Video App mode; USB Device mode
|
|
Lens cover capabilites
|
Integrated
|
|
Management Software
|
Poly Lens
|
|
Manufacturer product number
|
7200-88155
|
|
Manufacturer Warranty
|
Poly standard one-year limited warranty
|
|
Material Type for item
|
FERT
|
|
Microphone pickup range (metric)
|
Up to 7.62 m
|
|
Microphone type
|
Two MEMS microphones; Two second-order microphones
|
|
Multiple order quantity
|
1
|
|
Network capabilities
|
IPv4; IPv6; 1x 10/100/1G Ethernet; Auto-MDIX; H.323 and/or SIP up to 6 Mbps in Poly App video mode; Polycom Lost Packet Recovery (LPR) technology; Dynamic bandwidth allocation; Reconfigurable MTU size; Web proxy support: basic, digest, and NTLM; Simple Certificate Enrollment Protocol (SCEP)
|
|
Non-Operating Humidity Range
|
5 to 95%
|
|
Non-operating temperature - Celsius
|
-40 to 70 °C
|
|
Operating altitude
|
4,877 m
|
|
Operating humidity range
|
15 to 80%
|
|
Operating temperature range
|
0 to 40 °C
|
|
Operating voltage
|
37 VA @ 120 V @ 60 Hz; 37 VA @ 230 V @ 50/60 Hz
|
|
People video resolution
|
4K, 30 fps (TX and RX) from 2048 Kbps; 1080p, 30 fps from 1024 Kbps; 720p, 30 fps from 512 Kbps
|
|
Physical security
|
Standard Kensington lock slot
|
|
Ports
|
1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 2 RJ-45; 1 audio-in; 1 audio-out; 2 HDMI-out 1.4 (video); 1 HDMI-in 1.4 (audio)
|
|
Power supply type
|
External; Auto sensing
|
|
Registration required
|
No
|
|
Security
|
AES 128 bits encryption; AES 256 bits encryption; H.235.6 support; Authenticated access to admin menus, web interface, and APIs; BFCP; Local account password policy configuration; Security profiles; Secure defaults; Media encryption (H.323, SIP); Remote logging with support for TLS
|
|
Security management
|
AES 128 bits encryption; AES 256 bits encryption; H.235.6 support; Authenticated access to admin menus, web interface, and APIs; Local account password policy configuration; Security profiles; Local account and login port lockout; Secure defaults; Remote logging with support for TLS; Active directory external authentication; Binary Floor Control Protocol (BFCP)
|
|
Sensitivity (speaker)
|
83 dB (1 W/1 m) for mid speakers; 89 dB (1 W/1 m) for tweeter speakers
|
|
Smart camera technology
|
People framing; Group framing; DirectorAI perimeter; Speaker framing
|
|
Speaker output power
|
2 x 20 W (RMS for mid speakers); 2 x 30 W (maximum for mid speakers); 2 x 15 W (RMS for tweeter speakers); 2 x 20 W (maximum for tweeter speakers)
|
|
Speaker type
|
Two-way dual speakers
|
|
Total camera resolution (megapixels)
|
2 x 20 MP
|
|
UNSPSC code
|
45111902
|
|
UPC number
|
1.97498E+11
|
|
Video frame rate
|
5–30 fps (up to 4K resolution at 15 fps in call)
|
|
Video standards
|
H.264 AVC; H.264 High Profile; H.265
|
|
Weight
|
3200 g
|
|
What's in the box
|

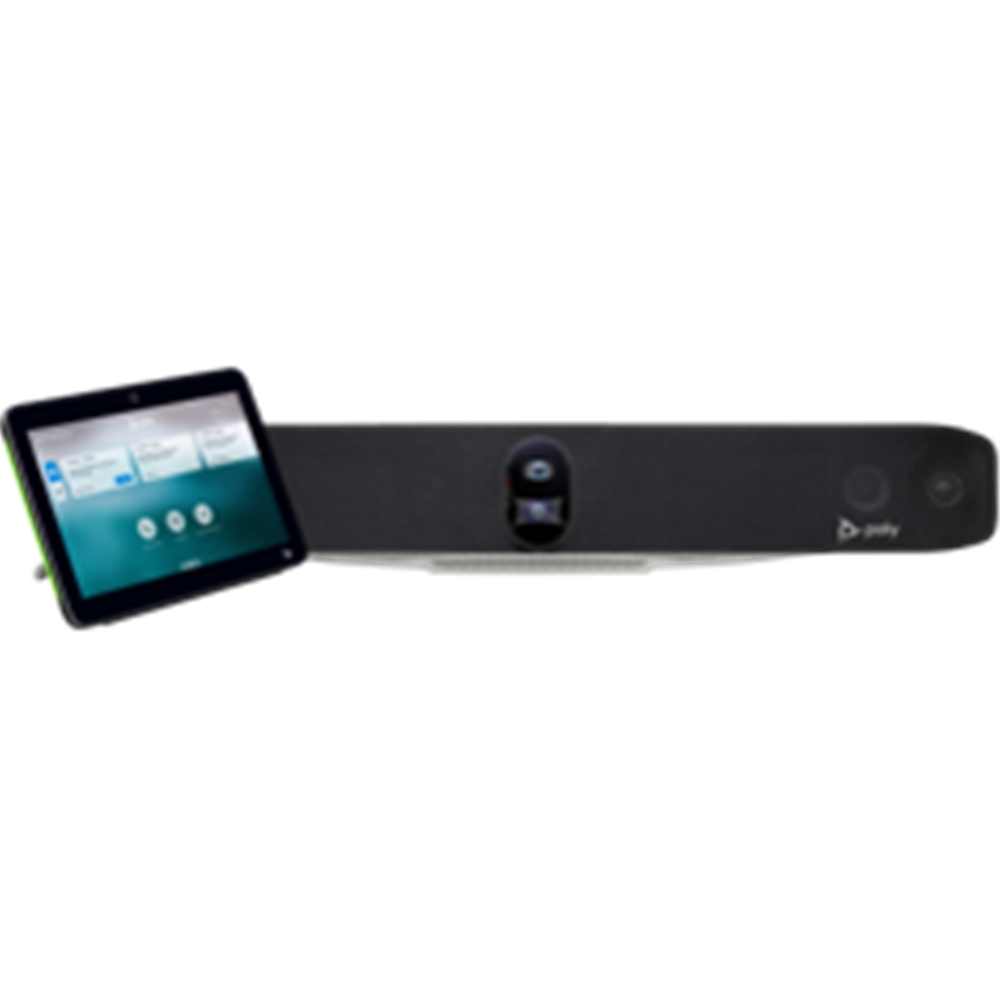

Poly Studio X70; Ethernet cable; Wall mount kit; 2 HDMI cable; AC power adapter
|
|
Zoom capability
|
7.3x digital
|
