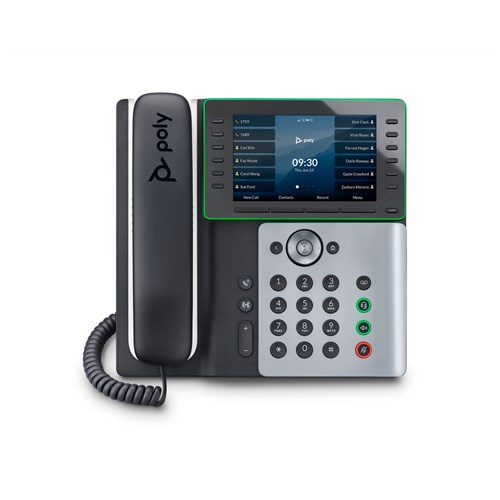

Poly Edge E500 IP Phone and PoE-enabled
This desk phone makes work easy. Built for hot-desking or the home office, these phones offer the perfect user experience. Two displays and 12-line keys give you more ways to connect, plus quality audio, in a seriously sharp package.
Built to grow
This workhorse phone is outfitted with a big 5-inch color display and is designed to handle up to 48 lines. What’s more, the Poly Edge E500 Series can take on two additional expansion modules, supporting up to 66 more contacts each.
Enterprise-quality sound
The Poly E400 Series offer quality audio with Poly HD voice and bass frequency enhancing speaker design. They reduce noise and distractions with Poly NoiseBlockAI and Acoustic Fence technologies.
[2] Poly headsets sold separately. Poly Electronic Hook Switch (EHS) sold separately.
[3] Plug up to 2 Poly Edge E expansion modules for up to 132 additional contacts on the Poly Edge E500 and Poly Edge E550 IP desk phones.
KEY SPECIFICATIONS
|
Aspect ratio
|
5:03
|
|
Audio
|
Poly HD Voice; Poly Acoustic Clarity technology provides full duplex conversations, acoustic echo cancellation, and background noise suppression; Poly Acoustic Fence technology eliminates background noise when using a handset or wired headset; Poly NoiseBlockAI technology removes most background noise when using the speakerphone; Poly Computer Audio Connector app installed on your PC (Windows only) enables selecting your phone for PC audio in/out to use the phones handset, optional headset and handsfree speakerphone with PC applications; Bass frequency enhancing design; TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex); Individual volume settings with visual feedback for each audio path; Voice activity detection; Comfort noise generation; DTMF tone generation (RFC 2833 and in-band); Low delay audio packet transmission; Adaptive jitter buffers
|
|
Audio codecs
|
G.711 (A-law and μ-law); G.722; G.729AB; iLBC; OPUS; G.722.1
|
|
Certifications and compliances
|
AS/NZS 60950.1; AS/NZS 62368.1; Australia RCM; Brazil ANATEL; CAN/CSA C22.2 No. 62368-1-14; CE Mark; CISPR22 Class B; EN55024; EN55032 Class B; EN 60950-1 & EN 62368-1; EN61000-3-2, EN61000-3-3; FCC Part 15 (CFR 47) Class B; IEC 60950-1 & IEC 62368-1; ICES-003 Class B; NZ Telepermit; ROHS compliant; Saudi Arabia CITC; So. Africa ICASA; So. Korea KC; UAE TRA; UL 62368-1; VCCI Class B; Eurasian Customs Union EAC; Indonesia SDPPI; Mexico NOM ANCE; TAA; UK - UKCA
|
|
Color
|
White; Midnight blue
|
|
Country of origin
|
Made in China
|
|
Display features
|
Lightbar status indicator (RGB with color mixing)
|
|
Display size (diagonal)
|
12.7 cm (5")
|
|
ECCN
|
5A992
|
|
Energy star certified
|
ENERGY STAR® certified
|
|
Headset and handset compatibility
|
Compatible with commercially available TTY adapter equipment; Compliant with ADA Section 508 Subpart B 1194.23 (all); Hearing aid compatibility to ITU-TP.370 and TIA 504A standards; Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids; USB Type-C® headset support
|
|
Headset ports
|
1 RJ-9; 1 Electronic Hook Switch (EHS) port for optional APP-51 adapter
|
|
HTS code
|
8517180020
|
|
Management Software
|
Poly Zero Touch Provisioning; Poly Lens; Polycom Device Management Service for Service Providers (PDMS-SP) Cloud Management; SDP
|
|
Manufacturer product number
|
2200-87855-025
|
|
Manufacturer Warranty
|
Poly standard one-year limited warranty
|
|
Material Type for item
|
FERT
|
|
Multiple order quantity
|
5
|
|
Native resolution
|
800 x 480
|
|
Network protocols, supported
|
DHCP VLAN discovery; LLDP-MED for VLAN discovery; FTP/TFTP/HTTP/HTTPS server-based central provisioning; Hardware diagnostics; Manual or dynamic host configuration protocol (DHCP) network setup; Network address translation support for static configuration and Keep-Alive; QoS Support — IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS, and DHCP; Status and statistics reporting; Syslog Event Logging; Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment; Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation; Time and date synchronization using SNTP; RTCP and RTP support; IPv4; IPv6; Provisioning and call server redundancy support; DNS-SRV; UDP; SIP protocol support; IETF SIP (RFC 3261 and companion RFCs)
|
|
Operating humidity range
|
5 to 95%
|
|
Operating temperature range
|
0 to 40°C
|
|
Package dimensions (W x D x H)
|
1
|
|
Package weight
|
300 g
|
|
Panel technology
|
Color IPS LCD
|
|
Ports
|
1 USB 2.0 Type-C® (for media, storage applications, headset, expansion module); 2 RJ-45 (10/100/1000BASE-TX Mbps)
|
|
Power
|
13 W (maximum); Built-in auto-sensing IEEE 802.3af Power over Ethernet (Class 4)
|
|
Registration required
|
No
|
|
Security management
|
802.1X Authentication and EAPOL Media encryption via SRTP; Digest authentication; Encrypted configuration files; HTTPS secure provisioning; Password login; Support for signed software executables; Support for URL syntax with password; Transport Layer Security (TLS); SRTP media encryption using AES 256 bits
|
|
Special features
|
Unicode UTF-8 character support; Adjustable desk stand (2 positions)
|
|
Storage temperature range
|
-40 to 70°C
|
|
Telephony and call handling features
|
4 context-sensitive soft keys; 4 way navigation key cluster with center Select key; Bundled with Polycom UC Software: Corporate Directory Access using LDAP; Busy Lamp Field (BLF); Call timer and call waiting; Call transfer, hold, divert (forward), park, pickup; Called, calling, connected party information; Calling Party Identification (RFC8225 classifications — Trusted, Unknown, SPAM); Distinctive incoming call treatment/call waiting; Do not disturb function; Electronic hook switch capable; Enhanced Feature Keys make powerful feature shortcuts online key appearances or soft keys; Headset select key (illuminated when selected); Hold and transfer keys; Home and back feature keys; Local three-way audio conferencing; Local configurable digit map/dial plan; Mute key (illuminated when muted); One-touch speed dial, redial; Pagination key for additional lines/contacts; Remote missed call notification; Reverse number lookup via LDAP; Shared call/bridged line appearance; Speakerphone select key (illuminated when selected); Supports Polycom Apps SDK and API for third- party business and personal application; Visual Conference Management; Voicemail key; Volume +/- control keys; Flexible line appearance (one or more line keys can be assigned for each line extension); 12 line keys supporting up to 48 line key assignments for lines, contacts, and features with pagination
|
|
UNSPSC code
|
43191511
|
|
VoIP features
|
12 line keys supporting up to 34 SIP lines with pagination
|
|
What's in the box
|
Setup sheet; Console; Network (LAN) cable-CAT-5E; Desk stand; Handset cord; Handset
|
|
Wireless technologies
|
NFC
|
[1] Most software-enabled features must be supported by the service provider platform. Please contact your IP PBX/softswitch vendor or service provider for a list of supported features.
[2] External universal AC/DC adapter, 5 VDC, 3 A, 15 W (sold separately). Power supply unit (PSU) sold separately.
[3] NFC-enabled Edge E series phones allow third-party applications to read serial number and other device information that can be useful in application development such as guest login for phone hoteling.
[4] Ordering an optional power supply unit will be necessary if not powered over ethernet with PoE (i.e. using Wi-Fi for network).
[5] Optional wall mount kit can be ordered separately.
