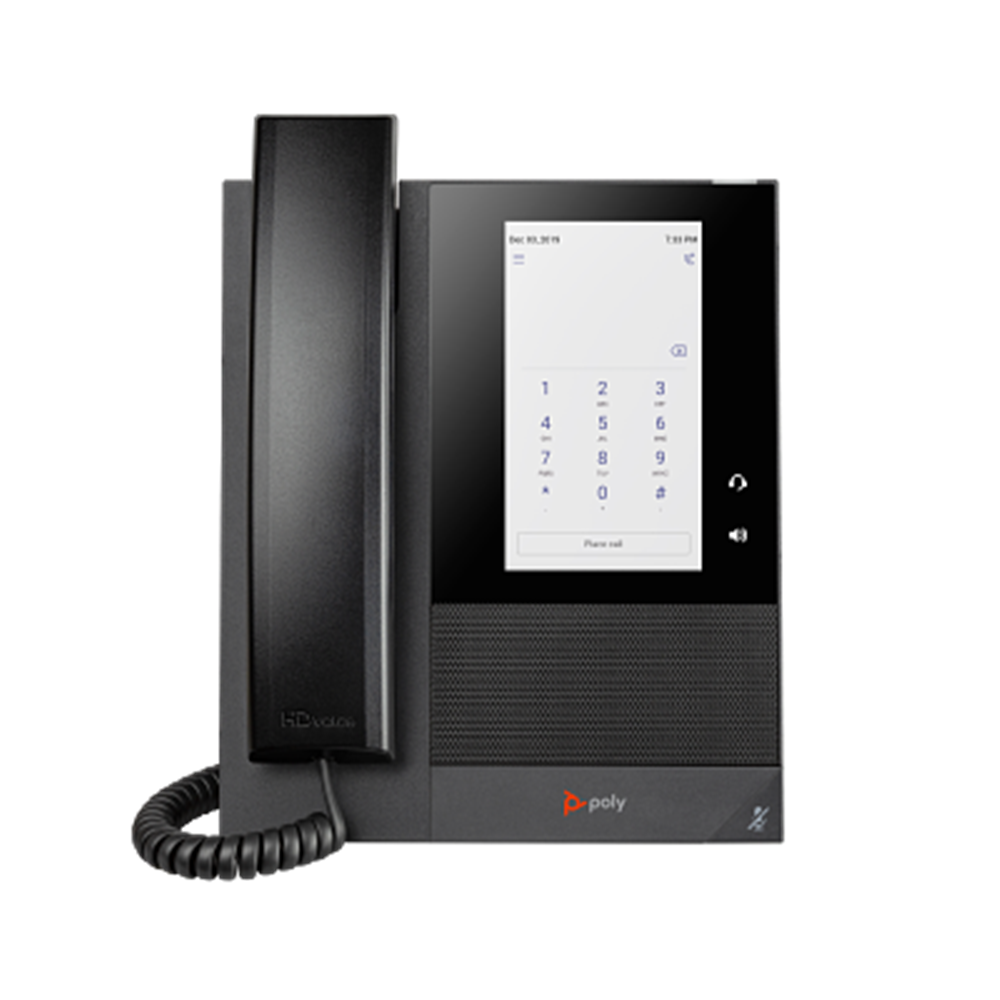

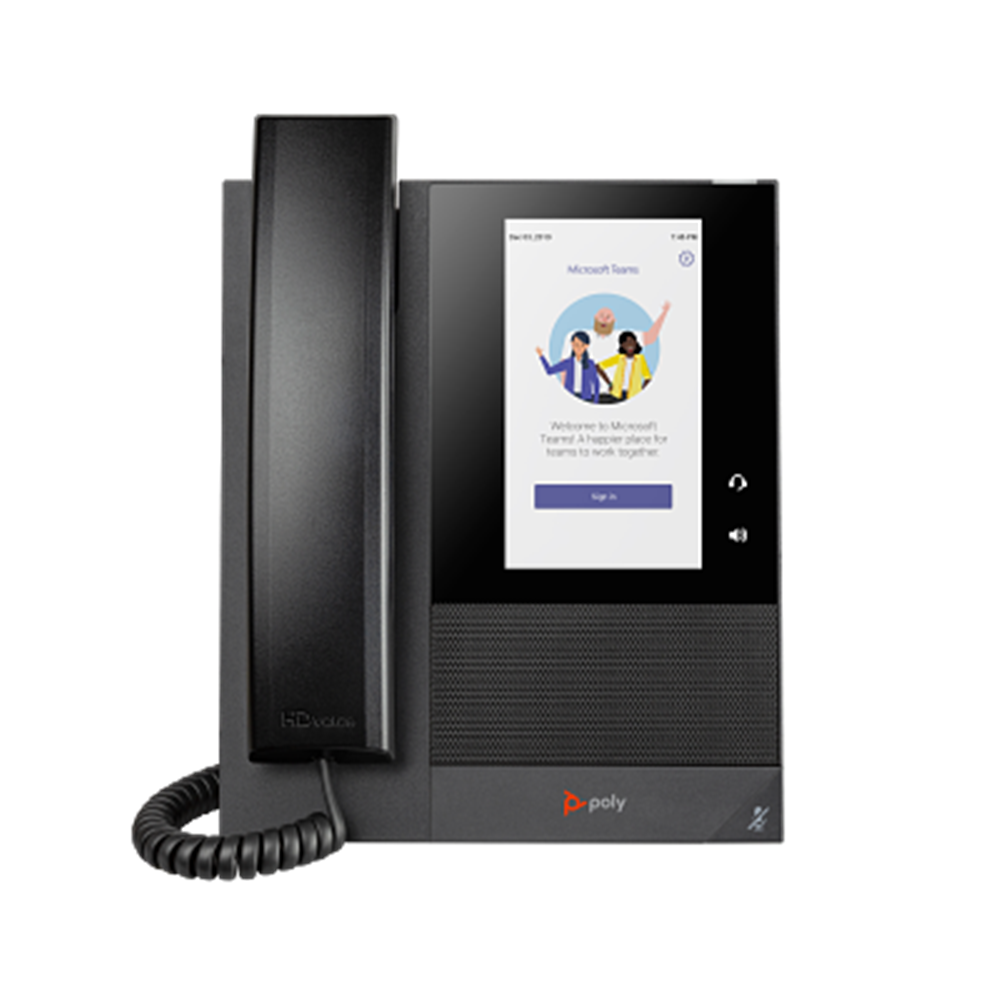

Poly CCX 400 Business Media Phone for Microsoft Teams and PoE-enabled
The Poly CCX 400 is an entry-level business phone that’s easy to use. Its interface is simple and intuitive. And contacts and meetings are one swipe or one tap away on a color touch screen.
Sound your best
Hear every nuance with Poly HD Voice and Poly Acoustic Clarity technologies. Poly Acoustic Fence technology reduces distracting background noise and makes calling a pleasure.
Stylish, ultra-usable design
Enjoy the ergonomic design and the intuitive user touchscreen interface that saves you the hassle of learning new features and functions. When a phone is this easy, better collaboration and productivity aren’t far behind.
KEY SPECIFICATIONS
|
Aspect ratio
|
9:16
|
|
Audio
|
Poly HD Voice; Poly Acoustic Clarity technology provides full duplex conversations, acoustic echo cancellation, and background noise suppression; Poly Acoustic Fence technology eliminates background noise when using a handset or wired headset; Poly NoiseBlockAI technology removes most background noise when using the speakerphone; TIA-920 wideband audio, type 1 compliant (IEEE 1329 full duplex); Individual volume settings with visual feedback for each audio path; Voice activity detection; Comfort noise generation; DTMF tone generation (RFC 2833 and in-band); Low delay audio packet transmission; Adaptive jitter buffers
|
|
Audio codecs
|
G.711 (A-law and μ-law); G.722; G.722.1; G.729AB; iLBC; OPUS
|
|
Certifications and compliances
|
AS/NZS 62368-1-17; Australia RCM; Brazil ANATEL; CISPR22 Class B; EEA; CE Mark; EN55024; EN55032 Class B; EN 62368-1; FCC Part 15 (CFR 47) Class B; IEC 60950-1 & IEC 62368-1; ICES-003 Class B; Japan MIC/VCCI; NZ Telepermit; Saudi Arabia CITC; So. Africa ICASA; So. Korea KC; UL 62368-1; VCCI Class B; Canada ICES and NRTL; China RoHS 2.0; Indonesia SDPPI; Mexico NYCE; Russia Customs Union
|
|
Color
|
Black
|
|
Compatible Operating Systems
|
Android 12
|
|
Country of origin
|
Made in China or Taiwan
|
|
Display features
|
Adjustable font size selection (regular, medium, large); Screensaver; Voicemail support; Normal and dark mode; Digital picture frame
|
|
Display size (diagonal)
|
12.7 cm (5")
|
|
ECCN
|
5A992
|
|
Headset and handset compatibility
|
Compatible with commercially available TTY adapter equipment; Compliant with ADA Section 508 Subpart B 1194.23 (all); Hearing aid compatibility to ITU-TP.370 and TIA 504A standards; Hearing aid compatible (HAC) handset for magnetic coupling to hearing aids; USB Type-A headset support
|
|
Headset ports
|
1 RJ-9; 1 Electronic Hook Switch (EHS) port for optional adapter
|
|
HTS code
|
8517180020
|
|
Management Software
|
Poly Lens; Poly Zero Touch Provisioning; Polycom Device Management Service for Service Providers (PDMS-SP) Cloud Management; Web UI to device IP address
|
|
Manufacturer product number
|
2200-49700
|
|
Manufacturer Warranty
|
Poly standard one-year limited warranty
|
|
Material Type for item
|
FERT
|
|
Multiple order quantity
|
10
|
|
Native resolution
|
720 x 1280
|
|
Network protocols, supported
|
Manual or dynamic host configuration protocol (DHCP) network setup; 10/100/1000 Base-TX across LAN and PC ports; Conforms to IEEE802.3-2005 (Clause 40) for physical media attachment; Conforms to IEEE802.3-2002 (Clause 28) for link partner auto-negotiation; IPv6
|
|
Operating humidity range
|
5 to 95%
|
|
Operating temperature range
|
0 to 40°C
|
|
Package dimensions (W x D x H)
|
22.2 x 24.3 x 6.9 cm
|
|
Package weight
|
300 g
|
|
Panel technology
|
Color LCD
|
|

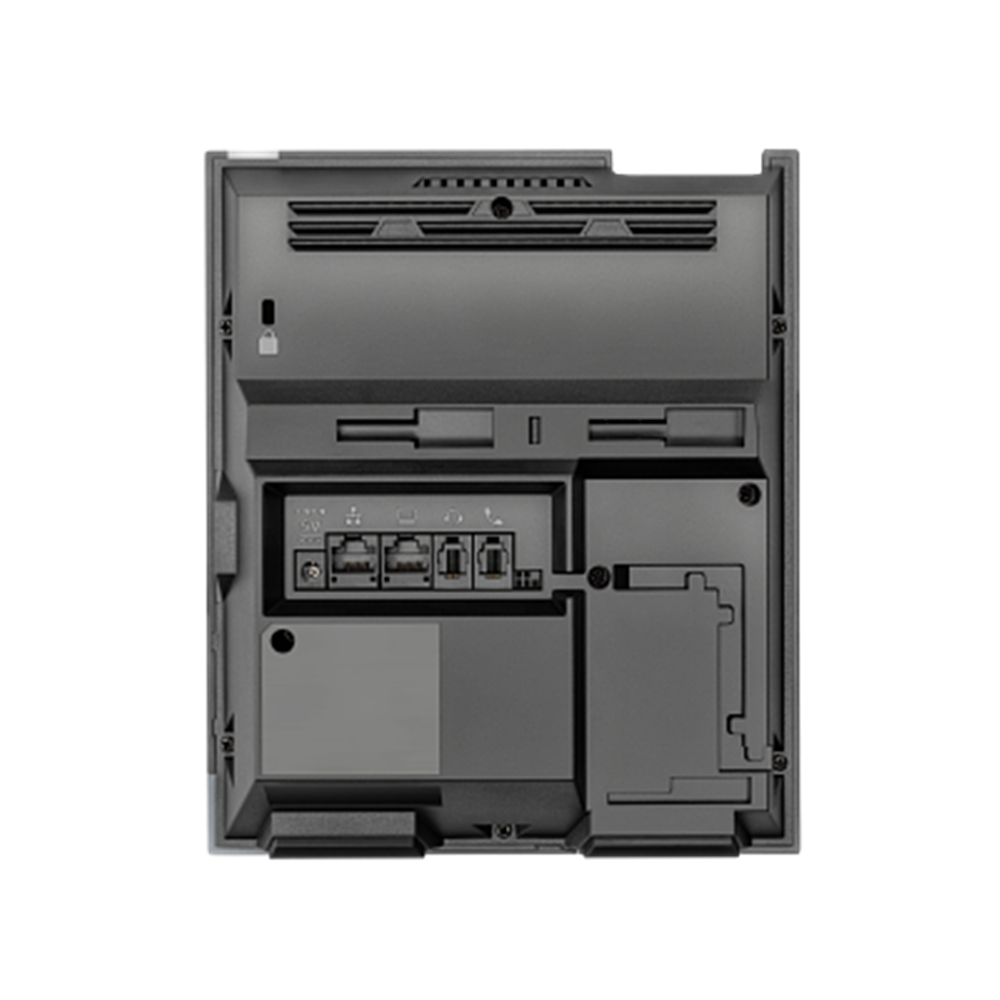

Ports
|
1 USB 2.0 Type-A (for media and storage applications); 2 RJ-45 (10/100/1000BASE-TX Mbps)
|
|
Power
|
Built-in auto sensing IEEE 802.3af Power over Ethernet (Class 0); 13 W (maximum)
|
|
Registration required
|
No
|
|
Security management
|
802.1X Authentication and EAPOL Media encryption via SRTP; Digest authentication; Encrypted configuration files; HTTPS secure provisioning; Password login; Support for signed software executables; Support for URL syntax with password; Transport Layer Security (TLS); SRTP media encryption using AES 256 bits
|
|
Special features
|
Unicode UTF-8 character support; Adjustable desk stand (2 positions)
|
|
Storage temperature range
|
-40 to 70°C
|
|
Telephony and call handling features
|
Busy Lamp Field (BLF); Call timer and call waiting; Caller ID enable/disable; Distinctive incoming call treatment/call waiting; Do not disturb function; One-touch speed dial, redial; Shared call/bridged line appearance; Automatic off-hook call placement (hot dialing); Call media recording/playback; Automatic/remote answer on headset using electronic hook-switch; Call hold/resume, diversion (forward), transfer (consultation, blind), pickup; Calling, called, connected party identification; Call forward for shared lines; Private hold for shared lines; Call logs (missed, received, placed); Local contact directory; Create local contact from call log; Corporate directory; Call server redundancy (failover); SBC line registration; Conference bridging; Local call forwarding (all, busy, no answer) with destination shown on idle display; Automatic call distribution (ACD); Automatic answer (intercom); Call park/retrieve; Directed call pickup; Group call pickup; Hunt group - sequential calling; Last call return; Auto-answer a page with a muted microphone; PTT and Multicast group; Exchange Calendar Integration; Flexible line keys; Key system emulation; STIR/SHAKEN Caller ID validation; Voice Quality Monitoring (VQMon)
|
|
Touch-enabled
|
Gesture-based, multi-touch capable touchscreen
|
|
UNSPSC code
|
43191515
|
|
UPC number
|
1.97498E+11
|
|
VoIP features
|
24 lines (SIP registrations); IETF SIP (RFC 3261 and companion RFCs)
|
|
What's in the box
|
Console; Desk stand; Handset with handset cord; Network (LAN) cable-CAT-5E; Setup sheet
|
[1] Most software-enabled features must be supported by the service provider platform. Please contact your IP PBX/softswitch vendor or service provider for a list of supported features.
[2] External universal AC/DC adapter, 5 VDC, 3 A, 15 W (sold separately).
